Tractor · 2003Unverified

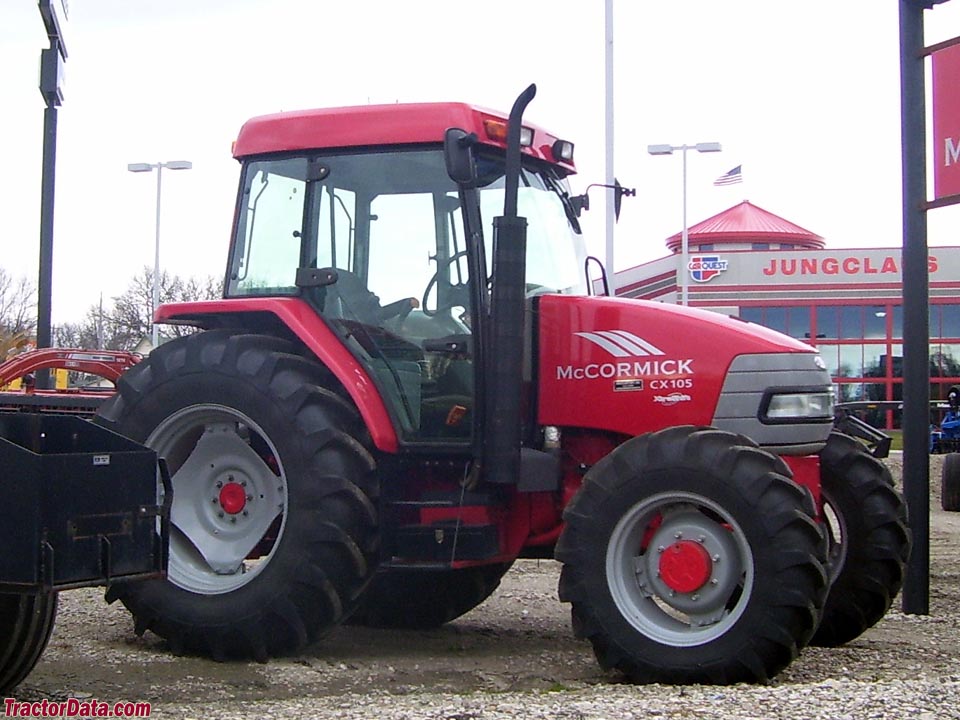

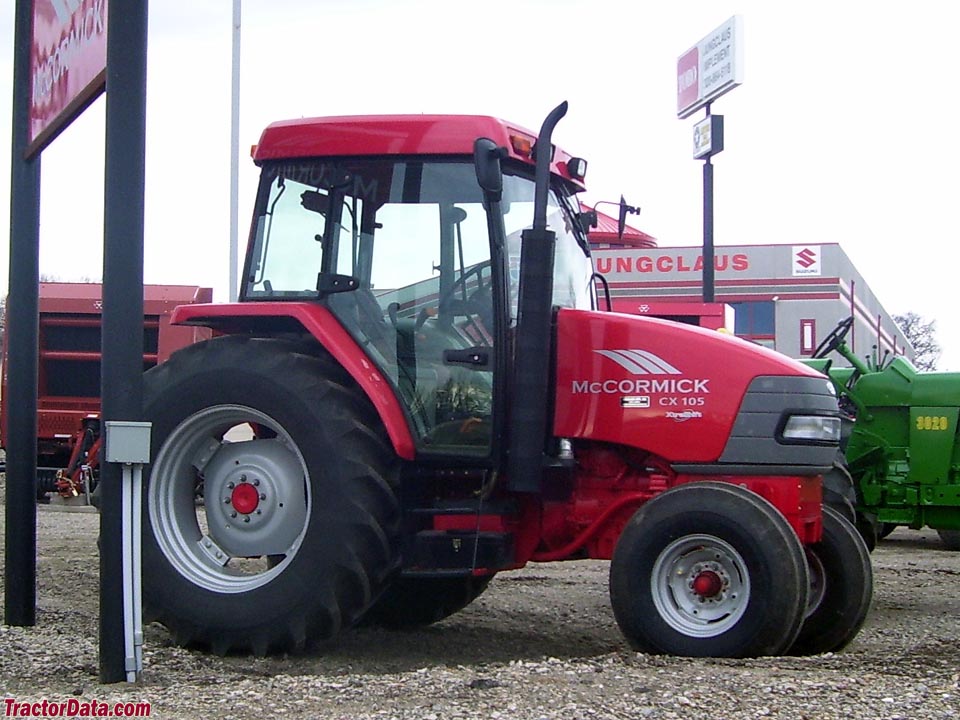

McCormick Intl CX105
McCormick Intl CX105 — CX Series · 102 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Max power
55.2 kW
Weight
3755 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
ROPS. Cab optional.Reference
Engine
Perkins 4.0L 4-cyl dieselReference
Perkins 4.4L 4-cyl dieselReference
Engine (net)76.1 kWReference
Engine76.1 kWReference
Drawbar (tested)55.2 kWReference
PerkinsReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
The Tier I engine was used from the start of the CX 05 series in 2003 until spring of 2004.Reference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
EmissionsTier IReference
Rated Power (net)76.1 kWReference
Compression17.25:1Reference
Rated RPM2200Reference
Torque402.1 NmReference
Starter volts12Reference
Perkins 1104Reference
liquid-cooled inlineReference
The Tier II Perkins 1104 was introduced in 2004 with the same horsepower rating as the original engine.Reference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier IIReference
Power76.1 kWReference
Power at rated engine speed64.3 kWReference
Max power55.2 kWReference
Transmission
24-speed partial power shiftReference
8-speed synchro shuttleReference
16-speed partial power shiftReference
TransmissionXtrashiftReference
Typepartial power shiftReference
Gears24 forward and reverseReference
Clutchwet discReference
Eight gears with a three-range power shift for each gear. Optional creeper provides 36 gears forward and reverse.Reference
Typesynchro shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Gears16 forward and 8 reverseReference
Four gears in two ranges with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)61.9 kWReference
PTO (tested)64.3 kWReference
Hydraulic system34.4 LReference
Hydraulic system36.7 LReference
Typeopen centerReference
Capacity34.4 LReference
Capacity36.7 LReference
Pump flow60.0 lpmReference
Rear lift3875 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2000Reference
Engine RPM1000@2000Reference
Power at rated PTO speed65.0 kWReference
Capacities
Fuel155.2 LReference
Dimensions
Wheelbase235 cmReference
Weight3755 kgReference
Front tire10.00-16Reference
Rear tire16.9R34Reference
Ag front10.00-16Reference
Ag front12.4R24 (4WD)Reference
Ag rear16.9R34Reference
Length421 cmReference
Height274 cmReference
Operating weight3755 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Test results
4L diesel 16-speed 4WDAugust 1 - September 1, 1998Link: OCED Tractor Test 1899 fileReference
PTO performanceReference
Fuel use21.6 l/hourReference
Fuel use20.4 l/hourReference
Drawbar performanceReference
Fuel use21.2 l/hourReference
Gear 3L-DD used for power test.Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
