Tractor · 2000Unverified

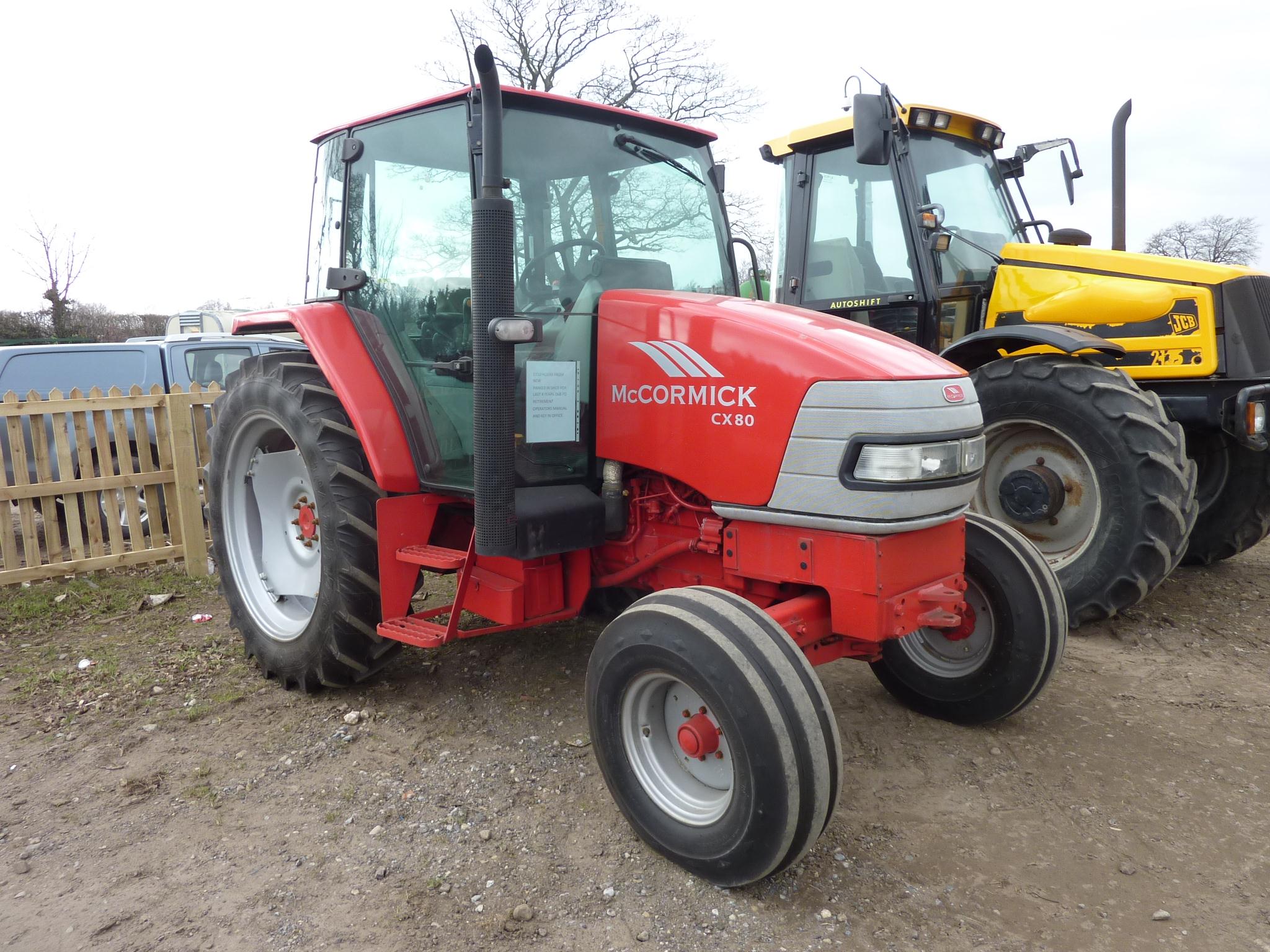

McCormick Intl CX80
McCormick Intl CX80 — CX Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
7397 to 8466 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available.Reference
Engine
Perkins 4.0L 4-cyl dieselReference
Fuel tank155.2 LReference
Engine62.6 kWReference
PerkinsReference
wastegate turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power62.6 kWReference
Rated RPM2200Reference
Torque325.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed two-speed power shiftReference
24-speed creeperReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch304mm dry discReference
TypecreeperReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Typeopen centerReference
SCV flow60.0 lpmReference
Rear TypeIIReference
Rear lift2957 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2000Reference
Engine RPM1000@2000Reference
Dimensions
2WD Wheelbase223 cmReference
4WD Wheelbase235 cmReference
Weight7397 to 8466 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9R34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9R34Reference
4WD Standard tires (ag)Front: 12.4R24. Rear: 16.9R34Reference
Length420 cmReference
Width196 cmReference
Width214 cmReference
2WD Weight3355 kgReference
4WD Weight3840 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
