Tractor · 2000Unverified

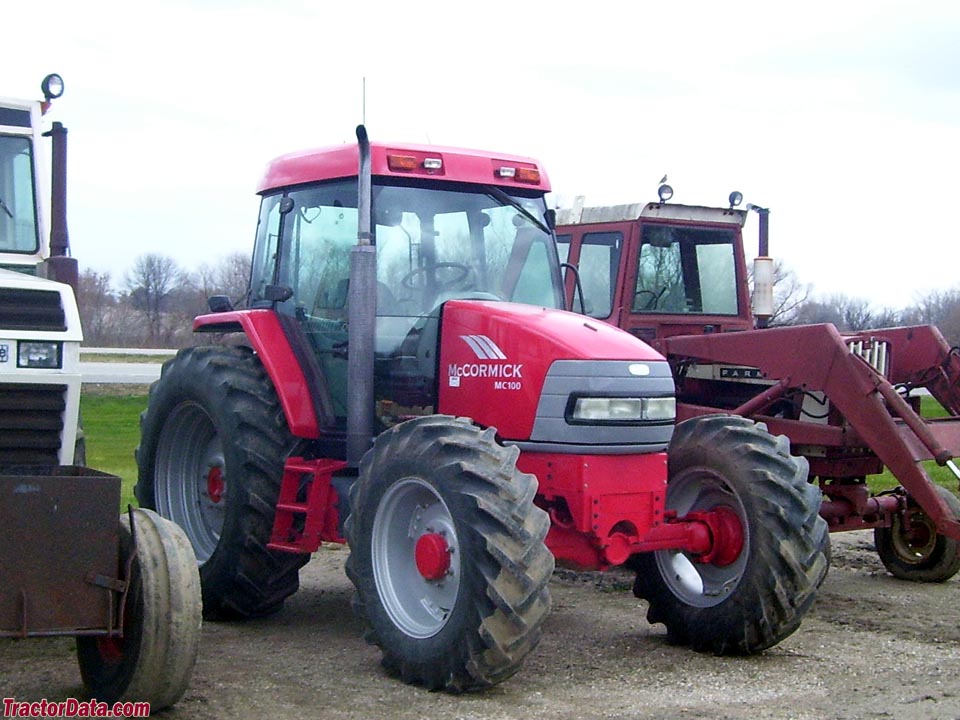

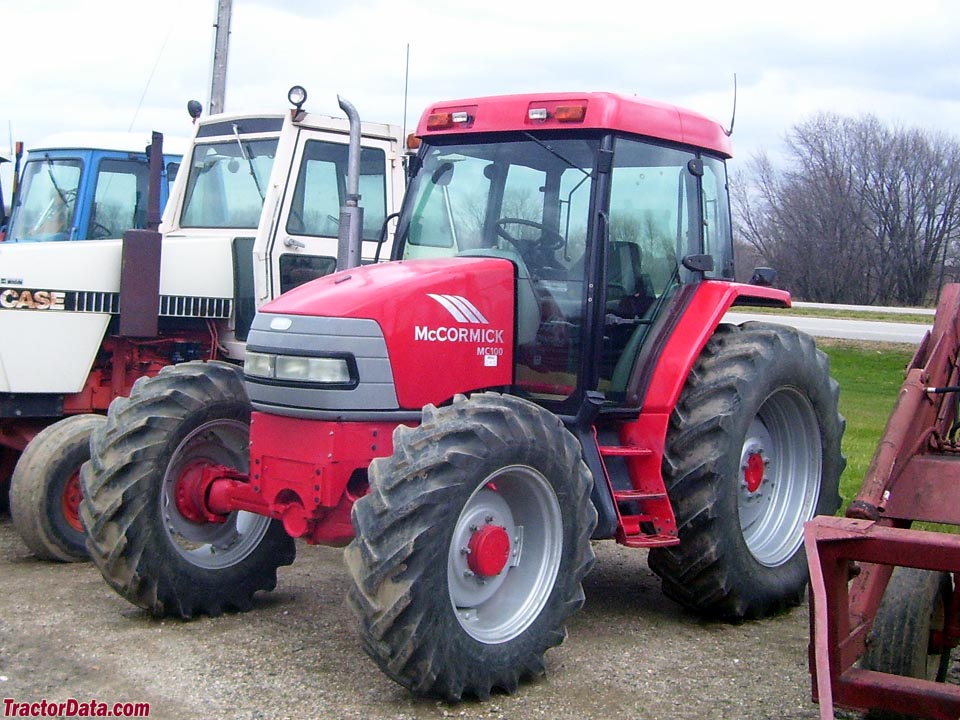

McCormick Intl MC100

Name: McCormick Intl MC100
Brand: McCormick Intl

McCormick Intl MC100 — MC Series · 102 hp. Reference specifications; pending source verification.

The McCormick Intl MC100 is a tractor with a rated power output of 102 hp, which falls within the mid-range of its class. It was manufactured from 2000 to 2003 and equipped with a 4-cylinder turbocharged diesel liquid-cooled engine. This engine is paired with a four-wheel drive system and a powershift transmission. The tractor's operating weight is listed as 10470 to 11900 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

102 hp

Weight

10470 to 11900 pounds

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

102 hp

Transmissions

16-speed partial power shift

Production years

2000-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Utility tractorReference

Built in Doncaster, EnglandReference

Four-wheel driveReference

Differential lockwet discReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS. Cab available with air-conditioning.Reference

Variants

MX100Csimilar CaseIH modelReference

Engine

Perkins 4.0L 4-cyl dieselReference

Fuel tank196.1 LReference

Engine76.1 kWReference

Perkins 1004-4TReference

wastegate turbocharged dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Power76.1 kWReference

Rated RPM2200Reference

Operating RPM2000-2200Reference

Torque403.1 NmReference

Torque RPM1400Reference

Starter volts12Reference

Oil change250 hReference

Transmission

16-speed partial power shiftReference

32-speed partial power shift with creeperReference

Typepartial power shiftReference

Gears16 forward and 12 reverseReference

Four power shift gears in three ranges with power shuttle.Reference

Typepartial power shift with creeperReference

Gears32 forward and 24 reverseReference

PTO & Hydraulics

Typeclosed-centerReference

Pump flow109.0 lpmReference

SCV flow95.0 lpmReference

Rear TypeIIINReference

Controlelectronic lower liftReference

Rear lift (at 24"/610mm)3719 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1877Reference

Engine RPM1000@2200Reference

Dimensions

Wheelbase242 cmReference

Weight10470 to 11900 poundsReference

Front tire13.6R28Reference

Rear tire16.9R38Reference

Ag front13.6R28Reference

Ag rear16.9R38Reference

Length443 cmReference

Width214 cmReference

Height (cab)278 cmReference

Ground clearance35 cmReference

5397 kgReference

Shipping4749 kgReference

Max front axle3299 kgReference

Max rear axle6250 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps95Reference

Battery volts12Reference

Speeds

With 16.9R38 rear tires and 40 kph transmission option.Reference

With 16.9R38 rear tires and 40 kph transmission option. Creeper range speeds shown.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
