Tractor · 2000Unverified

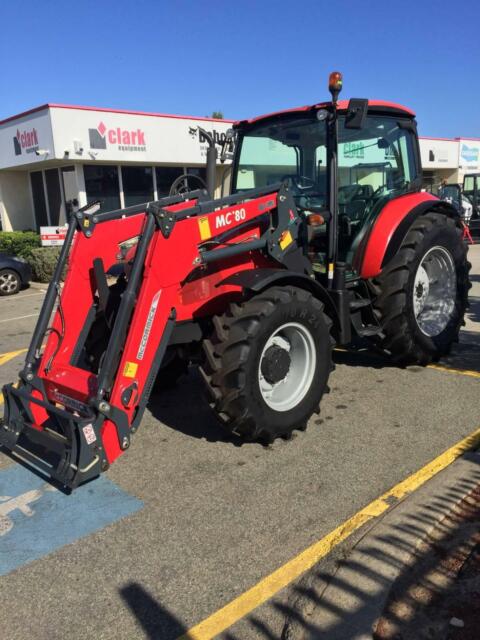

McCormick Intl MC80
McCormick Intl MC80 — MC Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
9921 to 11350 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Built in Doncaster, EnglandReference
Four-wheel driveReference
Differential lockwet discReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Variants
MX80Csimilar CaseIH modelReference
Engine
Perkins 4.0L 4-cyl dieselReference
Fuel tank196.1 LReference
Engine62.6 kWReference
Perkins 1004-4TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power62.6 kWReference
Rated RPM2200Reference
Operating RPM2000-2200Reference
Torque341.7 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil change250 hReference
Transmission
16-speed partial power shiftReference
32-speed partial power shift with creeperReference
Typepartial power shiftReference
Gears16 forward and 12 reverseReference
Four power shift gears in three ranges with power shuttle.Reference
Typepartial power shift with creeperReference
Gears32 forward and 24 reverseReference
PTO & Hydraulics
Typeclosed-centerReference
Pump flow109.0 lpmReference
SCV flow95.0 lpmReference
Rear TypeIIReference
Controlelectronic lower liftReference
Rear lift (at 24"/610mm)3719 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1877Reference
Engine RPM1000@2200Reference
Dimensions
Wheelbase242 cmReference
Weight9921 to 11350 poundsReference
Front tire12.4R24Reference
Rear tire16.9R38Reference
Ag front12.4R24Reference
Ag rear16.9R38Reference
Length443 cmReference
Width214 cmReference
Height (cab)274 cmReference
Ground clearance29 cmReference
5148 kgReference
Shipping4500 kgReference
Max front axle2899 kgReference
Max rear axle6250 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Speeds
With 16.9R38 rear tires and 40 kph transmission option.Reference
With 16.9R38 rear tires and 40 kph transmission option. Creeper range speeds shown.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
