Tractor · 2000Unverified

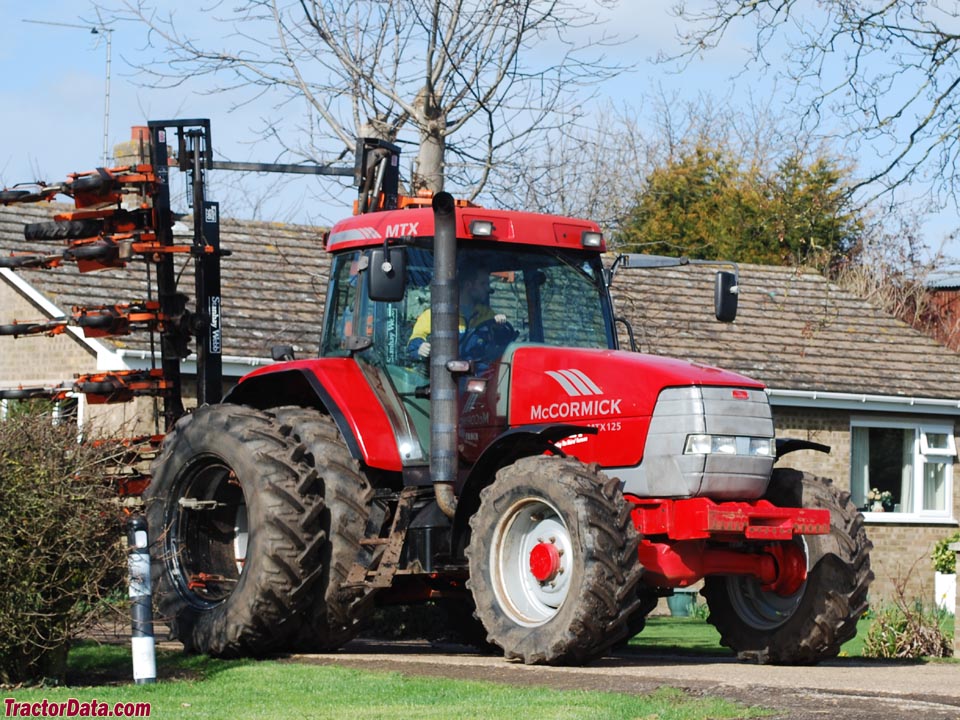

McCormick Intl MTX125
McCormick Intl MTX125 — MTX Series · 112 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
112 hp
Max power
85.1 kW
Weight
12020 to 13620 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 6.0L 6-cyl dieselReference
Fuel tank264.9 LReference
Engine96.9 kWReference
Drawbar (claimed)73.8 kWReference
Drawbar (tested)73.9 kWReference
Perkins 1006-60TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.0 LReference
Bore/Stroke100 x 127 mmReference
Power96.9 kWReference
Air cleanerdual paper elementsReference
Compression17.2:1Reference
Rated RPM2200Reference
Torque516.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil change300 hReference
Max power85.1 kWReference
Power at rated engine speed83.5 kWReference
Max power73.9 kWReference
Transmission
16-speed four-speed power shiftReference
32-speed creeperReference
Typefour-speed power shiftReference
Gears16 forward and 12 reverseReference
Clutchelectro-hydraulic wet discReference
Four power shift gears in four ranges.Reference
TypecreeperReference
Gears32 forward and 24 reverseReference
PTO & Hydraulics
PTO (claimed)83.5 kWReference
PTO (tested)85.1 kWReference
Typepressure flow compensatingReference
Pump flow109.0 lpmReference
SCV flow95.0 lpmReference
Rear TypeIIReference
Controlelectronic lower link draft sensingReference
Rear lift (at 24"/610mm)3719 kgReference
Rear lift (at 24"/610mm)4617 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1877Reference
Engine RPM1000@2200Reference
Dimensions
Wheelbase270 cmReference
Weight12020 to 13620 poundsReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length516 cmReference
Width230 cmReference
Height (cab)288 cmReference
6178 kgReference
Shipping5452 kgReference
Max front axle6100 kgReference
Max rear axle9498 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDFebruary 2002 - March 2002, Link: OCED Tractor Test 2098 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use28.8 l/hourReference
Drawbar performanceReference
Fuel use29.1 l/hourReference
Max pull6536 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
