Tractor · 2004Unverified

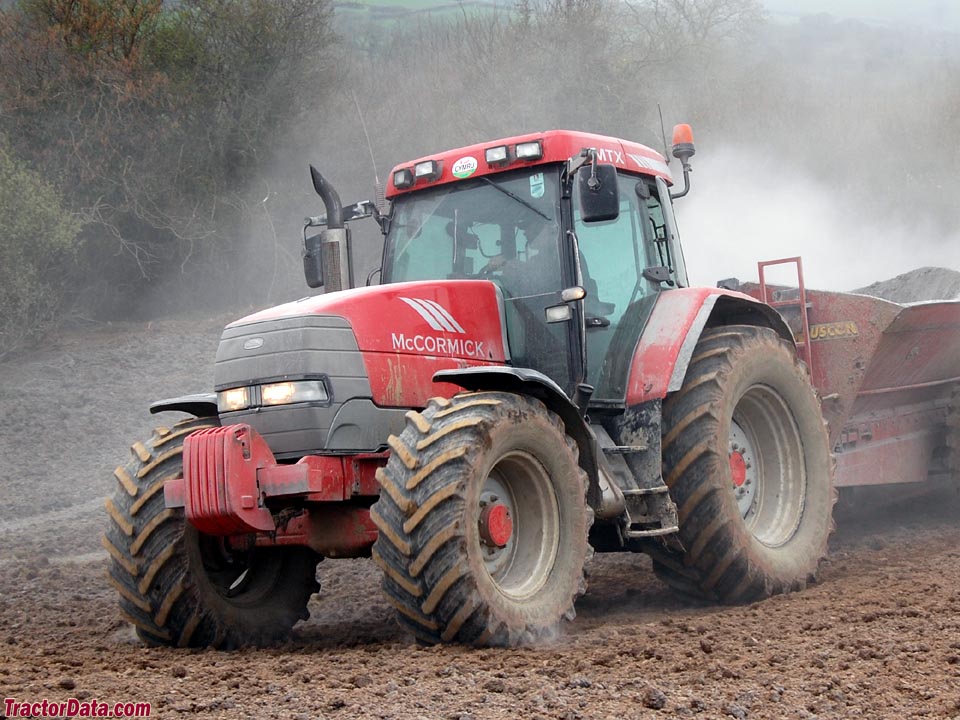

McCormick Intl MTX135
McCormick Intl MTX135 — MTX Series · 113 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
113 hp
Max power
85.1 kW
Weight
6001 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 6.8L 6-cyl dieselReference
Fuel tank264.9 LReference
Engine97.7 kWReference
Drawbar (tested)71.0 kWReference
IvecoReference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke104 x 132 mmReference
Power97.7 kWReference
Fuel systemmechanical injectionReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Torque353.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Max power85.1 kWReference
Power at rated engine speed84.1 kWReference
Max power71.0 kWReference
Transmission
16-speed four-speed power shiftReference
32-speedReference
Typefour-speed power shiftReference
Gears16 forward and 12 reverseReference
Clutchelectro-hydraulic wet discReference
Gears32 forward and 24 reverseReference
PTO & Hydraulics
PTO (claimed)83.5 kWReference
PTO (tested)85.1 kWReference
Typepressure flow compensatingReference
Pump flow109.0 lpmReference
Rear TypeIIINReference
Controlelectronic lower link draft sensingReference
Rear lift5871 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase272 cmReference
Weight6001 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length516 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging amps120 (optional)Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDSeptember 19 - 30, 2005Link: OCED Tractor Test 1857 fileReference
PTO performanceReference
Fuel use24.6 l/hourReference
Fuel use25.0 l/hourReference
Drawbar performanceReference
Max pull5942 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
