Tractor · 2004Unverified

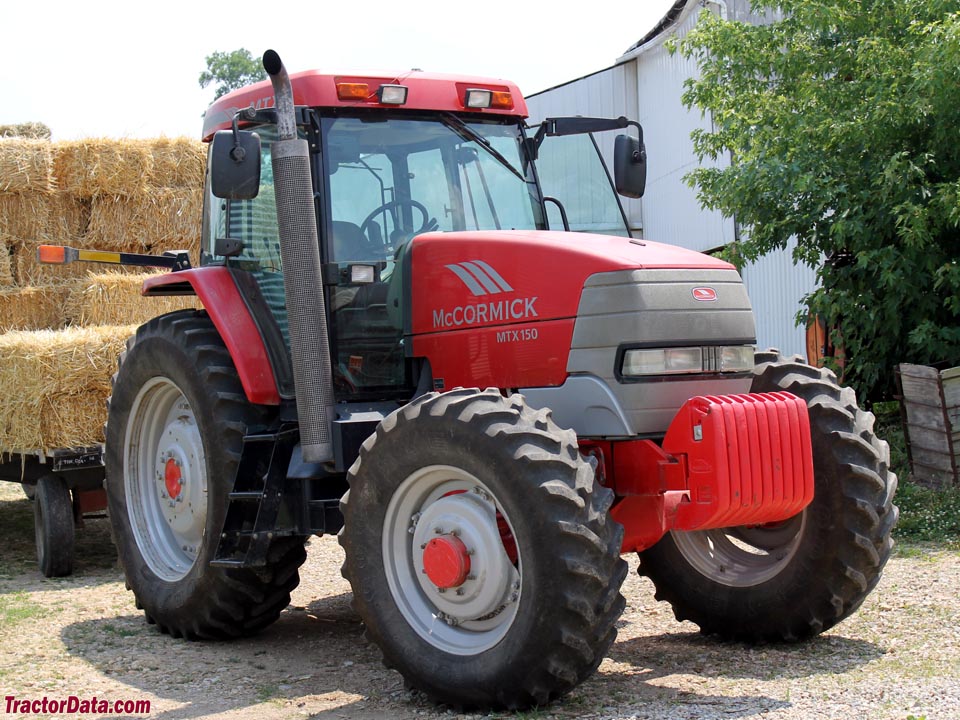

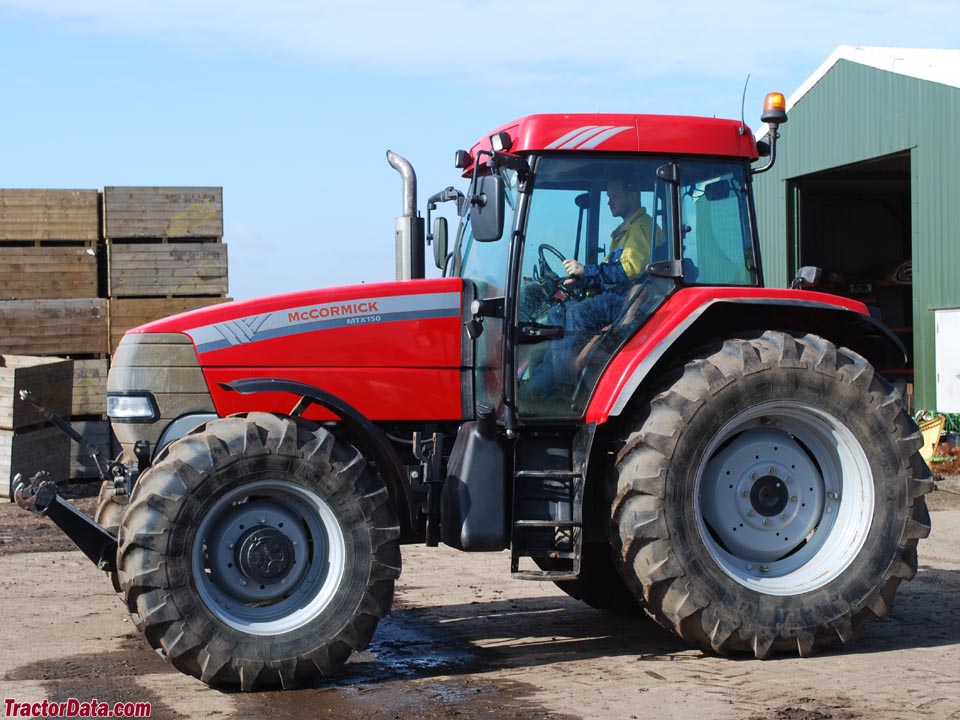

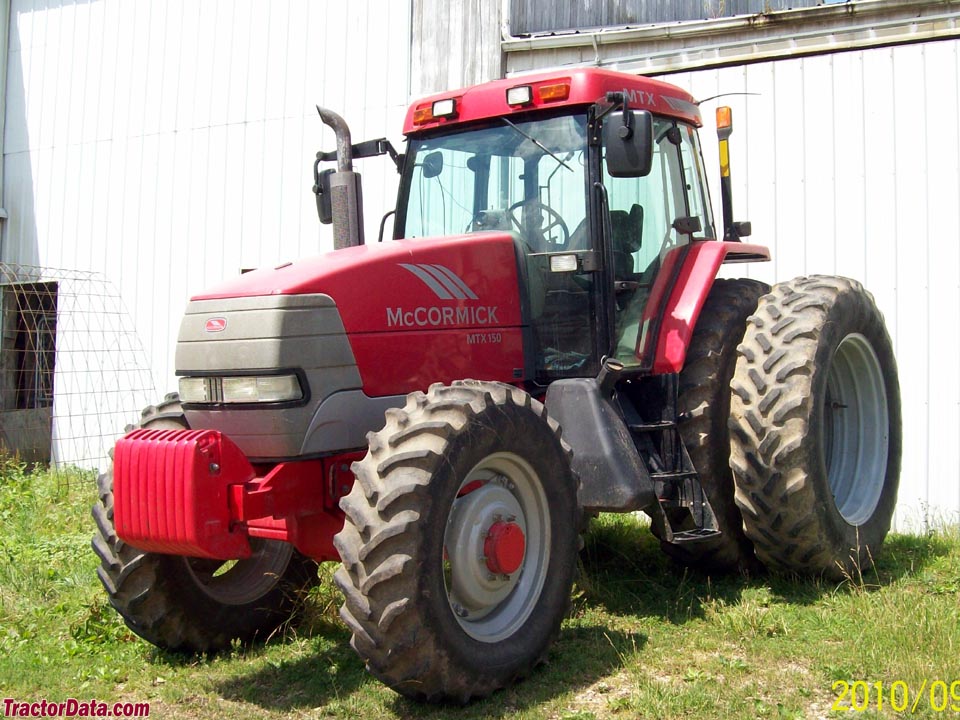

McCormick Intl MTX150
McCormick Intl MTX150 — MTX Series · 130 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
6160 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 6.8L 6-cyl dieselReference
Fuel tank264.9 LReference
Engine113.3 kWReference
IvecoReference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke104 x 132 mmReference
Power113.3 kWReference
Fuel systemmechanical injectionReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Torque582.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
16-speedReference
32-speedReference
TransmissionpowershiftReference
Gears16 forward and 12 reverseReference
Gears32 forward and 24 reverseReference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
Typepressure flow compensatingReference
Pump flow109.0 lpmReference
Rear TypeIIINReference
Controlelectronic lower link draft sensingReference
Rear lift6603 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase272 cmReference
Weight6160 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length516 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging amps120 (optional)Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
