Tractor · 2014Unverified

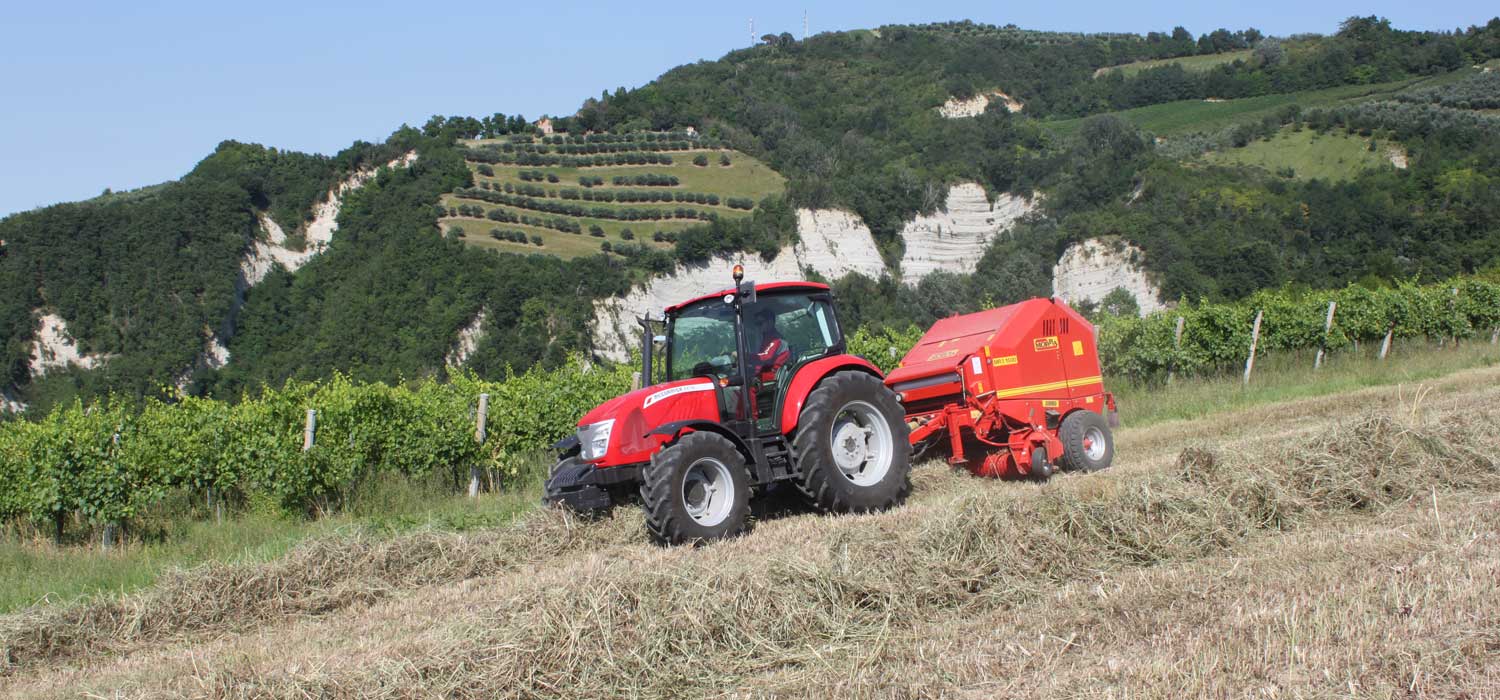

McCormick Intl X4.60

Name: McCormick Intl X4.60
Brand: McCormick Intl

McCormick Intl X4.60 — X4 Series · 79 hp. Reference specifications; pending source verification.

The McCormick Intl X4.60 is a tractor model rated at approximately 79 hp, placing it in the mid-range of its class. Produced in 2014, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The operating weight of the McCormick Intl X4.60 is 3193 kg. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

79 hp

Weight

3193 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

79 hp

Recorded weight

3193 kg

Transmissions

12-speed mechanical shuttle

Production years

2014-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMcCormick Intl (a part of Argo)Reference

Utility tractorReference

Four-wheel driveReference

Differential lockelectro-hydraulicReference

Differential lockmechanical optionalReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic (optional)Reference

Trailer brakespneumatic (optional)Reference

Cab standard. Air-conditioning optional.Reference

Engine

Deutz 3.6L 4-cyl dieselReference

Engine70.8 kWReference

Deutz C4DT69Reference

turbocharged aftercooled dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.6 LReference

Bore/Stroke97 x 119 mmReference

EmissionsTier 4Reference

Power70.8 kWReference

Maximum Power73.8 kWReference

Compression17.2:1Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed mechanical shuttleReference

16-speed mechanical shuttleReference

12-speed power shuttleReference

24-speed wet discReference

Typemechanical shuttleReference

Gears12 forward and reverseReference

Clutch305mm dry discReference

Gears16 forward and reverseReference

Typepower shuttleReference

Clutchwet discReference

Typewet discReference

Gears24 forward and reverseReference

PTO & Hydraulics

PTO (claimed)58.9 kWReference

PTO (claimed)63.4 kWReference

Valves2 to 4Reference

Pump flow43.1 lpmReference

Pump flow56.8 lpmReference

Total flow74.9 lpmReference

Total flow88.9 lpmReference

Controlposition controlReference

Rear lift2694 kgReference

Rear lift3891 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase223 cmReference

Weight3193 kgReference

Length431 cmReference

Width175 cmReference

Height (cab)259 cmReference

Ground clearance36 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
