Tractor · 1938Unverified

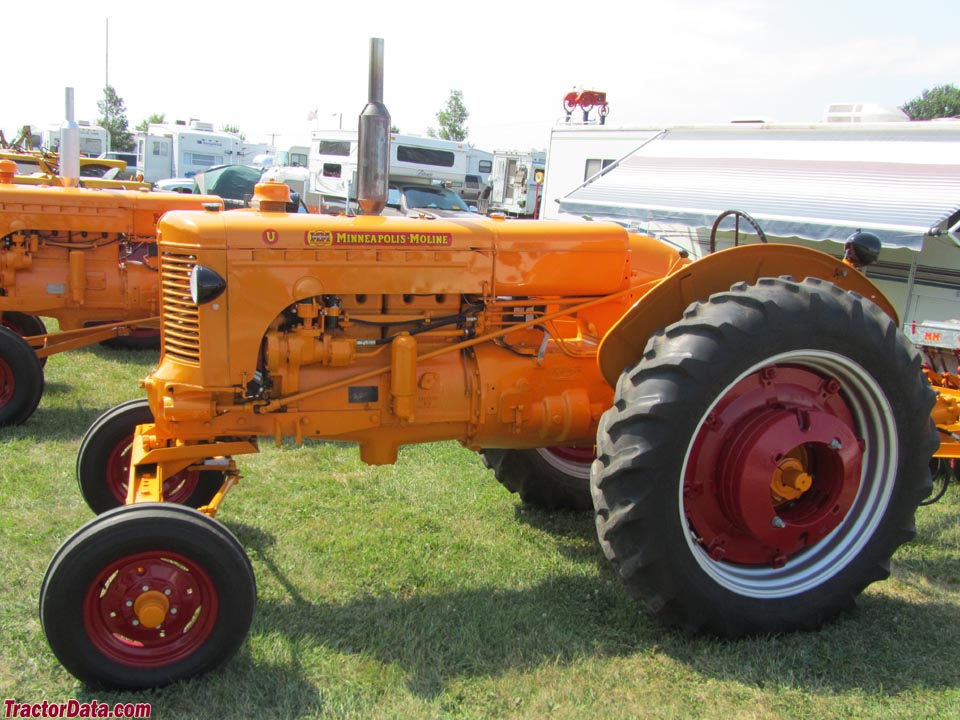

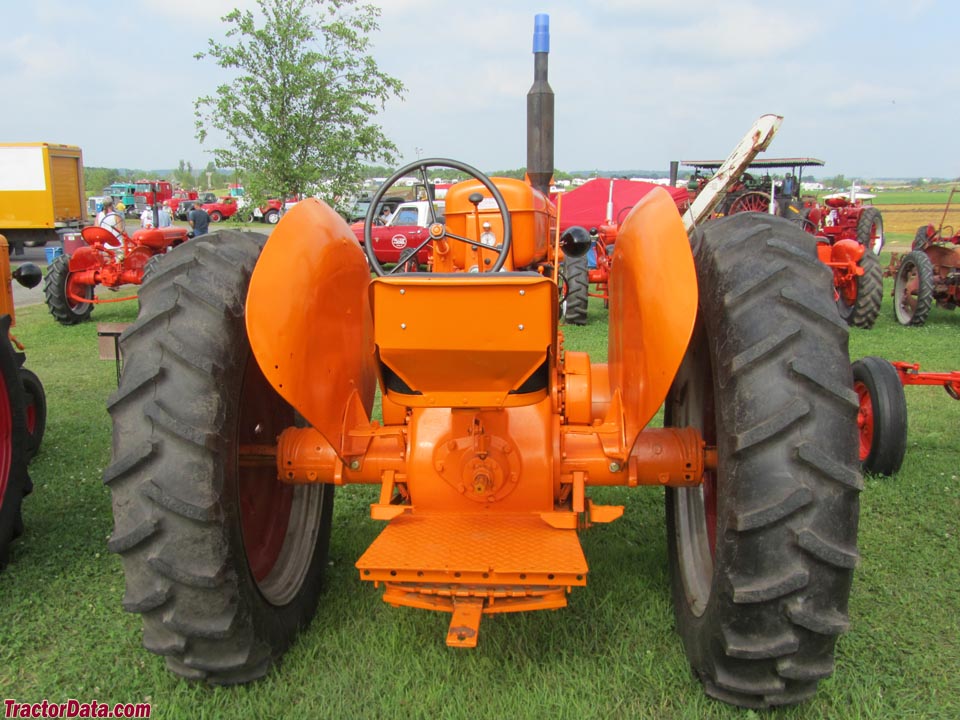

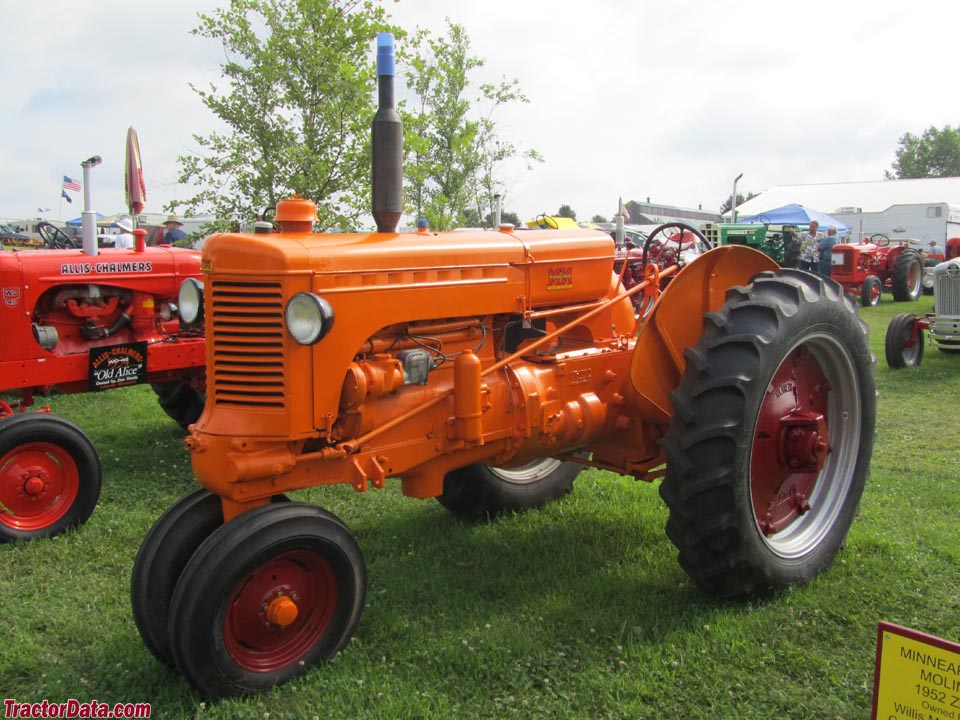

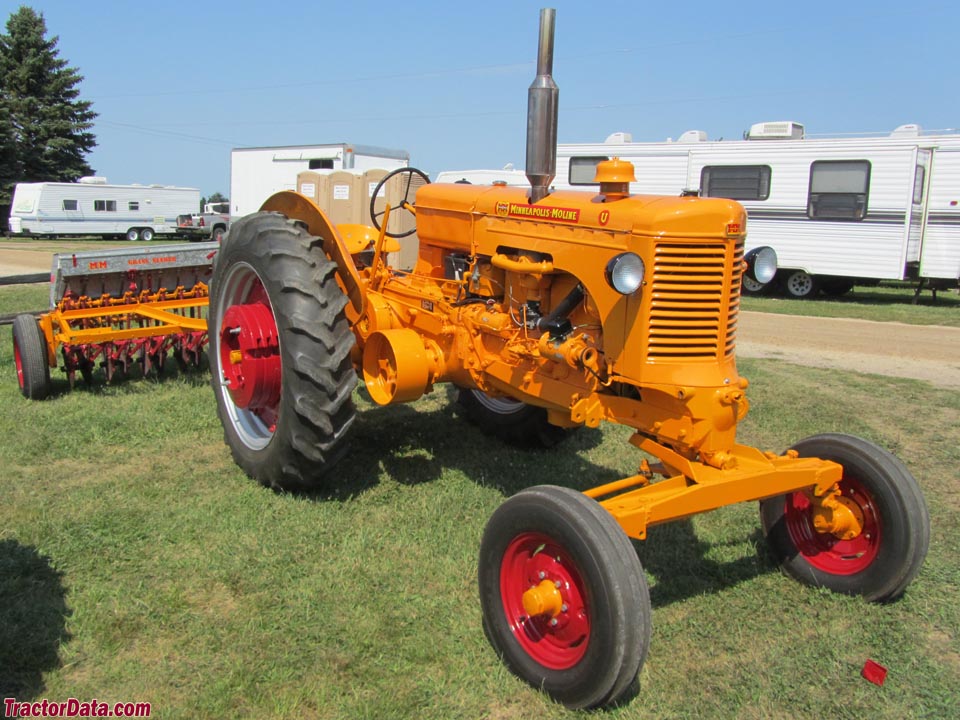

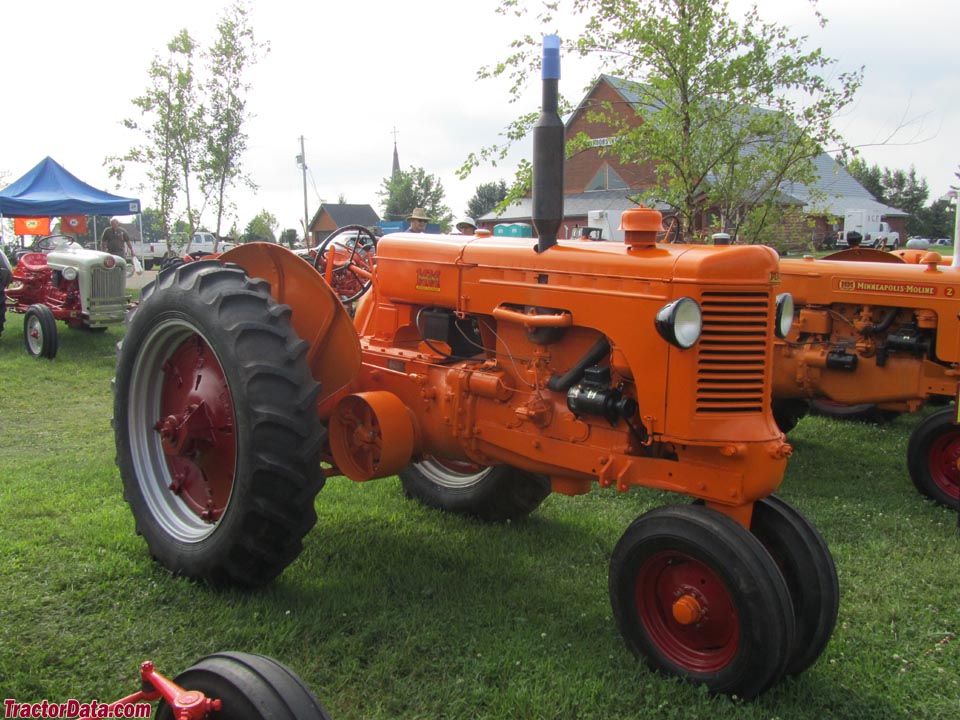

Minneapolis-Moline UTU
Minneapolis-Moline UTU — Model U Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Max power
26.2 kW
Weight
2494 kg
Hover a source tag to verify
Overview
ManufacturerMinneapolis-MolineReference
Row-Crop tractorReference
Built in Minneapolis, Minnesota, USAReference
Total built33,268Reference
Two-wheel driveReference

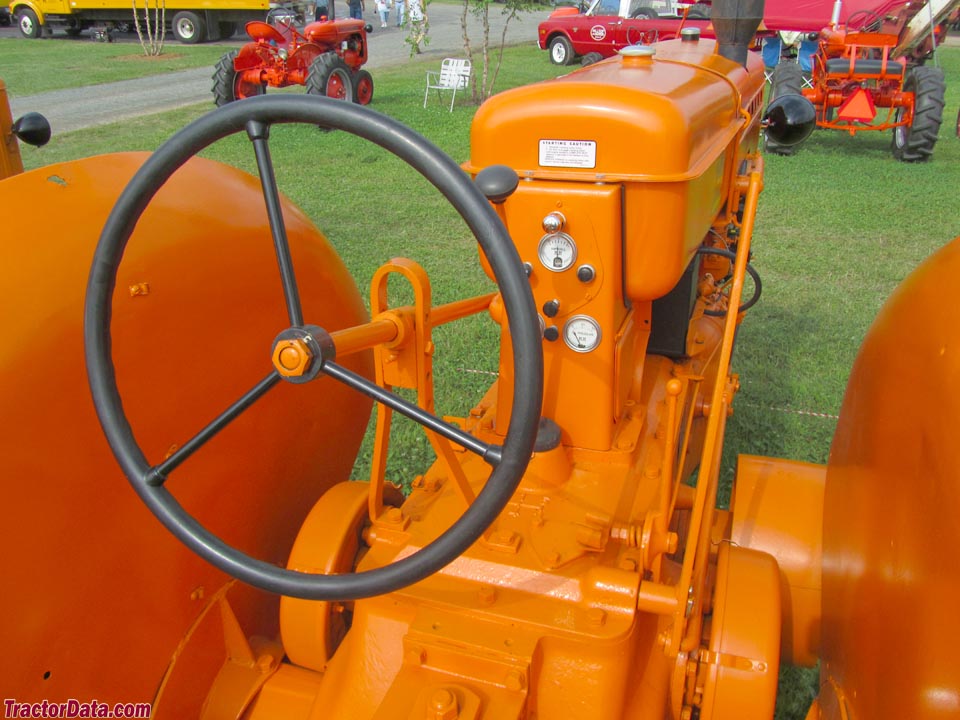

SteeringmanualReference
Open operator station.Reference
Variants
UTUrow-crop tricycleReference
UTErow-crop wide frontReference
UTNrow-crop single frontReference
UDUdiesel row-cropReference
UTS-Ddiesel standardReference
UTChigh-cropReference
UTSstandard-frontReference
UDLXComfotractor with cabReference
UTOXComfotractor roadsterReference
UTILindustrial with shuttle shiftReference
UTIL-MmilitaryReference
Engine
Minneapolis-Moline 4.6L 4-cyl gasolineReference
Fuel tank81.4 LReference
Drawbar (tested)26.2 kWReference
Belt (tested)31.8 kWReference
Minneapolis-MolineReference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement4.6 LReference
Bore/Stroke108 x 127 mmReference
Compression5.4:1Reference
Rated RPM1275Reference
Coolant capacity22.7 LReference
Belt power (max)31.8 kWReference
Max power26.2 kWReference
Belt power (max)27.8 kWReference
Max power25.0 kWReference
Transmission
5-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase223 cmReference
Weight2494 kgReference
Front tire6.00x16Reference
Rear tire11.00x36Reference
Ag front6.00x16Reference
Ag rear11.00x36Reference
Length354 cmReference
Width214 cmReference
Height179 cmReference
Ballasted weight3039 kgReference
Rear tread137 to 210 cmReference
UTU Serial Number Location
Gear case, right sideReference
UTU Serial Numbers
1938310026Reference
1939310647Reference
1940312451Reference
1941314893Reference
1942316501Reference
1943317702Reference
1944318163Reference
1945321102Reference
1946325231Reference
1947329752Reference
1948337418Reference
19480114800001Reference
19490114900001Reference
19500115000001Reference
195101105384Reference
195201110118Reference
1953---Reference
195401113450Reference
195501113454Reference
Final01113456Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter39 cmReference
Width17 cmReference
RPM733Reference
Speed906.78 meters/minReference
Test results
NTTL 319: gasoline 5-speed 2WDReference
NTTL 521: gasolineReference
Gasoline 5-speed 2WDJune 13 - 17, 1939Link: Nebraska Tractor Test 319 fileReference
Belt fuel use (max)15.5 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull2079 kgReference
Gear 2 used for pull test.Reference
Gasoline May 27 - June 7, 1954Link: Nebraska Tractor Test 521 fileReference
Belt fuel use (max)16.3 l/hourReference
Max pull2246 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
