Tractor · 1994Unverified

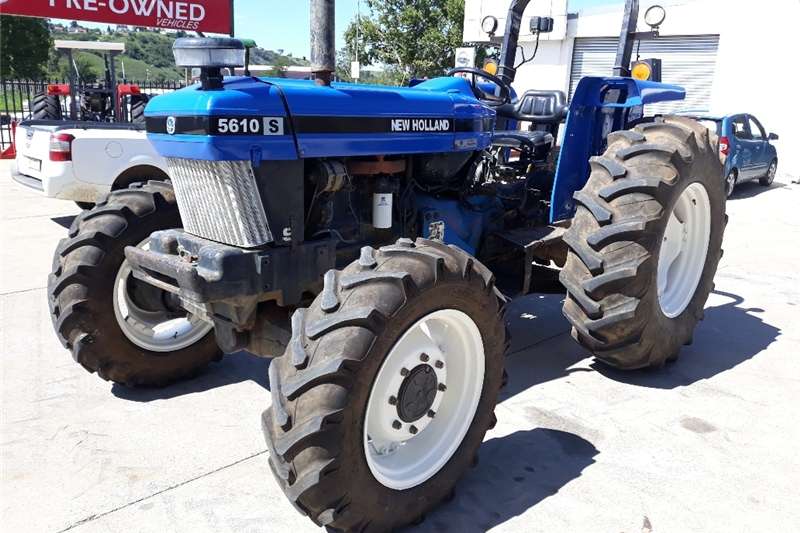

New Holland 5610S
New Holland 5610S — 10S Series · 66 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Weight
2566 kg
Hover a source tag to verify
Overview
ManufacturerNew HollandReference
Utility tractorReference
Built in Queretaro, MexicoReference
Original price was $26,000 in 2000Reference
Two-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two- or four-post ROPS.Reference
Engine
Ford 4.4L 4-cyl dieselReference
Engine55.9 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power55.9 kWReference
Pre-heatingthermostartReference
Pre-heatingblock heater (optional)Reference
Compression17.5:1Reference
Rated RPM2200Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity13.0 LReference
Intake valve clearance0.406 mmReference
Exhaust valve clearance0.483 mmReference
Transmission
8-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range.Reference
PTO & Hydraulics
PTO (claimed)49.2 kWReference
Typegear pumpReference
Pressure172.4 barReference
Valves2Reference
Pump flow36.7 lpmReference
Steering flow36.3 lpmReference
Steering cap.2.2 LReference
Rear TypeIIReference
Controlposition control with top-link draft sensingReference
Rear lift1832 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1900Reference
Capacities
Fuel81.4 LReference
Fuel50.0 LReference
Steering2.2 LReference
Dimensions
Wheelbase222 cmReference
Weight2566 kgReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16Reference
Ag rear16.9-30Reference
Length368 cmReference
Height (ROPS)243 cmReference
Ground clearance46 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
