Tractor · 1996Unverified

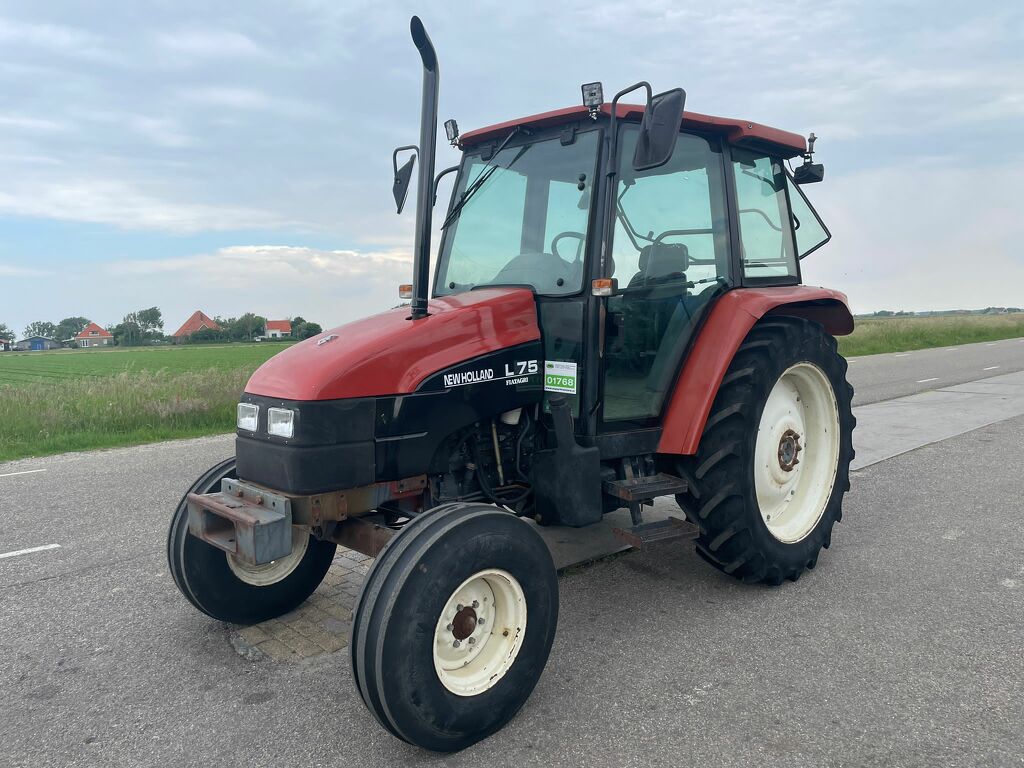

New Holland L75

Name: New Holland L75
Brand: New Holland

New Holland L75 — Utility tractor · 66 hp. Reference specifications; pending source verification.

The New Holland L75 is a tractor model with a rated output of 66 hp, positioning it in the middle of its class for power. It was manufactured from 1996 to 1999. The tractor features a 4-cylinder diesel liquid-cooled engine, which powers four-wheel drive via a powershift transmission. Its listed weight ranges from 6393 to 7496 pounds, making it suitable for operations of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

66 hp

Weight

6393 to 7496 pounds

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

66 hp

Transmissions

12-speed partially synchronized

Production years

1996-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerNew HollandReference

Utility tractorReference

Built in ItalyReference

Original price was $31,100 in 1999Reference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning.Reference

Engine

Iveco 3.9L 4-cyl dieselReference

Fuel tank109.8 LReference

Engine55.9 kWReference

Iveco 8045.05Reference

dieselReference

4-cylinder 8-valveReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke104 x 115 mmReference

Power55.9 kWReference

Pre-heatingThermostartReference

Rated RPM2500Reference

Starter volts12Reference

Oil capacity11.7 LReference

Coolant capacity14.0 LReference

Coolant capacity16.0 LReference

Transmission

12-speed partially synchronizedReference

12-speed partiallly synchronized with sync shuttleReference

24-speed partial power shiftReference

TransmissionSynchroReference

Typepartially synchronizedReference

Gears12 forward and 4 reverseReference

Four gears in three ranges, plus reverse. Gear shifts are synchronized.Reference

TransmissionSynchro CommandReference

Typepartiallly synchronized with sync shuttleReference

Gears12 forward and reverseReference

Four gears in three ranges with left-hand reverser. Gear and shuttle shifts are synchronized.Reference

TransmissionDual CommandReference

Typepartial power shiftReference

Gears24 forward and 12 reverseReference

Four gears in three ranges with two-speed power shift and left-hand reverser. The Dual Command provides push-button shifting to lower gear at each speed.Reference

PTO & Hydraulics

PTO (claimed)49.2 kWReference

Typeopen centerReference

Valves2 to 3Reference

Pump flow54.9 lpmReference

Rear TypeIIReference

Controlmechanical, lower linkReference

Rear lift (at 24"/610mm)2595 kgReference

Rear lift (at 24"/610mm)2875 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540Reference

Dimensions

2WD Wheelbase234 cmReference

4WD Wheelbase231 cmReference

Weight6393 to 7496 poundsReference

Front tire7.50-16Reference

Rear tire16.9-30Reference

Ag front7.50-16Reference

Ag rear16.9-30Reference

Width184 cmReference

Front tread142 to 213 cmReference

Rear tread152 to 213 cmReference

2WD ROPS Shipping2899 kgReference

2WD Cab Shipping3099 kgReference

4WD ROPS Shipping3200 kgReference

4WD Cab Shipping3400 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps65Reference

Battery volts12Reference

New Holland L75 Height

ROPS267 cmReference

ROPS213 cmReference

Cab247 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
