Tractor · 1940Unverified

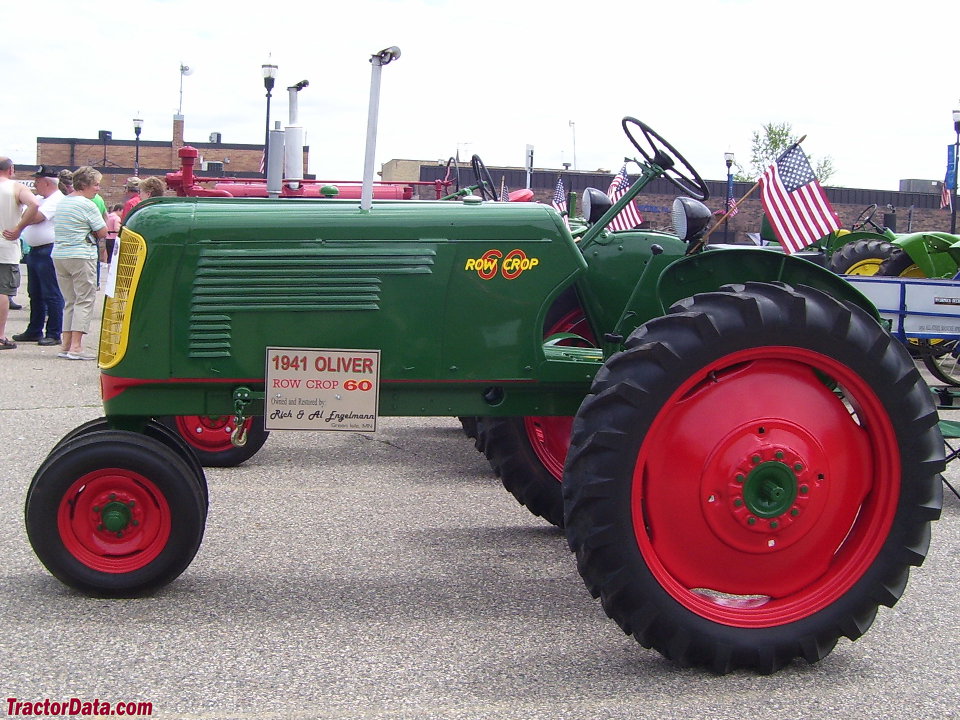

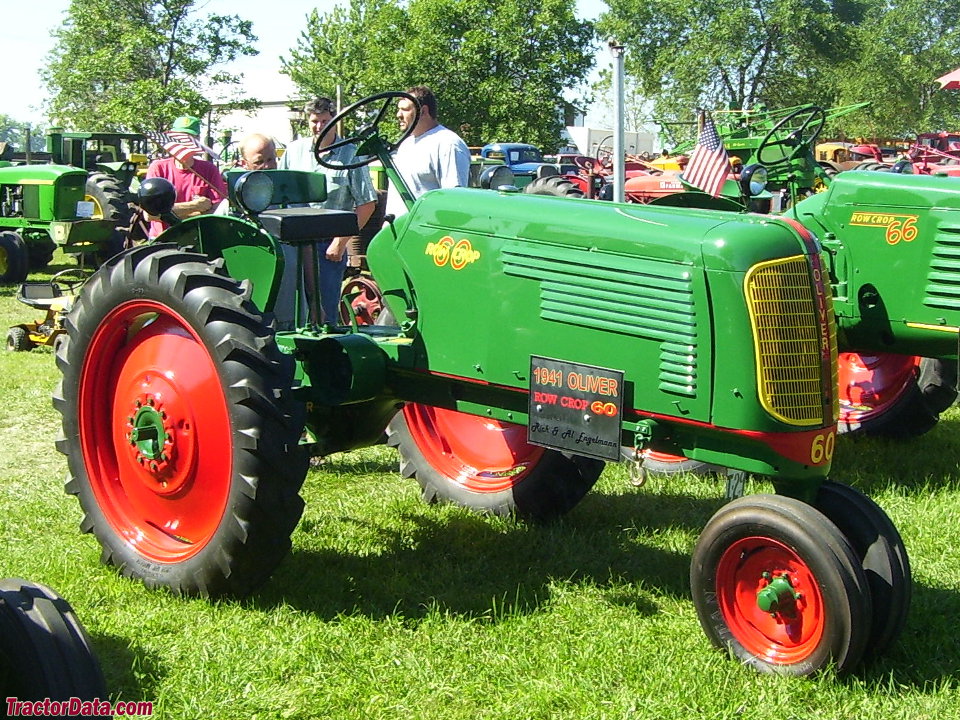

Oliver 60 Row-Crop

Name: Oliver 60 Row-Crop
Brand: Oliver

Oliver 60 Row-Crop — Row-Crop tractor · 18 hp. Reference specifications; pending source verification.

The Oliver 60 Row-Crop is a compact tractor rated at 18 hp, one of the smaller options in its class. It was produced from 1940 to 1948. The tractor features a 4-cylinder petrol, liquid-cooled engine, coupled with a two-wheel drive system and a 4-speed gearbox. Its listed weight is 1134 kg, and it is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Max power

12.6 kW

Weight

1134 kg

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

18 hp

Recorded weight

1134 kg

Transmissions

4-speed unsynchronized gear

Production years

1940-1948

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerOliverReference

Row-Crop tractorReference

Built in Charles City, Iowa, USAReference

Original price was $1,700 in 1948Reference

The Oliver 60 was sold in Canada as the Cockshutt 60.Reference

Two-wheel driveReference

Manual steeringReference

Differential contracting band brakesReference

Open operator station.Reference

Variants

60 Row-Croptricycle frontReference

60 Standardfixed front treadReference

Engine

Oliver 2.0L 4-cyl gasolineReference

Plows1-2Reference

Drawbar (tested)12.6 kWReference

Belt (tested)14.0 kWReference

OliverReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Bore/Stroke84 x 89 mmReference

Fuel systemMarvel-Schebler TSX-49 carburetorReference

Air cleaneroil bathReference

Rated RPM1500Reference

Starter typehand-crankReference

Starter typeelectricReference

Belt power (max)14.0 kWReference

Max power12.6 kWReference

Transmission

4-speed unsynchronized gearReference

6-speedReference

Typeunsynchronized gearReference

Gears4 forward and 1 reverseReference

Clutchdry discReference

Gears6 forward and 2 reverseReference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase217 cmReference

Weight1134 kgReference

Front tire5.00-15Reference

Rear tire9-32Reference

Ag front5.00-15Reference

Ag rear9-32Reference

Length325 cmReference

Width201 cmReference

Height (hood)144 cmReference

Operating weight1134 kgReference

Ballasted weight1814 kgReference

Front tread16 cmReference

Rear tread152 to 223 cmReference

60 Serial Numbers

1940600001Reference

1941600071Reference

1942606304Reference

1943607395Reference

1944608526Reference

1945612047Reference

1946615628Reference

1947616707Reference

1948620257Reference

FAQ: How to read a serial number table.Reference

Capacities

Diameter25 cmReference

Width15 cmReference

RPM1143Reference

Speed914.40 meters/minReference

Test results

Gasoline 4-speed 2WDSeptember 10 - 23, 1941Link: Nebraska Tractor Test 375 fileReference

Belt fuel use (max)6.1 l/hourReference

Drawbar performanceReference

Gear 3 used for power test.Reference

Max pull1132 kgReference

Gear 1 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
