Tractor · 1982Unverified

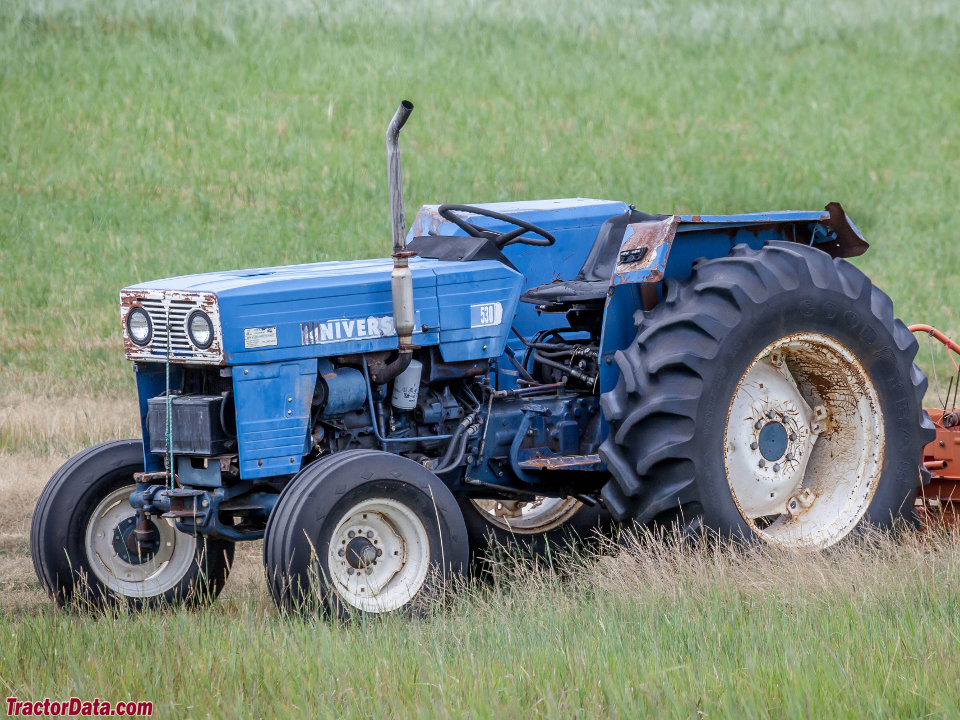

UTB/Universal 530
UTB/Universal 530 · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
4000 to 4800 pounds
Hover a source tag to verify
Overview
ManufacturerUTB/UniversalReference
Built in Brasov, RomaniaReference
Original price was $19,000 in 1985Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry band brakesReference
ROPS. Cab optional.Reference
Variants
530DT4WDReference
Engine
UTB 2.7L 3-cyl dieselReference
Fuel tank54.1 LReference
Engine39.5 kWReference
UTBReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power39.5 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2400Reference
Torque177.6 NmReference
Torque RPM1400Reference
Starter volts12Reference
Starter power3.0 kWReference
Transmission
12-speed constant meshReference
8-speed shuttleReference
Typeconstant meshReference
Gears12 forward and 3 reverseReference
Clutch279.4mm dry discReference
Four gears (1-4) plus reverse (R) in three ranges (creeper, low, and high). Gears 3 and 4 are synchronized.Reference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
Typeopen centerReference
Valves1Reference
Pump flow34.4 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1202 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase195 cmReference
Weight4000 to 4800 poundsReference
Front tire7.50-16Reference
Rear tire12.4-36Reference
Ag front7.50-16Reference
Ag front9.5-24 (4WD)Reference
Ag rear12.4-36Reference
Length318 cmReference
Height250 cmReference
2WD Weight1814 kgReference
4WD Weight2177 kgReference
UTB/Universal 530 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 14.9x28 rear tires.Reference
With 14.9x28 rear tires. Reverse speeds are 15% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
