Tractor · 1988Unverified

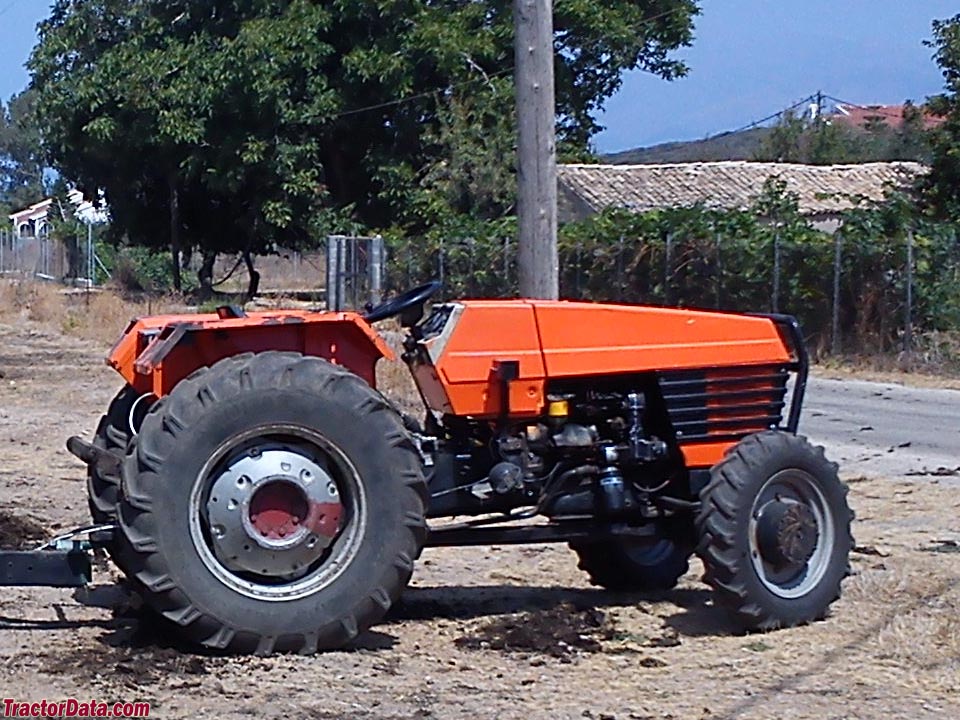

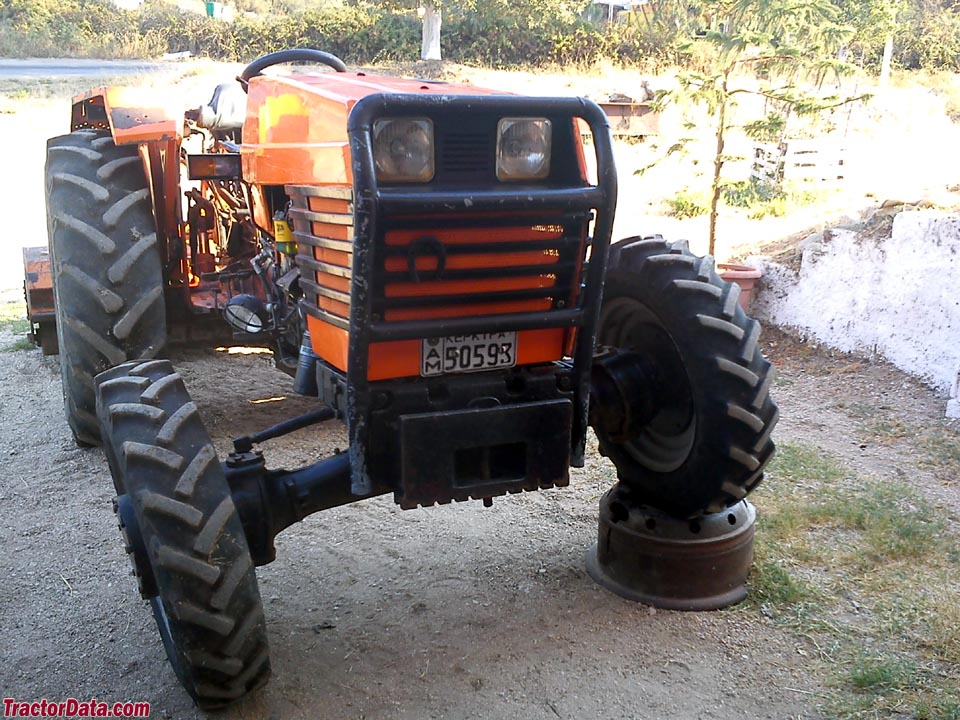

UTB/Universal 533
UTB/Universal 533 — 3 Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
5765 to 6393 pounds
Hover a source tag to verify
Overview
ManufacturerUTB/UniversalReference
Utility tractorReference
Built in Brasov, RomaniaReference
Original price was $17,000 in 2004Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Variants
533DT4WDReference
Engine
UTB 2.5L 3-cyl dieselReference
UTB 3.2L 4-cyl dieselReference
Fuel tank62.1 LReference
Engine39.5 kWReference
UTB D115.050Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke102 x 110 mmReference
Power39.5 kWReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2400Reference
Torque167.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity6.8 LReference
Coolant capacity13.0 LReference
UTBReference
4-cylinderReference
Displacement3.2 LReference
Bore/Stroke102 x 110 mmReference
Transmission
8-speed constant meshReference
12-speed creeperReference
Typeconstant meshReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Oil capacity23.0 LReference
Four gears (1-4) plus reverse (R) in two ranges (low and high).Reference
TypecreeperReference
Gears12 forward and 3 reverseReference
Optional creeper adds a third range to the basic transmission.Reference
PTO & Hydraulics
PTO (claimed)35.0 kWReference
Typeopen centerReference
Pump flow34.1 lpmReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2160Reference
Engine RPM1000@2400Reference
Dimensions
Wheelbase211 cmReference
Weight5765 to 6393 poundsReference
Front tire6.00-16Reference
2WD Rear tire14.9R28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 14.9R28Reference
4WD Standard tires (ag)Front: 9.5/8-24. Rear: 12.4R-36Reference
Length363 cmReference
Height248 cmReference
2WD Weight2615 kgReference
4WD Weight2899 kgReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH150Reference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
