Tractor · 1982Unverified

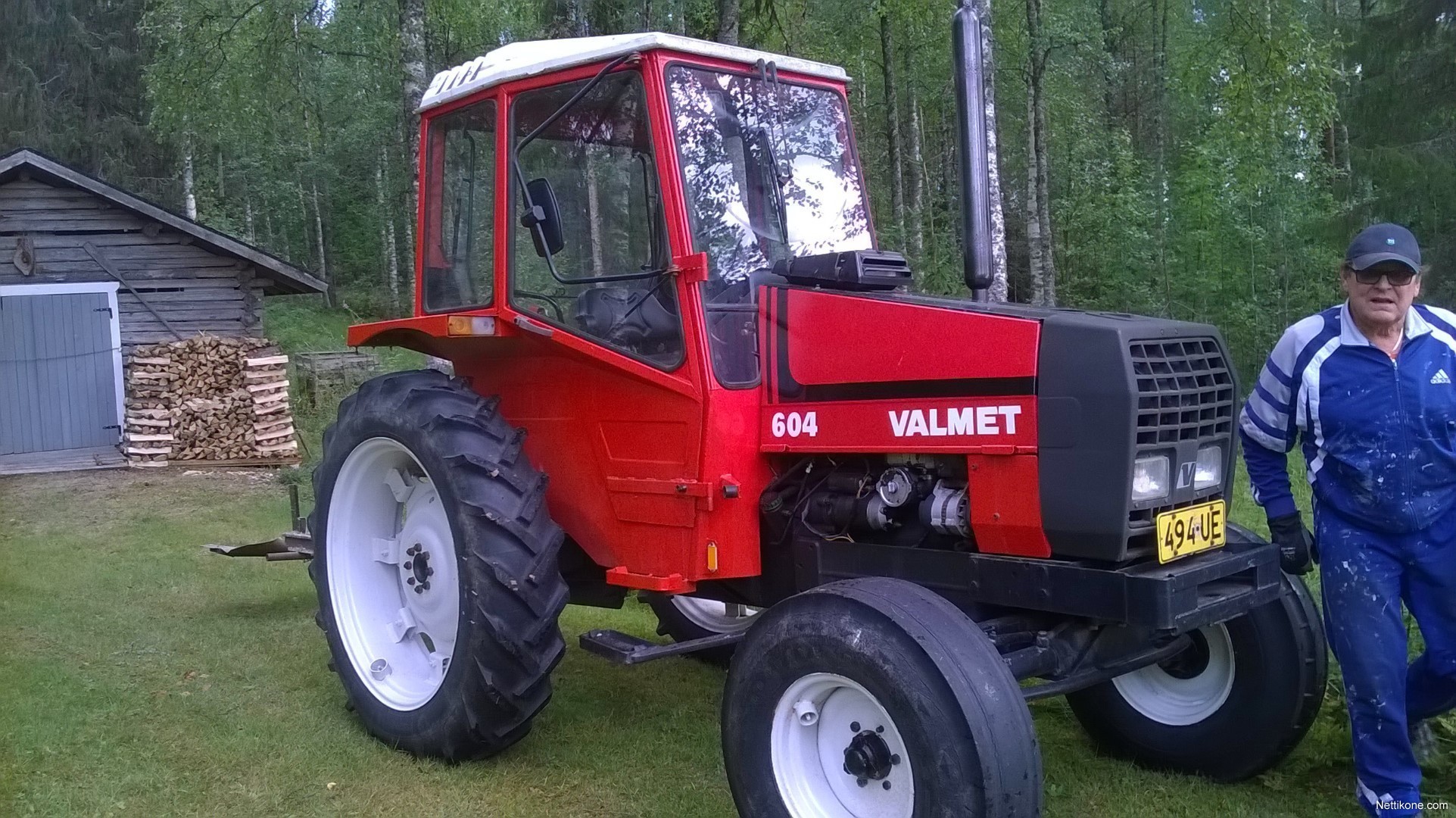

Valmet 604T
Valmet 604T — 04 Series · 66 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Weight
6217 to 6415 pounds
Hover a source tag to verify
Overview
ManufacturerValmetReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab standard.Reference
Engine
Valmet 3.3L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine49.2 kWReference
Valmet TD33CReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke108 x 120 mmReference
Power49.2 kWReference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity7.5 LReference
Coolant capacity10.0 LReference
Transmission
6-speed partially synchronizedReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Three gears (1-3) plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
Pump flow26.9 lpmReference
Pump flow38.6 lpmReference
Rear lift1900 kgReference
Rear PTO Type540Reference
Dimensions
2WD Wheelbase211 cmReference
4WD Wheelbase217 cmReference
Weight6217 to 6415 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 13.6-36Reference
2WD Length361 cmReference
4WD Length370 cmReference
Width210 cmReference
Height252 cmReference
2WD Weight2820 kgReference
4WD Weight2909 kgReference
2WD Ground clearance45 cmReference
4WD Ground clearance40 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps34Reference
Charging volts13.5Reference
Battery volts12Reference
Battery AH130Reference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
