Tractor · 1982Unverified

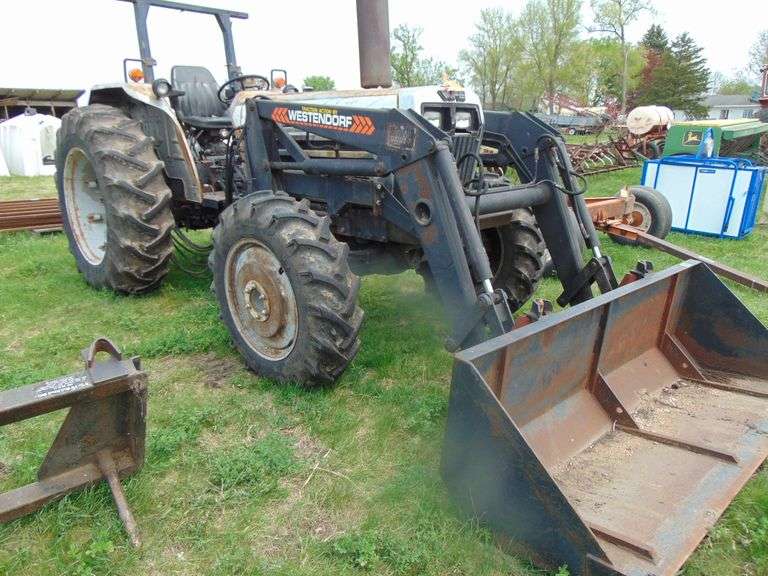

White 2-75
White 2-75 — Field Boss Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Max power
47.4 kW
Weight
6108 to 7920 pounds
Hover a source tag to verify
Overview
DistributorWhiteReference
ManufacturerIsekiReference
Utility tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Differential lockfoot-activated standardReference
SteeringpowerReference
Differential wet disc brakesReference
Two-post ROPS. Optional canopy.Reference
Variants
Iseki T9000similar tractorReference
Engine
Isuzu 5.4L 6-cyl dieselReference
Drawbar (tested)47.4 kWReference
IsuzuReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke102 x 110 mmReference
Air cleanerdry with pre-cleanerReference
Pre-heatingglow plugsReference
Rated RPM2200Reference
Idle RPM675-2420Reference
Starter volts12Reference
Oil capacity16.0 LReference
Coolant capacity18.3 LReference
Power at rated engine speed56.2 kWReference
Max power47.4 kWReference
Transmission
16-speed synchromeshReference
TypesynchromeshReference
Gears16 forward and 4 reverseReference
Oil capacity33.4 LReference
Three gears, plus reverse, with high-low creeper and high-low auxiliary ranges.Reference
PTO & Hydraulics
PTO (claimed)56.2 kWReference
PTO (tested)56.2 kWReference
Hydraulic system33.3 LReference
Typeopen centerReference
Capacity33.3 LReference
Pressure176.5 barReference
Valves1 to 3Reference
Total flow45.0 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000/groundReference
Power at rated PTO speed56.4 kWReference
Capacities
Fuel79.9 LReference
Dimensions
Wheelbase230 cmReference
Weight6108 to 7920 poundsReference
Front tire7.50-18Reference
Rear tire16.9-34 (2WD)Reference
Standard tires (ag)Front: 7.50-18. Rear: 16.9-34 (2WD)Reference
Standard tires (ag)Front: 11.20-24. Rear: 16.9-34 (4WD)Reference
Length389 cmReference
Width187 cmReference
Height (exhaust)255 cmReference
Clearance (front axle)51 cmReference
Shipping2770 kgReference
Operating3592 kgReference
Ballasted4365 kgReference
White 2-75 attachments
front-end loaderReference
2-75 Serial Numbers
Location:Tractor frame on leftReference
198200177 (2WD)Reference
198300242 (2WD)Reference
198400295 (2WD)Reference
198500508 (2WD)Reference
198600555 (2WD)Reference
198200247 (4WD)Reference
198300305 (4WD)Reference
198400501 (4WD)Reference
198500728 (4WD)Reference
198600782 (4WD)Reference
198700892 (4WD)Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDAugust 22 - September 1, 1983Link: Nebraska Tractor Test 1486 fileReference
PTO performanceReference
Fuel use18.5 l/hourReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Gear 4HL used for power test.Reference
Max pull2942 kgReference
Gear 2HL used for pull test.Reference
Speeds
With 16.9-34 rear tires. Speeds expressed as gear-creeper-auxiliary.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
