Tractor · 1992Unverified

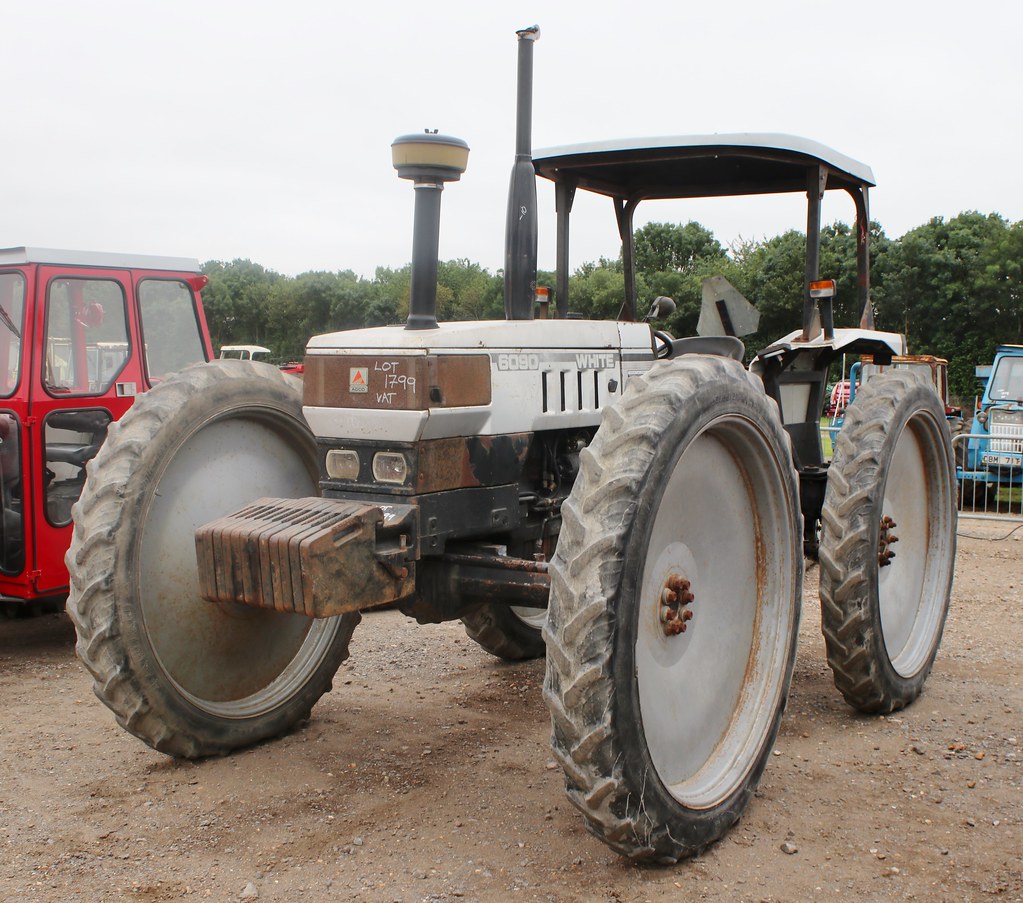

White 6090
White 6090 — High-Clearance tractor · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
3552 kg
Hover a source tag to verify
Overview
DistributorWhite (a part of AGCO)Reference
ManufacturerSAMEReference
High-Clearance tractorReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS.Reference
Engine
SLH 4.0L 4-cyl dieselReference
SLH 1000.4-WTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 116 mmReference
Fuel systemdirect injectionReference
Compression17.1:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
20-speed synchromeshReference
TypesynchromeshReference
Gears20 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
Hydraulic system65.1 LReference
Typeopen centerReference
Capacity65.1 LReference
Pressure180.0 barReference
Valves1 or 2Reference
Pump flow59.8 lpmReference
Total flow82.5 lpmReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)2919 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Capacities
Fuel85.2 LReference
Dimensions
Wheelbase230 cmReference
Weight3552 kgReference
Length430 cmReference
Width204 cmReference
Height257 cmReference
Shipping weight3552 kgReference
2WD Clearance (front axle)71 cmReference
4WD Clearance (front axle)58 cmReference
Clearance (rear axle)83 cmReference
Clearance (drawbar)55 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
