Tractor · 1989Unverified
White 80
White 80 — American Series · 81 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Max power
50.8 kW
Weight
4159 kg
Hover a source tag to verify
Overview
ManufacturerWhiteReference
Utility tractorReference
Built in Coldwater, Ohio, USAReference
Original price was $25,000 in 1991Reference

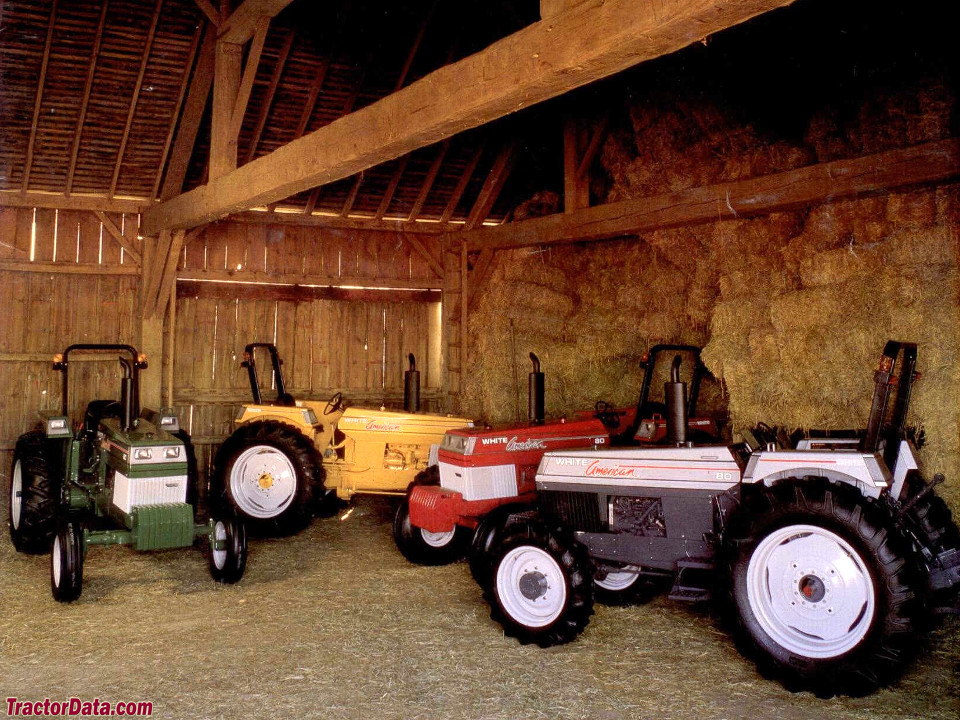

To celebrate four of the tractor brands in White Farm Equipment's history, the American 80 was available in a choice of paint colors. Cockshutt Red, Minneapolis-Moline Gold, and Oliver Green were optional colors, while White Silver was the standard paint scheme.Reference
Two- or four-wheel driveReference
Power steeringReference
Dry disc brakesReference
Two-post ROPS. Canopy optional.Reference
Engine
Cummins 3.9L 4-cyl dieselReference
Drawbar (tested)50.8 kWReference
CumminsReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Pre-heating750W coolant heaterReference
Pre-heatingether kitReference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity11.0 LReference
Coolant capacity22.7 LReference
Power at rated engine speed60.8 kWReference
Max power50.8 kWReference
Transmission
6-speed sliding gearReference
18-speed partial power shiftReference
Typesliding gearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
Oil capacity49.2 LReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
The optional power shift transmission add a three-speed power shift to the basic six-speed transmission.Reference
PTO & Hydraulics
PTO (claimed)59.7 kWReference
PTO (tested)60.8 kWReference
Hydraulic system49.2 LReference
Typeopen centerReference
Capacity49.2 LReference
Pressure151.7 barReference
Valves1 to 3Reference
Total flow75.7 lpmReference
Rear TypeII/IReference
Controllower linkReference
Rear lift2268 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000Reference
Engine RPM540@2160Reference
Engine RPM1000@2217Reference
Capacities
Fuel75.7 LReference
Dimensions
Wheelbase242 cmReference
Weight4159 kgReference
Front tire7.50-18Reference
2WD Rear tire16.9-34Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.9-34Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-34Reference
4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
4WD Optional tires (ag)Front: 13.6-24. Rear: 18.4R34Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 15.5-38Reference
2WD Ag front10.00-16Reference
2WD Ag front9.5L-15Reference
2WD Ag front27x9.50-15Reference
2WD Ag rear18.4-34Reference
2WD Ag rear18.4R34Reference
2WD Ag rear15.5-38Reference
2WD Ag rear16.9-24Reference
2WD Ag rear18.4-26Reference
2WD Ag rear18.4R26Reference
2WD Lawn/turf rear16.9-24Reference
2WD Lawn/turf rear18.4-26Reference
Length387 cmReference
Width207 cmReference
Height (hood)167 cmReference
Height (ROPS)245 cmReference
Operating weight4159 kgReference
Ground clearance48 cmReference
Front tread152 to 213 cmReference
Rear tread152 to 227 cmReference
80 Serial Numbers
Location:Instrument panelReference
1989402597Reference
1990404455Reference
1991405048Reference
1992405674Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps62Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDApril 3 - 26, 1990Link: Nebraska Tractor Test 1637 fileReference
PTO performanceReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Fuel use18.5 l/hourReference
Gear 3B used for power test.Reference
Max pull4577 kgReference
Gear 1B used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
