Tractor · 1994Unverified

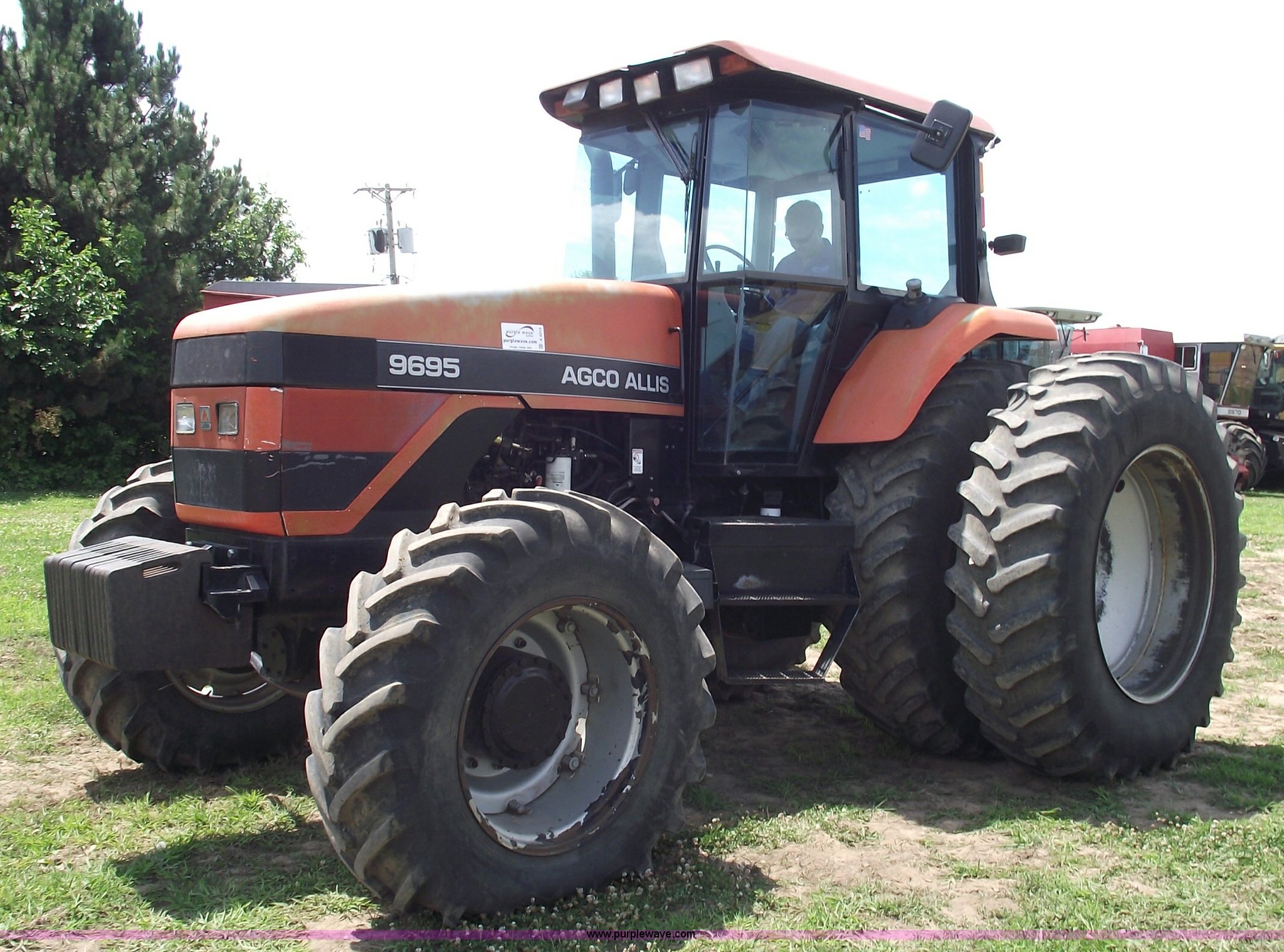

AGCO Allis 9695
AGCO Allis 9695 — Row-Crop tractor · 197 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
197 hp
Max power
157.7 kW
Weight
17425 to 18592 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO AllisReference
Row-Crop tractorReference
Original price was $112,000 in 1998Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Detroit Diesel 8.7L 6-cyl dieselReference
Fuel tank344.4 LReference
Drawbar (tested)126.9 kWReference
Detroit Diesel 40Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.7 LReference
Bore/Stroke117 x 136 mmReference
Pre-heatingether injectionReference
Rated RPM2200Reference
Starter volts12Reference
Max power157.7 kWReference
Power at rated engine speed146.6 kWReference
Max power126.9 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
PTO & Hydraulics
PTO (claimed)145.4 kWReference
PTO (tested)157.7 kWReference
Typeclosed centerReference
Pressure172.4 barReference
Rear valves3 or 4Reference
Pump flow98.4 lpmReference
Rear TypeIII/IIReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)4490 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Engine RPM1000@2083Reference
Power at rated PTO speed152.5 kWReference
Dimensions
Wheelbase295 cmReference
Weight17425 to 18592 poundsReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Shipping weight7903 kgReference
Operating weight8433 kgReference
Bar rear axle98 by 2438 mmReference
Bar rear axle98 by 2921 mmReference
Front tread155 to 221 cmReference
Rear tread162 to 272 cmReference
Rear tread162 to 320 cmReference
9695 Serial Numbers
Location:Console, right sideReference
1994991001Reference
1995901501Reference
1996902301Reference
1997992384Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDSeptember 8 - 21, 1995Link: OCED Tractor Test 1700 fileReference
PTO performanceReference
Fuel use45.4 l/hourReference
Fuel use45.8 l/hourReference
Drawbar performanceReference
Fuel use46.2 l/hourReference
Gear 11 used for power test.Reference
Max pull7975 kgReference
Gear 6 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
