Tractor · 1994Unverified

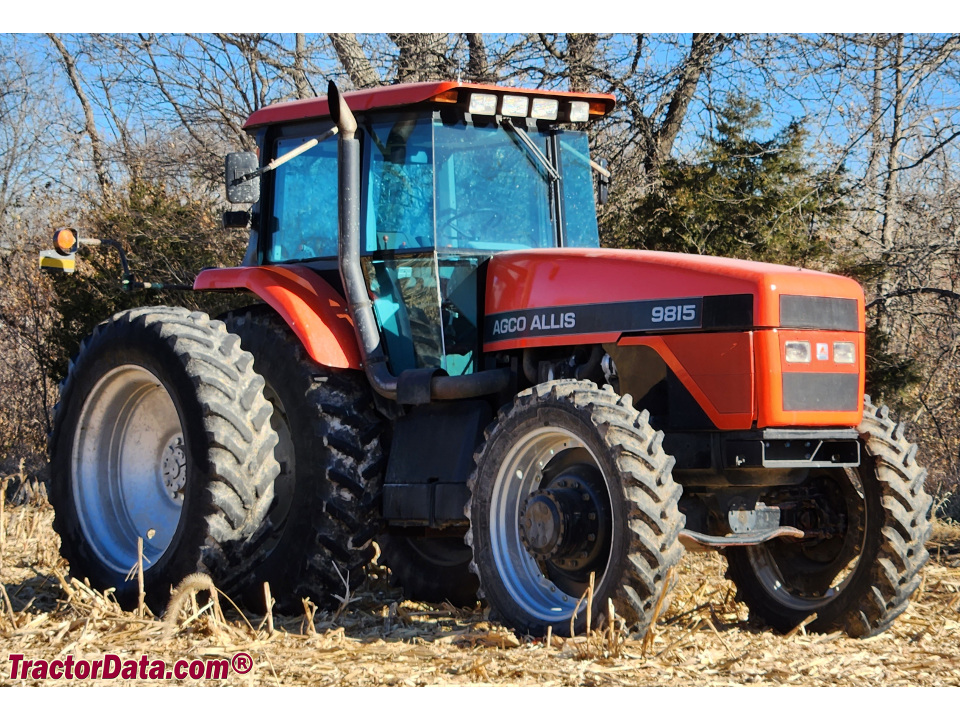

AGCO Allis 9815
AGCO Allis 9815 — Row-Crop tractor · 216 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
216 hp
Max power
170.9 kW
Weight
18100 to 19610 pounds
Hover a source tag to verify
Overview
ManufacturerAGCO AllisReference
Row-Crop tractorReference
Original price was $122,000 in 1998Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Detroit Diesel 8.7L 6-cyl dieselReference
Fuel tank344.4 LReference
Drawbar (tested)138.8 kWReference
Detroit DieselReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.7 LReference
Bore/Stroke117 x 136 mmReference
Air cleanerdual paper elementsReference
Pre-heatingether injectionReference
Compression15.8:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power170.9 kWReference
Power at rated engine speed161.2 kWReference
Max power138.8 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 9 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)160.3 kWReference
PTO (tested)170.9 kWReference
Typeclosed centerReference
Pressure189.6 barReference
Rear valves3 or 4Reference
Pump flow98.4 lpmReference
Rear TypeIIIReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)6350 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed164.1 kWReference
Dimensions
Wheelbase292 cmReference
Weight18100 to 19610 poundsReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Bar rear axle98 by 2438 mmReference
Bar rear axle98 by 2921 mmReference
Front tread155 to 221 cmReference
Rear tread162 to 272 cmReference
Rear tread162 to 320 cmReference
Shipping8210 kgReference
Operating8895 kgReference
Ballasted11674 kgReference
9815 Serial Numbers
Location:Console, right sideReference
1994901001Reference
1995901501Reference
1996902301Reference
1997902357Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Test results
Diesel 18-speed 4WDOctober 16 - 29, 1996Link: OCED Tractor Test 1718 fileReference
PTO performanceReference
Fuel use48.1 l/hourReference
Fuel use51.5 l/hourReference
Fuel use50.3 l/hourReference
Drawbar performanceReference
Fuel use51.9 l/hourReference
Gear 11 used for power test.Reference
Max pull11675 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
