Tractor · 1980Unverified

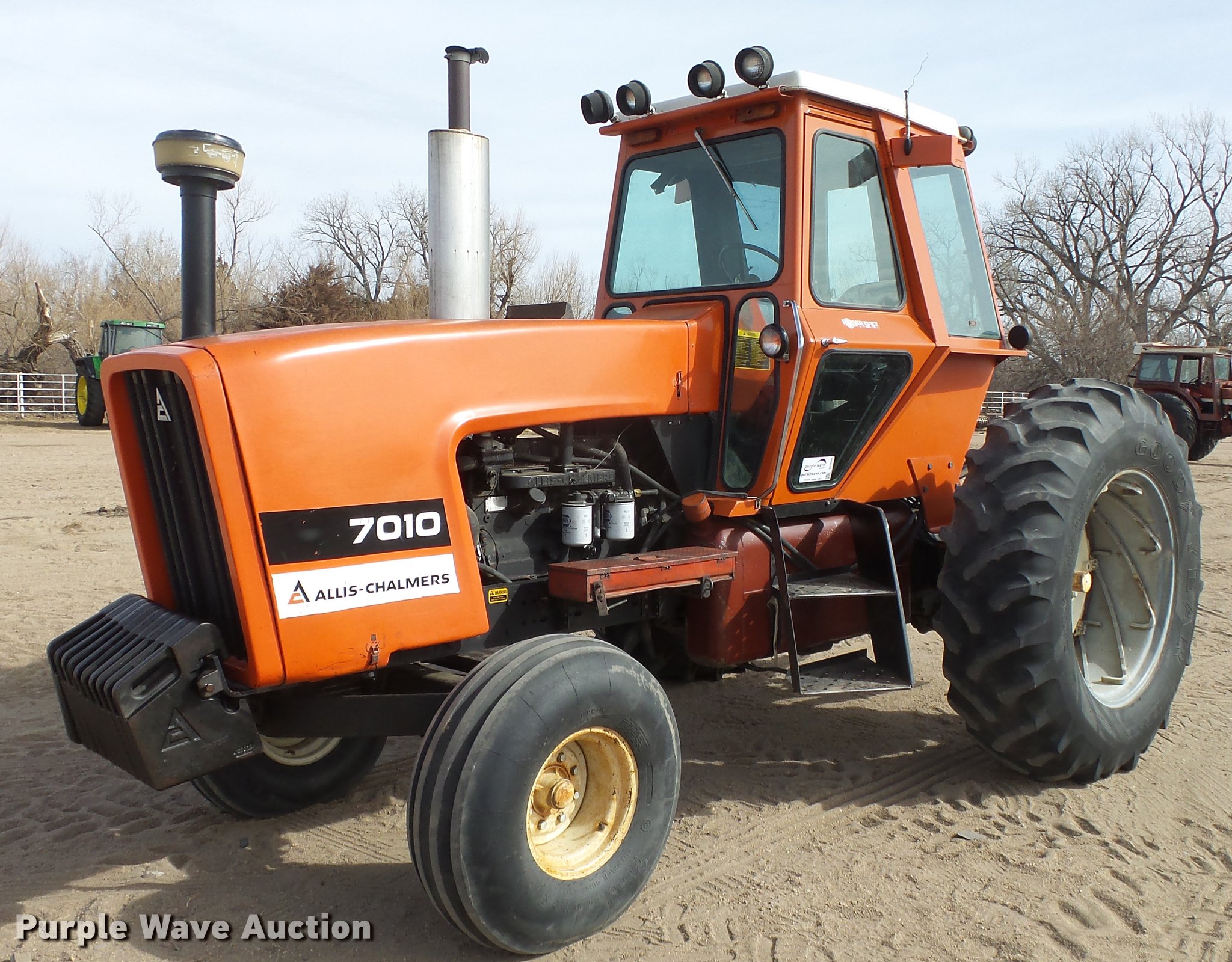

Allis Chalmers 7010
Allis Chalmers 7010 — Row-Crop tractor · 107 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
107 hp
Max power
65.5 kW
Weight
5107 kg
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built2,436Reference
Original price$35,311Reference
Two-wheel driveReference
Final drivesinboard planetaryReference
Differential lockpowerReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Accousta cab standard with heat. Optional air-conditioning, radio, and 8-track player. Four-post ROPS canopy optional.Reference
Engine
Allis Chalmers 4.9L 6-cyl dieselReference
Drawbar (tested)66.4 kWReference
Allis Chalmers 649TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement4.9 LReference
Bore/Stroke98 x 108 mmReference
Air cleanerdual paper elementsReference
Compression16.25:1Reference
Rated RPM2300Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity24.6 LReference
Power at rated engine speed79.4 kWReference
Max power65.5 kWReference
Power at rated engine speed79.6 kWReference
Max power66.4 kWReference
Transmission
16-speed partial power shiftReference
20-speed partial power shiftReference
12-speed partial power shiftReference
TransmissionAllis-Chalmers Power DirectorReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
Oil capacity28.0 LReference
Four gears plus reverse with Slow and Fast ranges. Two-speed power shift (low/high) controlled by foot buttons.Reference
Gears20 forward and 4 reverseReference
Five gears in two ranges (slow/fast) with two-range power shift. Power shift controlled by foot buttons.Reference
TransmissionAllis-Chalmers Power ShiftReference
Gears12 forward and 2 reverseReference
Six gears in two ranges. Power shift between gears in range.Reference
PTO & Hydraulics
PTO (tested)79.6 kWReference
Typeclosed centerReference
Valves2Reference
Pump flow83.3 lpmReference
Pump flow51.1 lpmReference
Total flow170.3 lpmReference
Steering flow36.0 lpmReference
Rear TypeIII/IIReference
Rear lift (at 24"/610mm)3030 kgReference
Rear PTOindependentReference
Rear PTO Type540 1000Reference
Power at rated PTO speed80.2 kWReference
Power at rated PTO speed79.3 kWReference
Capacities
Fuel204.4 LReference
Fuel49.2 LReference
Rear diff.63.2 LReference
Dimensions
Wheelbase269 cmReference
Weight5107 kgReference
Front tire10.00-16Reference
Rear tire18.4-38Reference
Ag front10.00-16Reference
Ag rear18.4-38Reference
Ag front11.00-16Reference
Ag front14L-16Reference
Ag front18.4x16Reference
Ag rear24.5-32Reference
Ag rear30.5-32Reference
Ag rear20.8-34Reference
Ag rear20.8-38Reference
Ag rear23.1-30Reference
Ag rear18.4-42Reference
Width235 cmReference
Width301 cmReference
Operating weight5107 kgReference
Ballasted weight5801 kgReference
Clearance (front axle)53 cmReference
Clearance (rear axle)71 cmReference
Rear axle92 mmReference
Rear axle95 mmReference
Front tread152 to 223 cmReference
Rear tread162 to 226 cmReference
Steering wheel220 cmReference
Allis Chalmers 7010 attachments
front-end loaderReference
7010 Serial Numbers
Location:Above PTO shieldReference
19791001Reference
19801925Reference
19812806Reference
Final3433Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Allis Chalmers 7010 Height
Hood172 cmReference
Exhaust294 cmReference
Test results
NTTL 1345: diesel 20-speed 2WDReference
NTTL 1346: diesel 12-speed 2WDReference
Diesel 20-speed 2WDMay 1 - 13, 1980Link: Nebraska Tractor Test 1345 fileReference
PTO performanceReference
Fuel use26.5 l/hourReference
Fuel use26.1 l/hourReference
Drawbar performanceReference
Gear 5SL used for power test.Reference
Max pull4275 kgReference
Gear 1FL used for pull test.Reference
Diesel 12-speed 2WDMay 2 - 14, 1980Link: Nebraska Tractor Test 1346 fileReference
Fuel use27.3 l/hourReference
Gear 2F used for power test.Reference
Max pull4316 kgReference
Gear 3S used for pull test.Reference
Speeds
With 18.4x38 rear tires.Reference
With 15.5x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
