Tractor · 1991Unverified

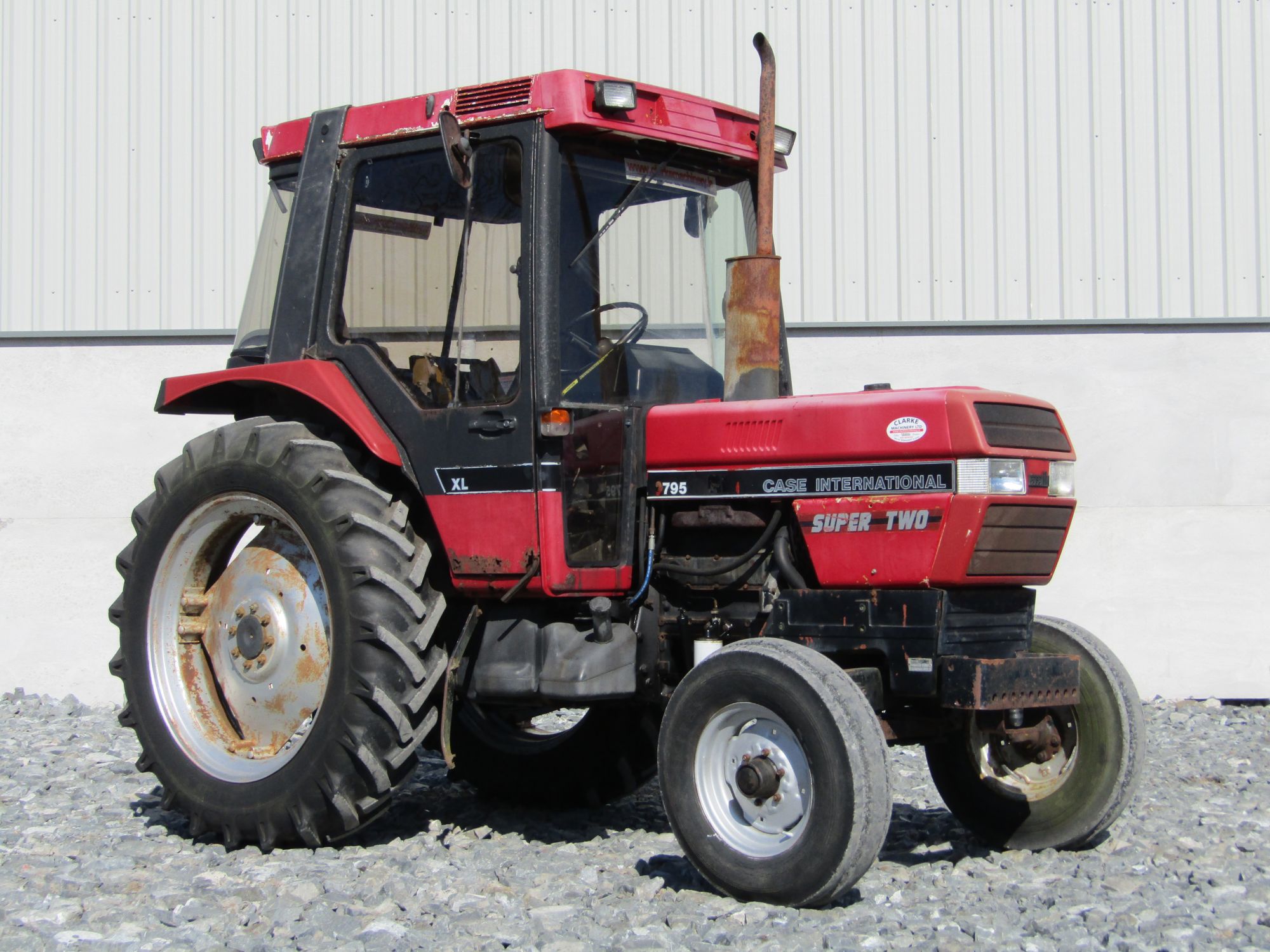

CaseIH 795

Name: CaseIH 795
Brand: CaseIH

CaseIH 795 — 95 Utility Series · 69 hp. Reference specifications; pending source verification.

The CaseIH 795 is a tractor with a rated output of 69 hp, positioning it within the middle of its class in terms of power. It was manufactured from 1991 to 1994. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine, driving through a mechanical front-wheel drive with a hydrostatic transmission. Its listed weight ranges from 6376 to 7480 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

69 hp

Weight

6376 to 7480 pounds

Catalogue coverage

Variants represented

Richest spec table

39 rows

Recorded power

69 hp

Recorded weight

2892 kg

Transmissions

16-speed

Production years

1991-1994

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Utility tractorReference

Built in Doncaster, EnglandReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post ROPS. Cab available in the 795 XL version.Reference

Engine

CaseIH 4.0L 4-cyl dieselReference

Fuel tank112.0 LReference

Engine57.4 kWReference

CaseIH D-246Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 128 mmReference

Power57.4 kWReference

Fuel systemdirect injectionReference

Rated RPM2300Reference

Torque256.0 NmReference

Torque RPM1600Reference

Transmission

16-speedReference

8-speedReference

Gears16 forward and 8 reverseReference

Gears8 forward and reverseReference

PTO & Hydraulics

PTO (claimed)51.5 kWReference

Rear PTO Type540/1000Reference

Dimensions

2WD Wheelbase224 cmReference

4WD Wheelbase216 cmReference

Weight6376 to 7480 poundsReference

Front tire10.00x16Reference

Rear tire16.9x34 (2WD)Reference

Standard tires (ag)Front: 10.00x16. Rear: 16.9x34 (2WD)Reference

Standard tires (ag)Front: 12.4x24. Rear: 16.9x34 (4WD)Reference

Length374 cmReference

Height (cab)264 cmReference

2WD Weight2892 kgReference

4WD Weight3392 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
