Tractor · 2004Unverified

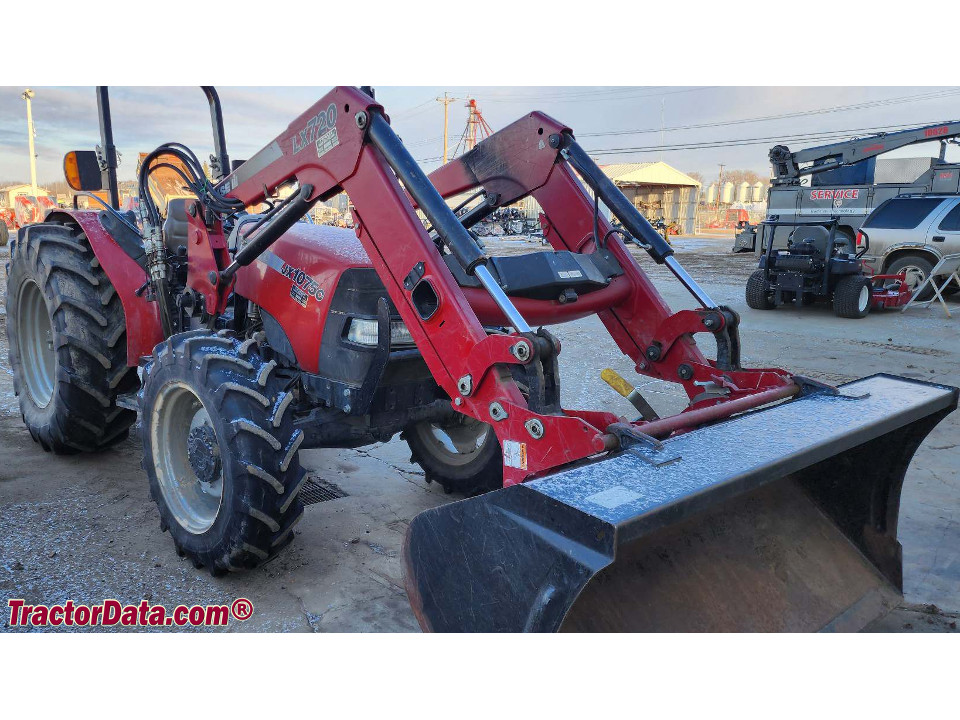

CaseIH JX1075C
CaseIH JX1075C — JXC Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Max power
48.1 kW
Weight
6085 to 6615 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Utility tractorReference
Built in Jesi, ItalyReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Iveco 2.9L 3-cyl dieselReference
Fuel tank73.8 LReference
Engine (gross)55.9 kWReference
Drawbar (tested)41.2 kWReference
IvecoReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke104 x 115 mmReference
Power (gross)55.9 kWReference
Fuel systemdirect injectionReference
Air cleanerdual paper elementsReference
Pre-heatingthermostartReference
Compression18.0:1Reference
Rated RPM2300Reference
Starter volts12Reference
Max power48.1 kWReference
Power at rated engine speed47.6 kWReference
Max power41.2 kWReference
Transmission
16-speed mechanical shuttleReference
16-speed power shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Typepower shuttleReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)48.1 kWReference
Typeopen centerReference
Pressure190.0 barReference
Valves1 to 4Reference
Pump flow64.0 lpmReference
Steering flow35.6 lpmReference
Rear TypeIIReference
Controlmechanical lower-link draft sensing.Reference
Rear lift1796 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type540 (1.375)Reference
Power at rated PTO speed47.5 kWReference
Dimensions
2WD Wheelbase213 cmReference
4WD Wheelbase206 cmReference
Weight6085 to 6615 poundsReference
2WD Length395 cmReference
4WD Length391 cmReference
Width176 cmReference
2WD Operating2760 kgReference
4WD Operating3000 kgReference
Ballasted3485 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps65Reference
Cab Charging amps85Reference
Battery CCA730Reference
Battery volts12Reference
CaseIH JX1075C Height
ROPS242 cmReference
ROPS192 cmReference
Cab232 cmReference
Test results
Diesel 16-speed 4WDOctober 1, 2003 - February 1, 2004Link: OCED Tractor Test 2114 fileReference
PTO performanceReference
Fuel use15.1 l/hourReference
Fuel use14.8 l/hourReference
Drawbar performanceReference
Gear 12 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
