Tractor · 2002Unverified

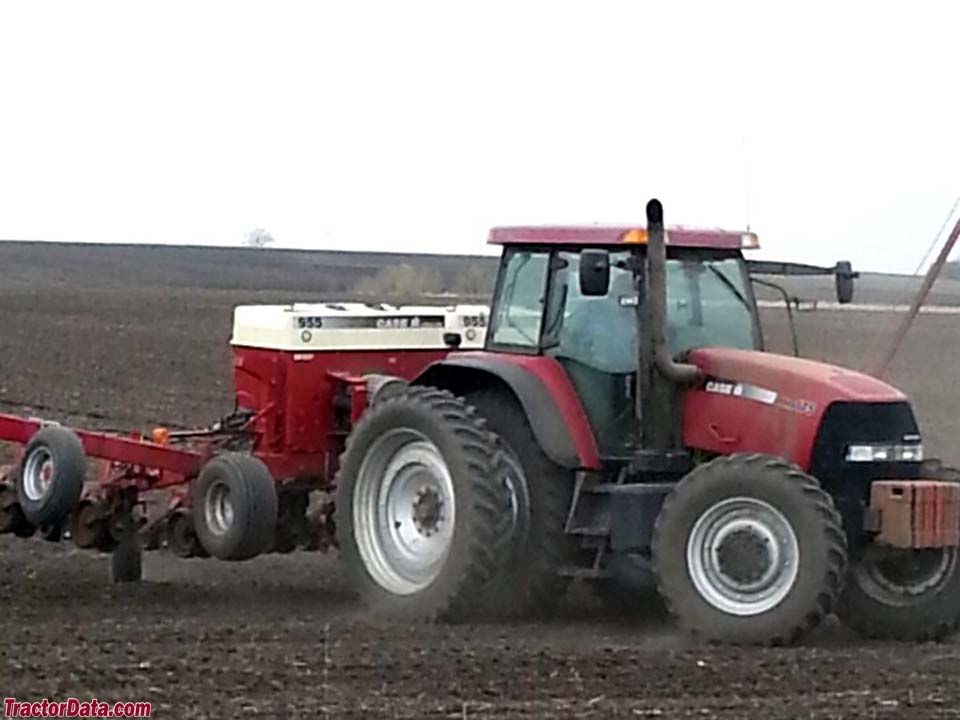

CaseIH MXM175 Maxxum

Name: CaseIH MXM175 Maxxum
Brand: CaseIH

CaseIH MXM175 Maxxum — Maxxum Series · 151 hp. Reference specifications; pending source verification.

The CaseIH MXM175 Maxxum is a tractor model rated at 151 horsepower, categorising it among the higher-powered machines in its class. Manufactured from 2002 to 2007, it is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. The listed weight of the model is 7164 kilograms. It is suited to handling jobs of approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

151 hp

Max power

119.9 kW

Weight

7164 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

151 hp

Recorded weight

7164 kg

Transmissions

19-speed full power shift

Production years

2002-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

The Case IH MXM175 is similar to the New Holland TM175.Reference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

CNH 7.5L 6-cyl dieselReference

Engine129.8 kWReference

Drawbar (tested)92.2 kWReference

CNH GenesisReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.5 LReference

Bore/Stroke112 x 127 mmReference

Power129.8 kWReference

Air cleanerdual paper elementsReference

Compression17.0:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity26.1 LReference

Max power119.9 kWReference

Power at rated engine speed112.8 kWReference

Max power92.2 kWReference

Transmission

19-speed full power shiftReference

Typefull power shiftReference

Gears19 forward and 6 reverseReference

PTO & Hydraulics

PTO (claimed)108.1 kWReference

PTO (tested)119.9 kWReference

Hydraulic system89.9 LReference

Typeclosed-center load sensingReference

Capacity89.9 LReference

Pressure189.6 barReference

Valves4 to 5Reference

Pump flow120.0 lpmReference

SCV flow98.4 lpmReference

Total flow184.3 lpmReference

Steering flow64.3 lpmReference

Rear TypeIII/IIReference

Controlelectronic lower-link sensingReference

Rear lift (at 24"/610mm)7749 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Power at rated PTO speed115.0 kWReference

Capacities

Fuel397.4 LReference

Dimensions

2WD Wheelbase283 cmReference

4WD Wheelbase285 cmReference

Weight7164 kgReference

2WD Length467 cmReference

4WD Length481 cmReference

Height (cab)288 cmReference

Height (cab)302 cmReference

4WD Operating weight7164 kgReference

Rear axle104 by 2844 mmReference

4WD Front tread152 to 223 cmReference

Rear tread152 to 223 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Battery CCA1300Reference

Battery volts12Reference

Battery AH176Reference

Test results

Diesel 19-speed 4WDSeptember 1, 2003 - April 1, 2004Link: OCED Tractor Test 2143 fileReference

PTO performanceReference

Fuel use34.1 l/hourReference

Fuel use36.0 l/hourReference

Fuel use35.6 l/hourReference

Drawbar performanceReference

Gear 9 used for power test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
