Tractor · 2018Unverified

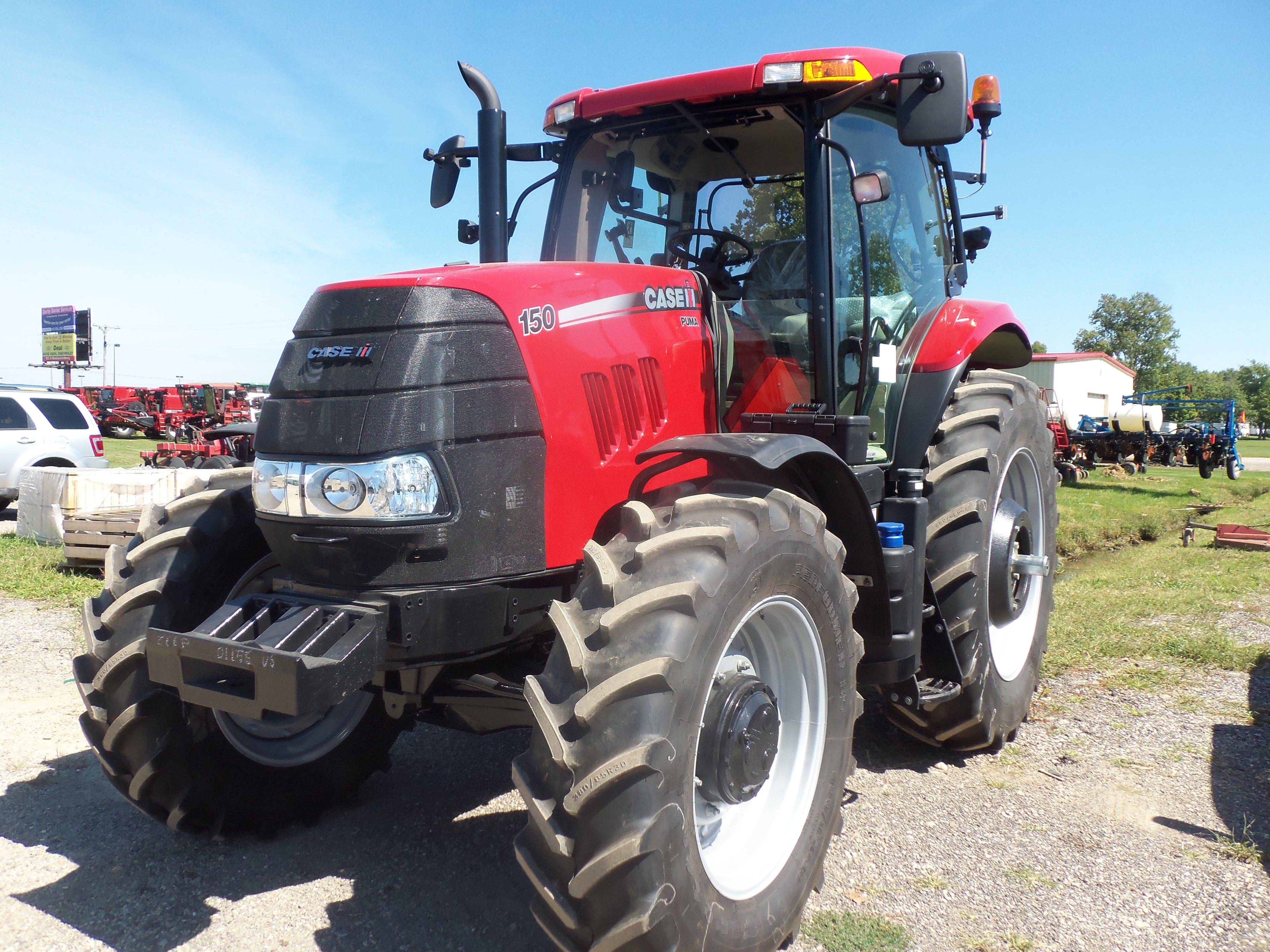

CaseIH Puma 150 X

Name: CaseIH Puma 150 X
Brand: CaseIH

CaseIH Puma 150 X — Puma Series · 150 hp. Reference specifications; pending source verification.

The CaseIH Puma 150 X is a tractor with a rating of 150 hp, positioning it among the more powerful models in its class. Manufactured in 2018, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. Its capabilities extend to fields of approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

150 hp

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

150 hp

Transmissions

18-speed partial power shift

Production years

2018-2018

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in St. Valentin, AustriaReference

Four-wheel driveReference

Differential lockrear standardReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank330.1 LReference

Exhaust fluid (DEF)48.1 LReference

Engine (gross)111.9 kWReference

Engine (max)123.0 kWReference

FPTReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsStage IVReference

Rated Power (gross)111.9 kWReference

Maximum Power (gross)123.0 kWReference

Rated RPM2200Reference

Torque699.7 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

18-speed partial power shiftReference

19-speed partial power shiftReference

Typepartial power shiftReference

Gears18 forward and 6 reverseReference

Gears19 forward and 6 reverseReference

PTO & Hydraulics

Typepressure flow compensatedReference

Pressure210.0 barReference

Rear valves4Reference

Mid valves3Reference

Pump flow110.1 lpmReference

Rear TypeIII/IIReference

Controlelectronic draft controlReference

Rear lift (at 24"/610mm)6616 kgReference

Front lift3571 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000 (1.375)Reference

Rear PTO Type540/1000/1000E (1.375)Reference

Engine RPM540@1969Reference

Engine RPM540E@1546Reference

Engine RPM1000@1893Reference

Engine RPM1000E@1621Reference

Front PTO Type1000Reference

Engine RPM1000@1895Reference

Dimensions

Front tire380/85R28Reference

Rear tire460/85R38Reference

Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference

Flange rear axleReference

Bar rear axle2489 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Charging amps200Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
