Tractor · 2014Unverified

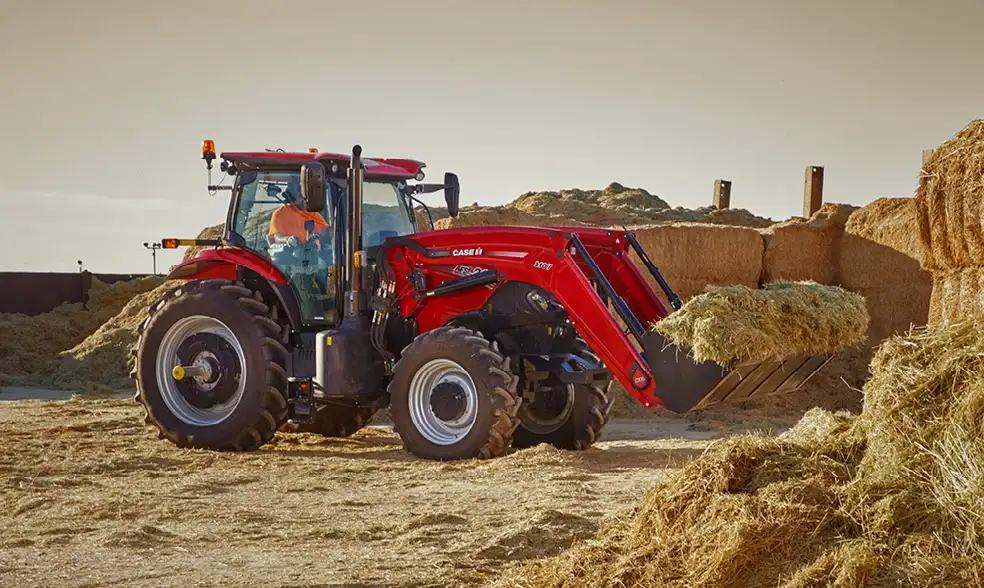

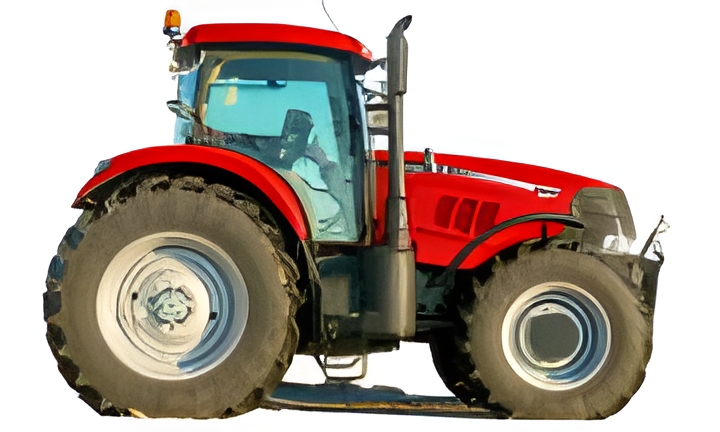

CaseIH Puma 220
CaseIH Puma 220 — Model year 2014-20202021-2025 · 193 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
193 hp
Max power
156.3 kW
Weight
15900 to 16800 pounds
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in Basildon, EnglandReference
Original price$207,893 (2015 CVT )Reference
Original price$195,731 (2015 power shift )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank389.9 LReference
Exhaust fluid (DEF)48.1 LReference
Engine164.1 kWReference
Drawbar (tested)116.7 kWReference
Power shift7212 kgReference
FPTReference
turbocharged with air-to-air aftercooling dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power164.1 kWReference
Maximum Power193.9 kWReference
Fuel systemelectronic common railReference
Cooling systemviscous fanReference
Cooling systemreversibleReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power156.3 kWReference
Power at rated engine speed143.6 kWReference
Max power116.7 kWReference
Transmission
18-speed full power shiftReference
continuously variable transmission (CVT)Reference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)141.7 kWReference
PTO (tested)156.3 kWReference
Typeclosed center pressure flow compensatingReference
Valves3 to 5Reference
Pump flow113.6 lpmReference
Pump flow149.9 lpmReference
Total flow177.9 lpmReference
Total flow214.2 lpmReference
Steering flow64.3 lpmReference
Rear TypeII/IIINReference
Rear lift5800 kgReference
Rear lift6804 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type1000/1000E (1.75)Reference
Power at rated PTO speed153.5 kWReference
Dimensions
Wheelbase288 cmReference
Weight15900 to 16800 poundsReference
Front tire420/85R30Reference
Rear tire520/85R42Reference
Standard tires (ag)Front: 420/85R30. Rear: 520/85R42Reference
CVT7620 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Battery volts12Reference
Capacities
Max capacity13000 kgReference
Test results
Diesel CVT 4WDJuly 2015 - March 2016, Link: OCED Tractor Test 2962 fileReference
PTO performanceReference
Fuel use42.4 l/hourReference
Fuel use40.9 l/hourReference
Drawbar performanceReference
Pull at 10.0 KPHReference
Max pull8067 kgReference
Pull at 7.0 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
