Tractor · 1970Unverified

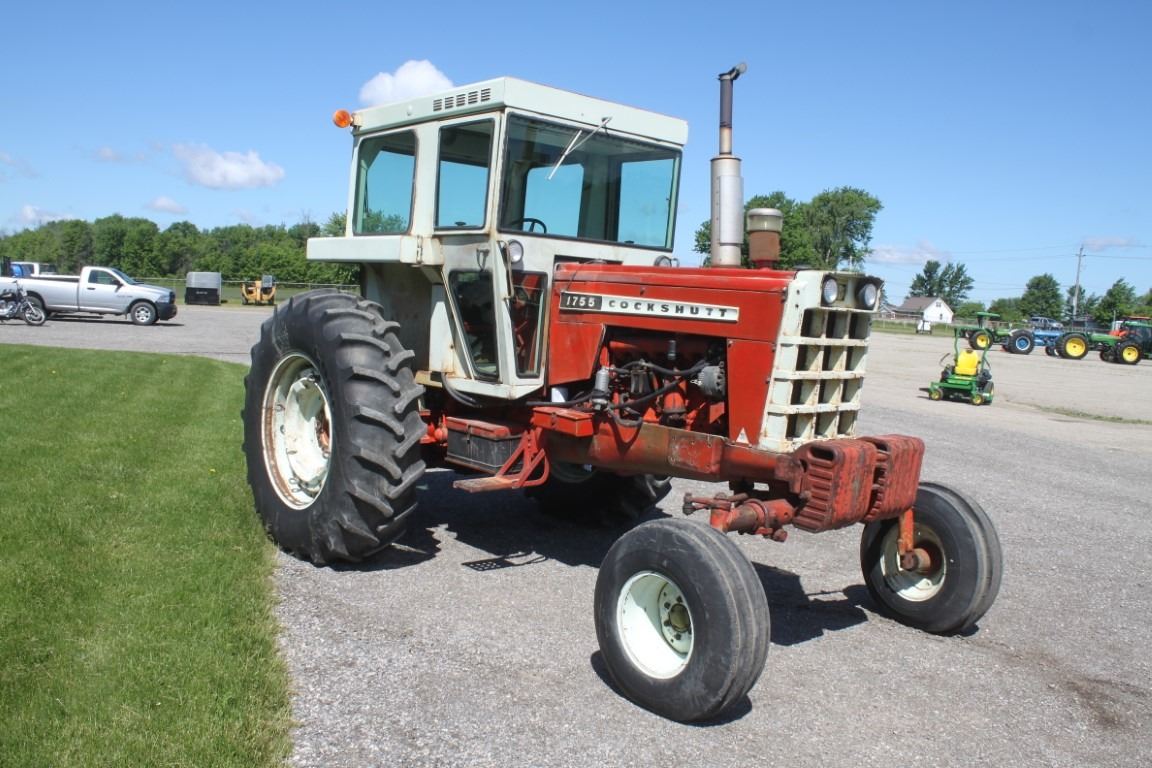

Cockshutt 1755

Name: Cockshutt 1755
Brand: Cockshutt

Cockshutt 1755 — 55 Series · 87 hp. Reference specifications; pending source verification.

The Cockshutt 1755 is a tractor model with a rated power output of 87 hp, a mid-range figure for its class. It was manufactured from 1970 to 1975. The vehicle features a 6-cylinder diesel liquid-cooled engine and a four-wheel drive system with powershift transmission. The listed operating weight of the Cockshutt 1755 is 4354 kg, making it suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

87 hp

Max power

55.1 kW

Weight

4354 kg

Catalogue coverage

Variants represented

Richest spec table

99 rows

Recorded power

87 hp

Recorded weight

4354 kg

Transmissions

6-speed gear

Production years

1970-1975

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCockshutt (a part of White)Reference

Row-Crop tractorReference

Original price was $11,500 in 1975Reference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic dry disc brakesReference

Open operator station. Optional two-post ROPS and cab.Reference

Engine

Waukesha-Oliver 5.1L 6-cyl dieselReference

Waukesha-Oliver 4.6L 6-cyl gasolineReference

Drawbar (tested)55.1 kWReference

Waukesha-OliverReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.1 LReference

Bore/Stroke98 x 111 mmReference

Air cleanerdryReference

Compression16:1Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity7.6 LReference

Coolant capacity18.9 LReference

gasolineReference

Displacement4.6 LReference

Bore/Stroke98 x 102 mmReference

Compression8.5:1Reference

Power at rated engine speed64.8 kWReference

Max power55.1 kWReference

Transmission

6-speed gearReference

18-speed partial power shiftReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutch305mm cerametallic discReference

TransmissionHydraul-ShiftReference

Typepartial power shiftReference

Gears18 forward and 6 reverseReference

The Hydraul-Shift overs a power shift between over-, under-, and direct-drive for each gear.Reference

PTO & Hydraulics

PTO (claimed)64.1 kWReference

PTO (tested)64.8 kWReference

Hydraulic system25.5 LReference

Typeclosed centerReference

Capacity25.5 LReference

Pump flow75.7 lpmReference

Rear TypeI/IIReference

Rear TypeII/IIIReference

Rear lift1814 kgReference

Rear lift2721 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type1000Reference

Capacities

Fuel132.5 LReference

Dimensions

2WD Wheelbase261 cmReference

4WD Wheelbase219 cmReference

Weight4354 kgReference

Front tire7.50-15Reference

Rear tire18.4-34Reference

2WD Ag front7.50-15Reference

4WD Ag front13.6-24Reference

Ag rear18.4-34Reference

2WD Ag front7.50-18Reference

2WD Ag front9.50L-15Reference

2WD Ag front11.00L-15Reference

4WD Ag front14.9-24Reference

4WD Ag front14.9-26Reference

Ag rear23.1-30Reference

Ag rear20.8-34Reference

Ag rear18.4-38Reference

Ag rear16.9-38Reference

Ag rear16.9-34Reference

Ag rear15.5-38Reference

Ag rear12.4-42Reference

2WD Length405 cmReference

4WD Length387 cmReference

Width204 cmReference

Height (steering wheel)217 cmReference

Operating weight4354 kgReference

Ballasted weight6010 kgReference

2WD Ground clearance64 cmReference

4WD Ground clearance34 cmReference

2WD Front tread156 to 222 cmReference

4WD Front tread152/179/203 cmReference

Rear tread144 to 303 cmReference

1755 Serial Numbers

1970221-603Reference

1971226-445Reference

1972231-415Reference

1973238-136Reference

1974245-667Reference

1975257-515Reference

Final260-346Reference

FAQ: How to read a serial number table.Reference

Test results

Diesel 18-speed 2WDOctober 14 - 27, 1970Link: Nebraska Tractor Test 1057 fileReference

PTO performanceReference

Fuel use25.4 l/hourReference

Drawbar performanceReference

Fuel use25.0 l/hourReference

Gear 3-direct used for power test.Reference

Max pull4785 kgReference

Gear 2-under used for pull test.Reference

Speeds

With 18.4-34 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
