Tractor · 1963Unverified

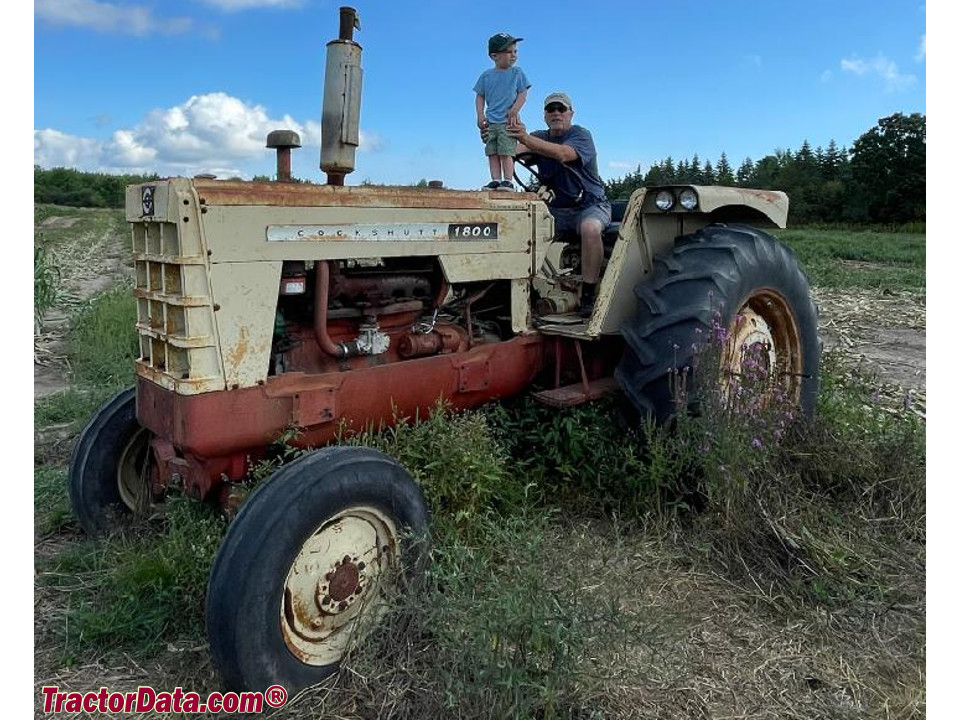

Cockshutt 1800
Cockshutt 1800 — Row-Crop tractor · 77 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
77 hp
Max power
48.1 kW
Weight
9205 to 10675 pounds
Hover a source tag to verify
Overview
ManufacturerCockshuttReference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Original price was $5,900 in 1964Reference
Two- or four-wheel driveReference
Steeringpower assistReference
Steeringhydrostatic power (Series C)Reference
Disc brakesReference
Open operator station.Reference
Engine
Waukesha-Oliver 5.1L 6-cyl dieselReference
Waukesha-Oliver 4.6L 6-cyl gasolineReference
Fuel tank138.2 LReference
Fuel tank119.2 LReference
Drawbar (tested)51.0 kWReference
Waukesha-OliverReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.1 LReference
Bore/Stroke98 x 111 mmReference
Air cleaneroil bathReference
Compression16.25:1Reference
Rated RPM2200Reference
Starter volts12Reference
gasolineReference
Displacement4.6 LReference
Bore/Stroke98 x 102 mmReference
Compression8.5:1Reference
Power at rated engine speed57.4 kWReference
Max power48.1 kWReference
Power at rated engine speed57.4 kWReference
Max power47.7 kWReference
Power at rated engine speed59.8 kWReference
Max power50.6 kWReference
Power at rated engine speed60.2 kWReference
Max power51.0 kWReference
Transmission
6-speed gearReference
12-speed partial power shiftReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
TransmissionHydra-PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Hydra-Power Drive adds a power shift between direct engine drive and a lower gear.Reference
PTO & Hydraulics
PTO (tested)60.2 kWReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase277 cmReference
Weight9205 to 10675 poundsReference
Front tire7.50-15Reference
Rear tire18.4-34Reference
Ag front7.50-15Reference
Ag rear18.4-34Reference
Length405 cmReference
Width219 cmReference
Height (steering wheel)202 cmReference
Front tread23/36 cmReference
Front tread152 to 213 cmReference
Front tread167/179 cmReference
Rear tread172 to 227 cmReference
Operating4175 kgReference
Operating4842 kgReference
Ballasted6506 kgReference
1800 Serial Numbers
Location:Serial plate on instrument panel.Reference
1962124 397 (Series B)Reference
1963129 286 (Series B)Reference
Final134 683 (Series B)Reference
1963129 286 (Series C)Reference
1964140 893 (Series C)Reference
Final149 818 (Series C)Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 831: diesel 12-speed 2WDReference
NTTL 832: diesel 12-speed 4WDReference
NTTL 839: gasoline 12-speed 2WDReference
NTTL 846: gasoline 12-speed 4WDReference
Diesel 12-speed 2WDNovember 6 - 15, 1962Link: Nebraska Tractor Test 831 fileReference
PTO performanceReference
Fuel use20.8 l/hourReference
Drawbar performanceReference
Gear 4H used for power test.Reference
Max pull4891 kgReference
Gear 2H used for pull test.Reference
Diesel 12-speed 4WDNovember 16 - December 1, 1962Link: Nebraska Tractor Test 832 fileReference
Max pull6366 kgReference
Gear 1D used for pull test.Reference
Gasoline 12-speed 2WDMay 22 - June 4, 1963Link: Nebraska Tractor Test 839 fileReference
Fuel use25.0 l/hourReference
Fuel use26.1 l/hourReference
Max pull4911 kgReference
Gasoline 12-speed 4WDSeptember 10 - 19, 1963Link: Nebraska Tractor Test 846 fileReference
Fuel use24.6 l/hourReference
Max pull6420 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
