Cockshutt 1950

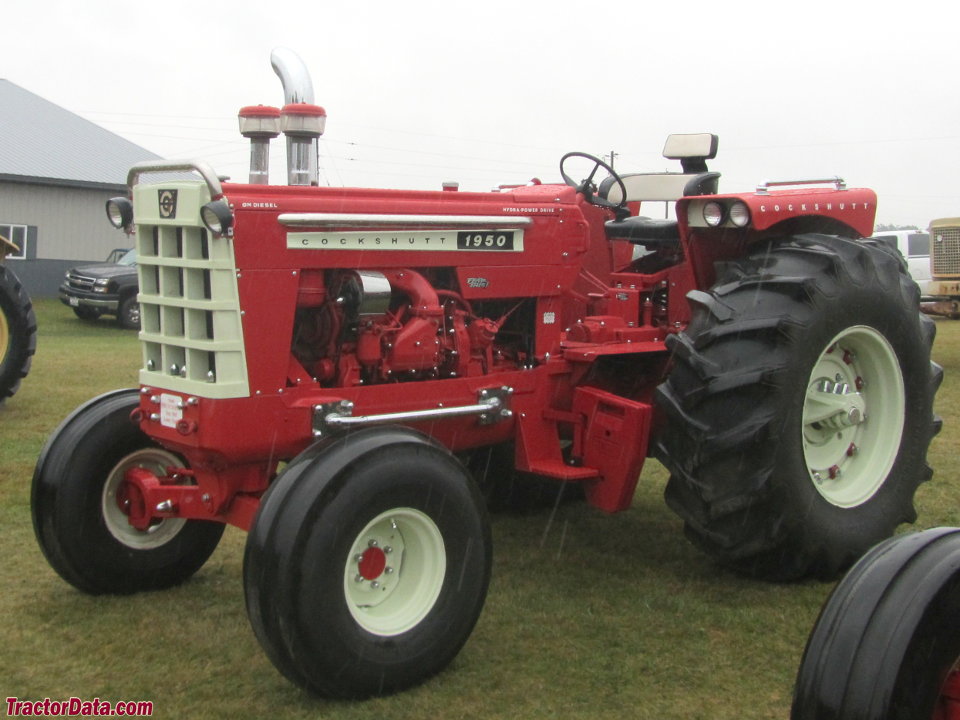

Cockshutt 1950 — Row-Crop tractor · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Max power
73.1 kW
Weight
11955 to 12975 pounds
Hover a source tag to verify
Overview
ManufacturerCockshutt (a part of White)Reference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Original price was $12,700 in 1974Reference
Two- or four-wheel driveReference
Steeringhydraulic powerReference
Differential disc brakesReference
Open operator station. Optional cab.Reference
Engine
General Motors 3.5L 4-cyl dieselReference
Drawbar (tested)73.1 kWReference
General Motors 4-53Reference
blower dieselReference
4-cylinderReference
liquid-cooledReference
Two-cycle diesel engine with blower.Reference
Displacement3.5 LReference
Bore/Stroke98 x 114 mmReference
Air cleanerdual dry elementReference
Compression21:1Reference
Rated RPM2400Reference
Starter volts12Reference
Power at rated engine speed78.9 kWReference
Max power73.1 kWReference
Power at rated engine speed78.9 kWReference
Max power69.5 kWReference
Transmission
6-speed gearReference
12-speed partial power shiftReference
TypegearReference
Gears6 forward and 2 reverseReference
TransmissionHydra-PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
The Oliver Hydra-Power transmission provided a power shift to a lower speed for each gear.Reference
PTO & Hydraulics
PTO (claimed)78.3 kWReference
PTO (tested)78.9 kWReference
Hydraulic system13.2 LReference
Typeopen centerReference
Capacity13.2 LReference
Pump flow44.3 lpmReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2400Reference
Capacities
Fuel104.1 LReference
Dimensions
Wheelbase266 cmReference
Wheelbase216 cmReference
Weight11955 to 12975 poundsReference
Front tire11.00-16Reference
Rear tire23.1-34Reference
Ag front11.00-16Reference
Ag rear23.1-34Reference
Front tread177 to 0 cmReference
Front tread167/179 cmReference
Rear tread187 to 208 cmReference
Rear tread187/208 cmReference
Operating5885 kgReference
Operating5422 kgReference
Ballasted7191 kgReference
Ballasted9037 kgReference
Cockshutt 1950 attachments
front-end loaderReference
1950 Serial Numbers
1964150492Reference
1965153016Reference
1966168190Reference
1967189008Reference
Final199186Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 871: diesel Hydra-Power 2WDReference
NTTL 872: diesel Hydra-Power 4WDReference
Diesel Hydra-Power 2WDOctober 30 - November 11, 1964Link: Nebraska Tractor Test 871 fileReference
PTO performanceReference
Fuel use26.5 l/hourReference
Drawbar performanceReference
Fuel use27.3 l/hourReference
Gear 4-H used for power test.Reference
Max pull5842 kgReference
Gear 2-H used for pull test.Reference
Diesel Hydra-Power 4WDOctober 30 - November 23, 1964Link: Nebraska Tractor Test 872 fileReference
Fuel use26.9 l/hourReference
Fuel use27.6 l/hourReference
Max pull7972 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
