Tractor · 1970Unverified

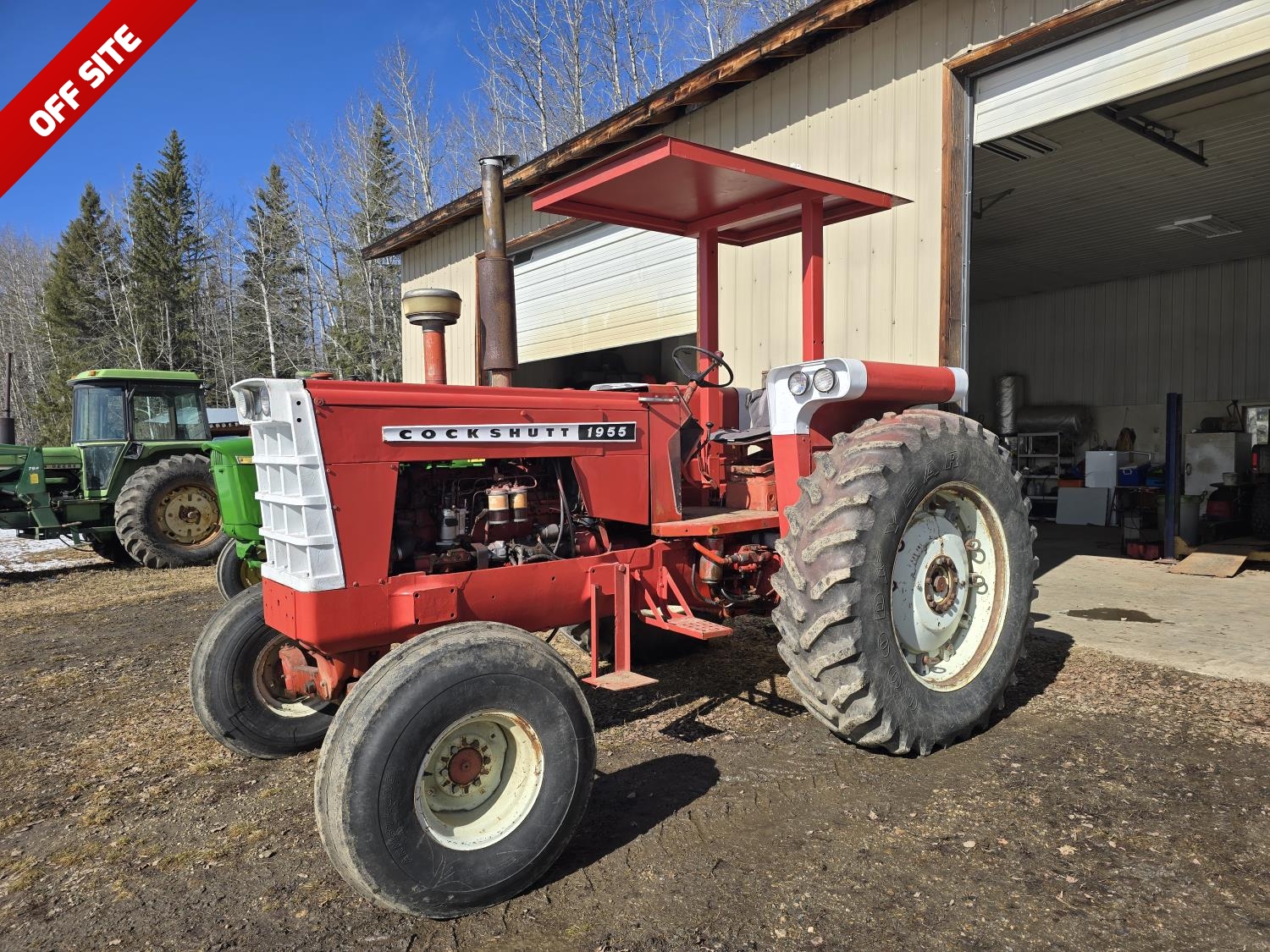

Cockshutt 1955

Name: Cockshutt 1955
Brand: Cockshutt

Cockshutt 1955 — 55 Series · 108 hp. Reference specifications; pending source verification.

The Cockshutt 1955 is a tractor with a rated power output of 108 hp, a mid-range figure for its class. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. This model was manufactured between 1970 and 1975, and has a listed operating weight of 5103 kg. It is suitable for operations spanning approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

108 hp

Max power

67.4 kW

Weight

5103 kg

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

108 hp

Recorded weight

5103 kg

Transmissions

6-speed gear

Production years

1970-1975

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCockshutt (a part of White)Reference

Row-Crop tractorReference

Original price was $14,250 in 1974Reference

Two- or four-wheel driveReference

Power steeringReference

Differential hydraulic dry disc brakesReference

Open operator station. Optional two-post ROPS and cab.Reference

Engine

Oliver-Waukesha 5.1L 6-cyl dieselReference

Fuel tank132.5 LReference

Drawbar (tested)67.4 kWReference

Oliver-WaukeshaReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.1 LReference

Bore/Stroke98 x 111 mmReference

Air cleanerdryReference

Rated RPM2400Reference

Starter volts12Reference

Coolant capacity18.9 LReference

Power at rated engine speed80.7 kWReference

Max power67.4 kWReference

Transmission

6-speed gearReference

18-speed partial power shiftReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutch330mm cerametallic discReference

TransmissionHydraul-ShiftReference

Typepartial power shiftReference

Gears18 forward and 6 reverseReference

The Hydraul-Shift overs a power shift between over-, under-, and direct-drive for each gear.Reference

PTO & Hydraulics

PTO (claimed)80.5 kWReference

PTO (tested)80.7 kWReference

Typeclosed centerReference

Pump flow75.7 lpmReference

Rear TypeII/IIIReference

Rear lift2721 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Dimensions

2WD Wheelbase261 cmReference

4WD Wheelbase219 cmReference

Weight5103 kgReference

Front tire11L-15Reference

Rear tire20.8-38Reference

Ag front11L-15Reference

Ag rear20.8-38Reference

2WD Length405 cmReference

4WD Length387 cmReference

Width204 cmReference

Height (steering wheel)217 cmReference

Operating weight5103 kgReference

Ballasted weight7357 kgReference

2WD Ground clearance64 cmReference

4WD Ground clearance34 cmReference

2WD Front tread156 to 222 cmReference

4WD Front tread152/179/203 cmReference

Rear tread144 to 303 cmReference

1955 Serial Numbers

1970222-304Reference

1971226-858Reference

1972232-958Reference

1973239-032Reference

1974247-871Reference

Final253-050Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Test results

Diesel 18-speed 2WDOctober 15 - 24, 1970Link: Nebraska Tractor Test 1055 fileReference

PTO performanceReference

Fuel use26.1 l/hourReference

Drawbar performanceReference

Fuel use26.5 l/hourReference

Gear 3-direct used for power test.Reference

Max pull5733 kgReference

Gear 2-under used for pull test.Reference

Speeds

With 18.4-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
