Tractor · 1986Unverified

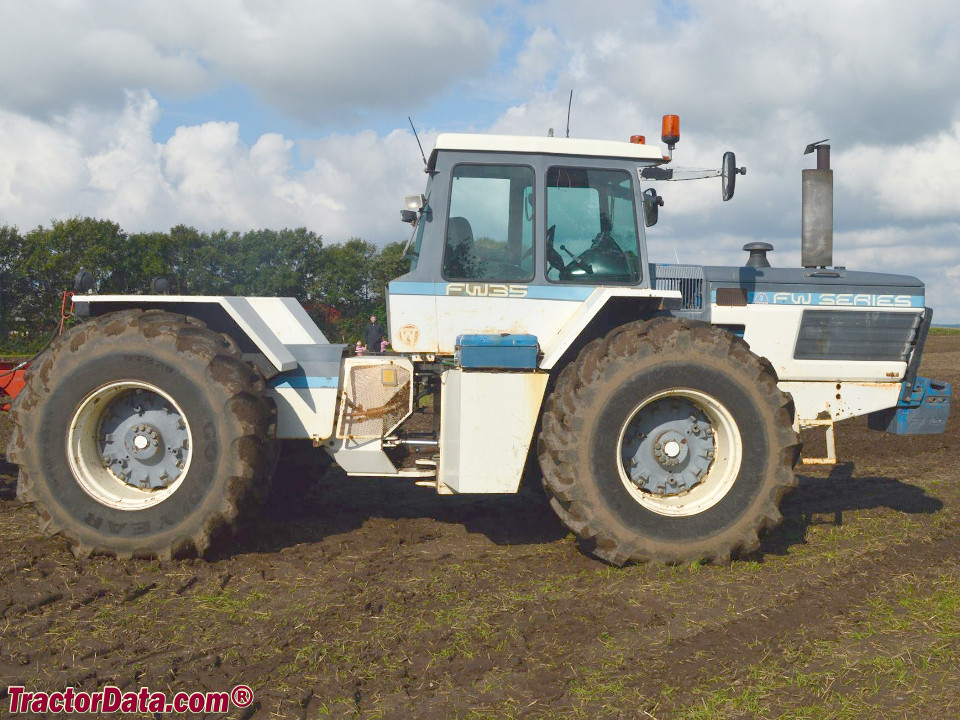

Ford FW-35

Name: Ford FW-35
Brand: Ford

Ford FW-35 — Four-wheel Drive (4WD) tractor · 168 hp. Reference specifications; pending source verification.

The Ford FW-35 is a tractor with a rated output of 168 horsepower, positioning it among the higher-powered machines in its class. It was manufactured from 1986 to 1988. The FW-35 features a 6-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system with a powershift transmission. The listed weight of the tractor is 9300 kilograms, with a capacity for tasks of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

168 hp

Weight

9300 kg

Catalogue coverage

Variants represented

Richest spec table

46 rows

Recorded power

168 hp

Recorded weight

9300 kg

Transmissions

16-speed two-speed power shift

Production years

1986-1988

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorFordReference

ManufacturerWaltannaReference

Four-wheel Drive (4WD) tractorReference

Built in Tarrington, Victoria, AustraliaReference

Four-wheel driveReference

Articulated power steeringReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Ford 6.6L 6-cyl dieselReference

Fuel tank495.1 LReference

Engine145.4 kWReference

FordReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.6 LReference

Bore/Stroke112 x 112 mmReference

Power145.4 kWReference

Rated RPM2200Reference

Torque694.3 NmReference

Torque RPM1600Reference

Starter typeelectricReference

Transmission

16-speed two-speed power shiftReference

Typetwo-speed power shiftReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)125.0 kWReference

Typeclosed center load sensingReference

Pressure172.4 barReference

Valves3Reference

Pump flow57.9 lpmReference

Pump flow75.7 lpmReference

Rear TypeIIIReference

Rear lift6860 kgReference

Rear PTO Type1000Reference

Engine RPM1000@1920Reference

Dimensions

Wheelbase342 cmReference

Weight9300 kgReference

Front tire24.5x32Reference

Rear tire24.5x32Reference

Ag front24.5x32Reference

Ag rear24.5x32Reference

Length660 cmReference

Width264 cmReference

Height (exhaust)339 cmReference

Front tread157 to 274 cmReference

Rear tread157 to 274 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
