Tractor · 1985Unverified

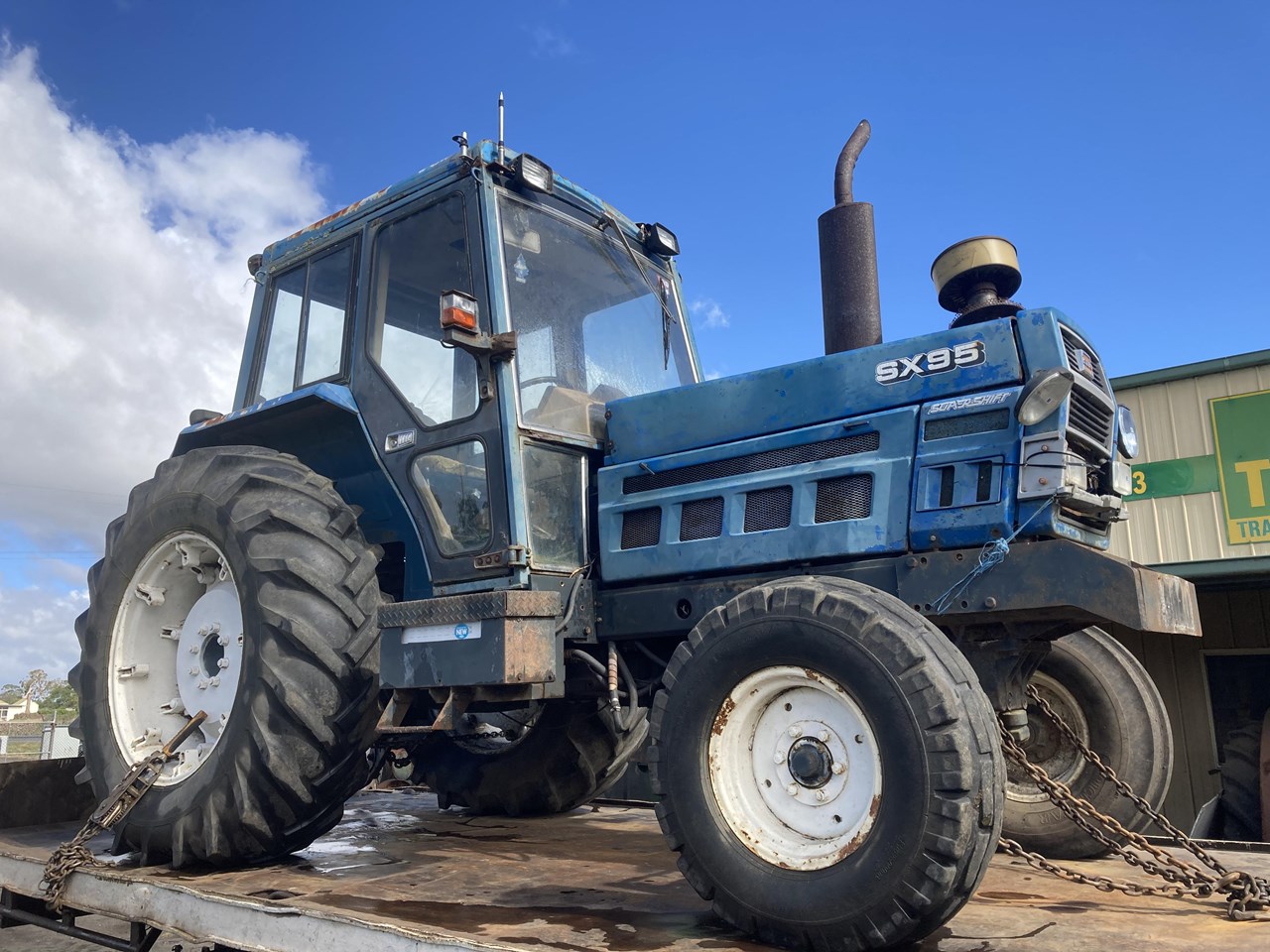

Iseki SX95
Iseki SX95 — SX Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
7937 to 9039 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab optional with air-conditioning.Reference
Engine
Isuzu 5.4L 6-cyl dieselReference
ROPS Fuel tank115.1 LReference
Cab Fuel tank135.1 LReference
Engine70.8 kWReference
Isuzu 6BB1Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke102 x 110 mmReference
Power70.8 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed syncromeshReference
24-speedReference
TypesyncromeshReference
Gears12 forward and 4 reverseReference
Clutch330.2mm dry discReference
TransmissionSuper ShiftReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Pump flow50.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3099 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1789Reference
Engine RPM1000@2000Reference
Dimensions
2WD Wheelbase250 cmReference
4WD Wheelbase252 cmReference
Weight7937 to 9039 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference
Length426 cmReference
Height (exhaust)266 cmReference
Ground clearance42 cmReference
2WD Front tread141 to 192 cmReference
4WD Front tread146 to 198 cmReference
Rear tread140 to 217 cmReference
2WD ROPS3600 kgReference
2WD Cab3900 kgReference
4WD ROPS3870 kgReference
4WD Cab4100 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH170Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
