Tractor · 1984Unverified

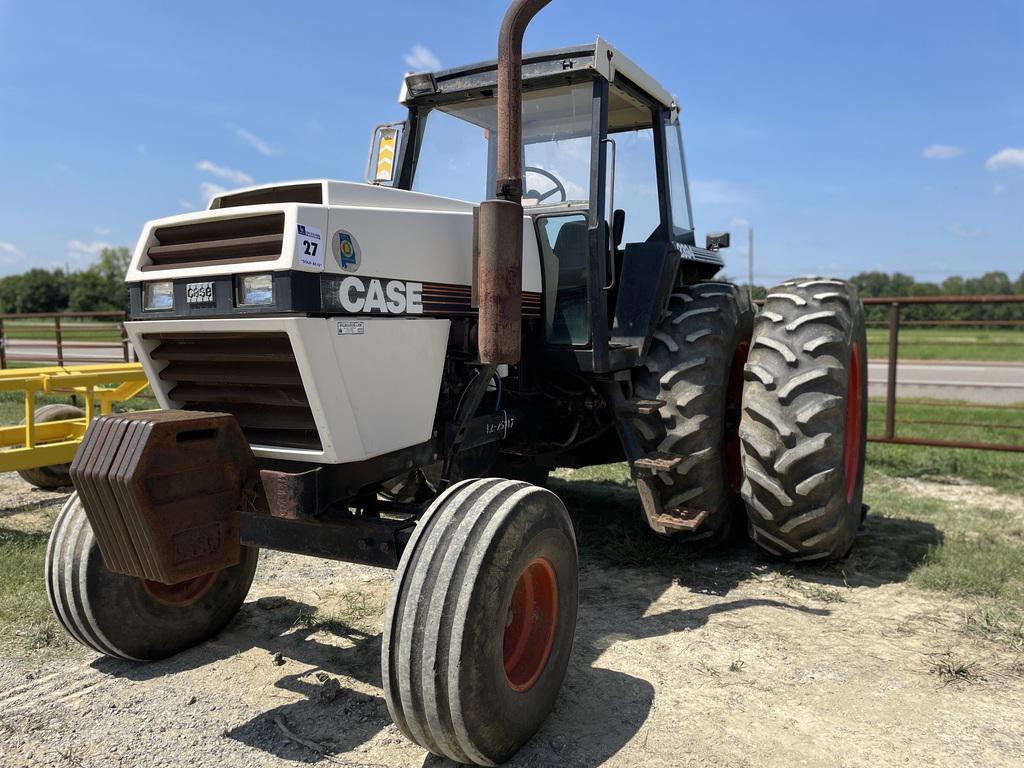

J.I. Case 2394
J.I. Case 2394 — 94 Series · 162 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
162 hp
Max power
102.7 kW
Weight
14270 to 16240 pounds
Hover a source tag to verify
Overview
ManufacturerJ.I. CaseReference
Row-Crop tractorReference
Built in Racine, Wisconsin, USAReference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Silent Guardian cab with air-conditioning.Reference
Engine
Case 8.3L 6-cyl dieselReference
Engine146.9 kWReference
Drawbar (claimed)105.9 kWReference
Drawbar (tested)102.7 kWReference
CaseReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke117 x 127 mmReference
Power146.9 kWReference
Rated RPM2100Reference
Starter volts12Reference
Oil capacity28.4 LReference
Coolant capacity41.6 LReference
Power at rated engine speed120.9 kWReference
Max power102.7 kWReference
Transmission
12-speed three-speed power shiftReference
24-speed four-speed power shiftReference
Typethree-speed power shiftReference
Gears12 forward and 3 reverseReference
Oil capacity121.1 LReference
Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.Reference
Typefour-speed power shiftReference
Gears24 forward and 3 reverseReference
Clutchhydraulic wet discReference
Six power shift gears (1-6), plus reverse, in four ranges (1-4). Reverse does not work in fourth range.Reference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)120.9 kWReference
Hydraulic system121.1 LReference
Typeclosed centerReference
Capacity121.1 LReference
Pressure155.1 barReference
Valves2 to 4Reference
Pump flow102.2 lpmReference
Steering flow30.3 lpmReference
Steering press.137.9 barReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)3515 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type1000Reference
Capacities
Fuel321.7 LReference
Fuel94.6 LReference
Max capacity9298 kgReference
Dimensions
Wheelbase299 cmReference
Weight14270 to 16240 poundsReference
Front tire11.00x16Reference
Rear tire18.4x38Reference
Ag front11.00x16Reference
Ag rear18.4x38Reference
Ag front14Lx16Reference
Ag rear24.5x32Reference
Ag rear30.5x32Reference
Ag rear20.8x38Reference
Ag rear18.4x42Reference
Ag rear20.8x42Reference
Width243 cmReference
Width304 cmReference
Bar rear axle98 by 2438 mmReference
Bar rear axle98 by 3048 mmReference
Rear tread152 to 279 cmReference
Rear tread152 to 335 cmReference
Shipping6472 kgReference
Operating7366 kgReference
2394 Serial Numbers
Location:Inside cab or on right-front frameReference
19849931802Reference
19859939020Reference
19869941573Reference
19879945454Reference
19889948517Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Charging amps105Reference
Battery volts12Reference
Test results
Diesel 24-speed 2WDJune 7 - 23, 1984Link: Nebraska Tractor Test 1527 fileReference
PTO performanceReference
Fuel use39.7 l/hourReference
Drawbar performanceReference
Fuel use39.0 l/hourReference
Gear 3-4 used for power test.Reference
Max pull7029 kgReference
Gear 2-2 used for pull test.Reference
Speeds
With 18.4x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
