Tractor · 1993Unverified

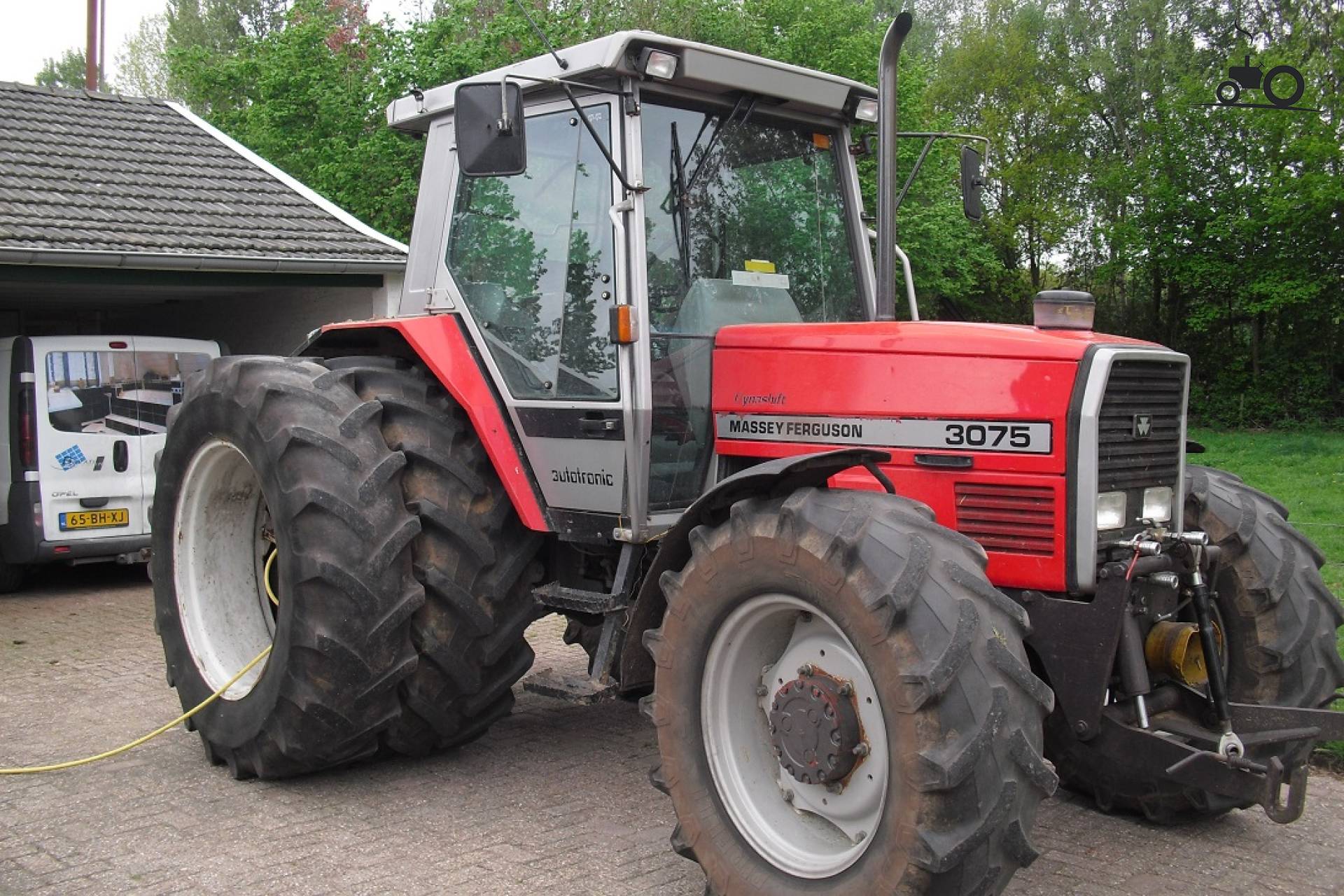

Massey Ferguson 3075

Name: Massey Ferguson 3075
Brand: Massey Ferguson

Massey Ferguson 3075 — Row-Crop tractor · 86 hp. Reference specifications; pending source verification.

The Massey Ferguson 3075 is a mid-range tractor model with an engine rating of approximately 86 hp. It was manufactured between 1993 and 1994. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive, paired with a powershift transmission. Its operating weight is listed at 8950 to 9900 pounds, suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

86 hp

Max power

66.9 kW

Weight

8950 to 9900 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

86 hp

Recorded weight

4059 kg

Transmissions

8-speed

Production years

1993-1994

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerMassey FergusonReference

Row-Crop tractorReference

Original price was $50,200 in 1994Reference

Two- or four-wheel driveReference

Cab standardReference

Engine

Perkins 4.0L 4-cyl dieselReference

Fuel tank174.1 LReference

Engine70.8 kWReference

Drawbar (tested)60.8 kWReference

PerkinsReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.0 LReference

Bore/Stroke100 x 127 mmReference

Power70.8 kWReference

Compression16:1Reference

Rated RPM2200Reference

Coolant capacity19.3 LReference

Max power66.9 kWReference

Power at rated engine speed64.2 kWReference

Max power60.8 kWReference

Transmission

8-speedReference

32-speed four-speed power shiftReference

Gears8 forward and 4 reverseReference

TransmissionDynashiftReference

Typefour-speed power shiftReference

Gears32 forward and reverseReference

PTO & Hydraulics

PTO (tested)66.9 kWReference

Valves2Reference

Pump flow60.2 lpmReference

Rear TypeIIReference

Rear lift3311 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed66.3 kWReference

Dimensions

Wheelbase255 cmReference

Weight8950 to 9900 poundsReference

Front tire14.9R24Reference

Rear tire18.4R34Reference

Ag front14.9R24Reference

Ag rear18.4R34Reference

2WD Weight4059 kgReference

4WD Weight4490 kgReference

Massey Ferguson 3075 attachments

front-end loaderReference

Test results

Diesel 32-speed 4WD7/1993Link: OCED Tractor Test 1479 fileReference

PTO performanceReference

Fuel use19.7 l/hourReference

Fuel use19.3 l/hourReference

Drawbar performanceReference

Fuel use20.1 l/hourReference

Gear 1LA used for power test.Reference

Max pull4175 kgReference

Gear 3TA used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
