Tractor · 1977Unverified

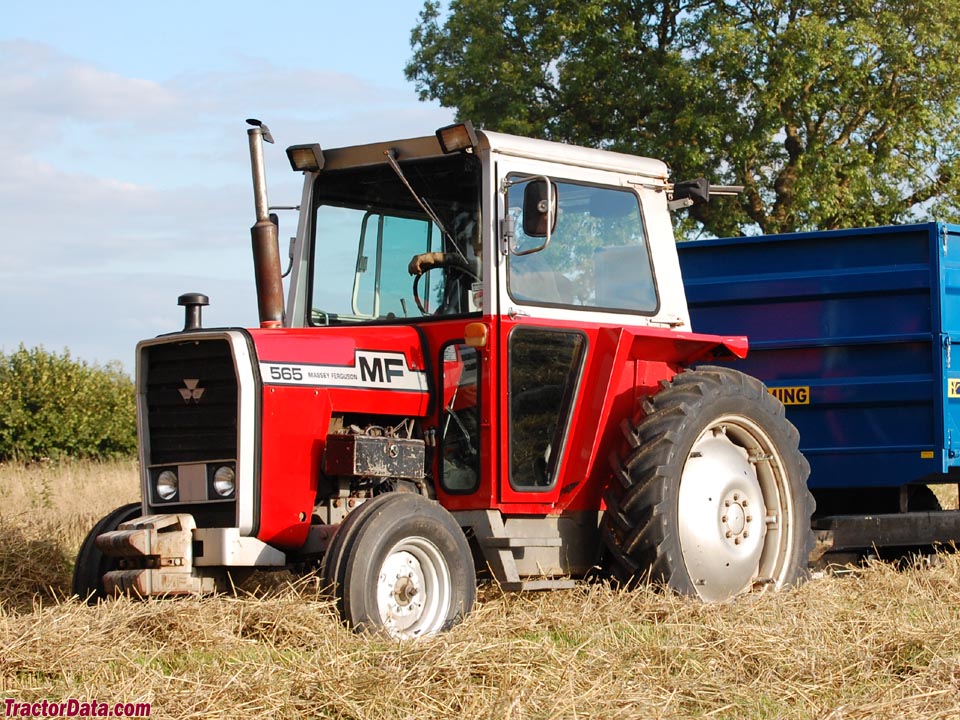

Massey Ferguson 565
Massey Ferguson 565 — 500 Series · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
2769 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Coventry, EnglandReference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with heater. ROPS available.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank79.1 LReference
Engine44.7 kWReference
Perkins A4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power44.7 kWReference
Air cleanerdryReference
Compression16:1Reference
Rated RPM2000Reference
Torque230.0 NmReference
Torque RPM2000Reference
Starter typeelectricReference
Oil capacity7.1 LReference
Coolant capacity14.2 LReference
Transmission
8-speed gearReference
12-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in high and low ranges.Reference
TransmissionMulti-PowerReference
Typetwo-speed power shiftReference
Gears12 forward and 4 reverseReference
Three gears in low and high ranges with two-speed Multi-Power power shift.Reference
PTO & Hydraulics
PTO (claimed)41.9 kWReference
Pressure137.9 barReference
Pump flow36.0 lpmReference
Total flow62.5 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1542 kgReference
Rear PTOliveReference
Rear PTOindependent optionalReference
Clutchmechanical dry disc (live)Reference
Clutchhydraulic (independent)Reference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Dimensions
Wheelbase224 cmReference
Weight2769 kgReference
Front tire7.50-16Reference
Rear tire16.9/14-30Reference
Ag front7.50-16Reference
Ag rear16.9/14-30Reference
Ag front6.00-19Reference
Ag rear12.4/11-36Reference
Ag rear14.9/13-28Reference
Length377 cmReference
Width185 cmReference
Height (cab)241 cmReference
Operating weight2769 kgReference
Clearance (drawbar)32 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
