Tractor · 1974Unverified

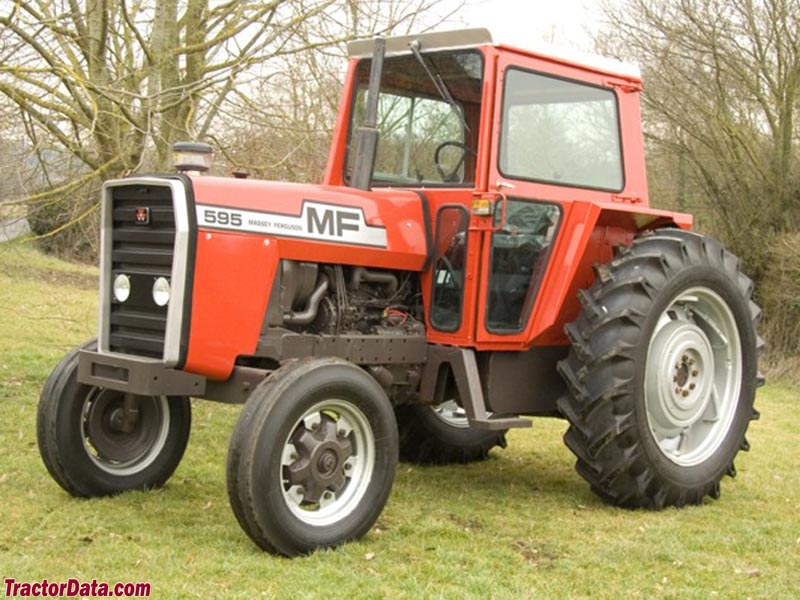

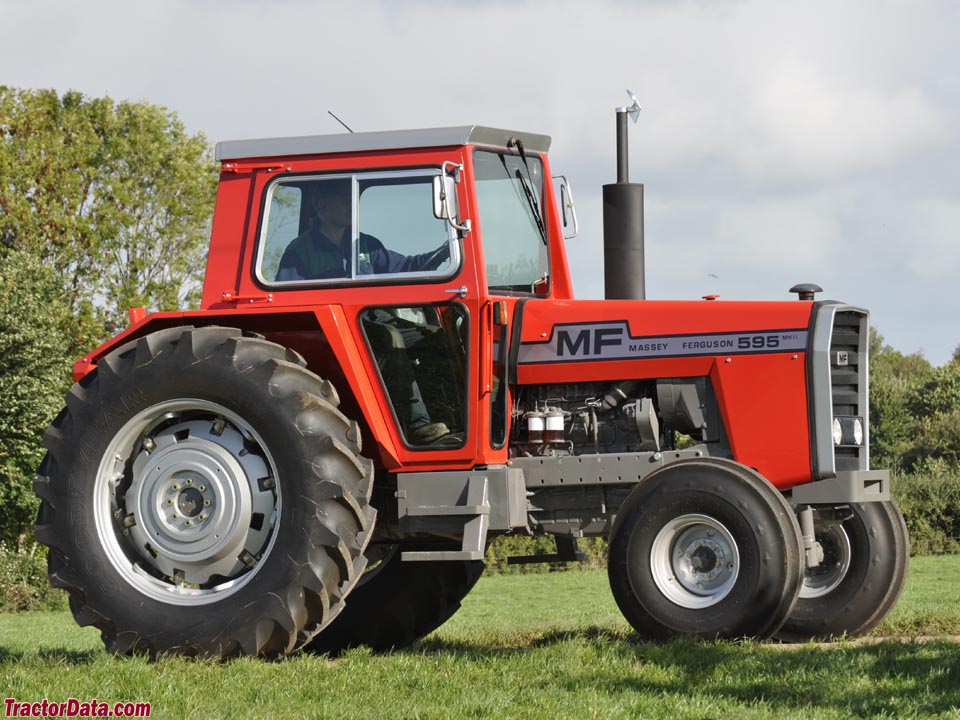

Massey Ferguson 595
Massey Ferguson 595 — Row-Crop tractor · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
9040 to 9900 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Two- or four-wheel driveReference
Final drivesoutboard planetaryReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Engine
Perkins 5.2L 4-cyl dieselReference
Fuel tank127.9 LReference
Engine64.7 kWReference
Perkins A4.318Reference
dieselReference
4-cylinderReference
liquid-cooledReference
By 1980, Massey Ferguson model 595 tractors sold in certain markets were equipped with turbochargers.Reference
Displacement5.2 LReference
Bore/Stroke114 x 127 mmReference
Power64.7 kWReference
Rated RPM2000Reference
Torque343.1 NmReference
Torque RPM1300Reference
Starter volts12Reference
Transmission
12-speed partial power shiftReference
8-speedReference
TransmissionMulti-PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Clutch305mm dry discReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure165.5 barReference
Pump flow25.4 lpmReference
Rear Type2Reference
Controlposition and draft control with top-link sensingReference
Rear lift2449 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM540@1750Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase264 cmReference
Wheelbase260 cmReference
Weight9040 to 9900 poundsReference
Front tire11.00-16Reference
Rear tire16.9-38 (2WD)Reference
Standard tires (ag)Front: 11.00-16. Rear: 16.9-38 (2WD)Reference
Standard tires (ag)Front: 12.4-28. Rear: 16.9-38 (4WD)Reference
Length446 cmReference
Height (cab)262 cmReference
Weight4100 kgReference
Weight4490 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
