Tractor · 1995Unverified

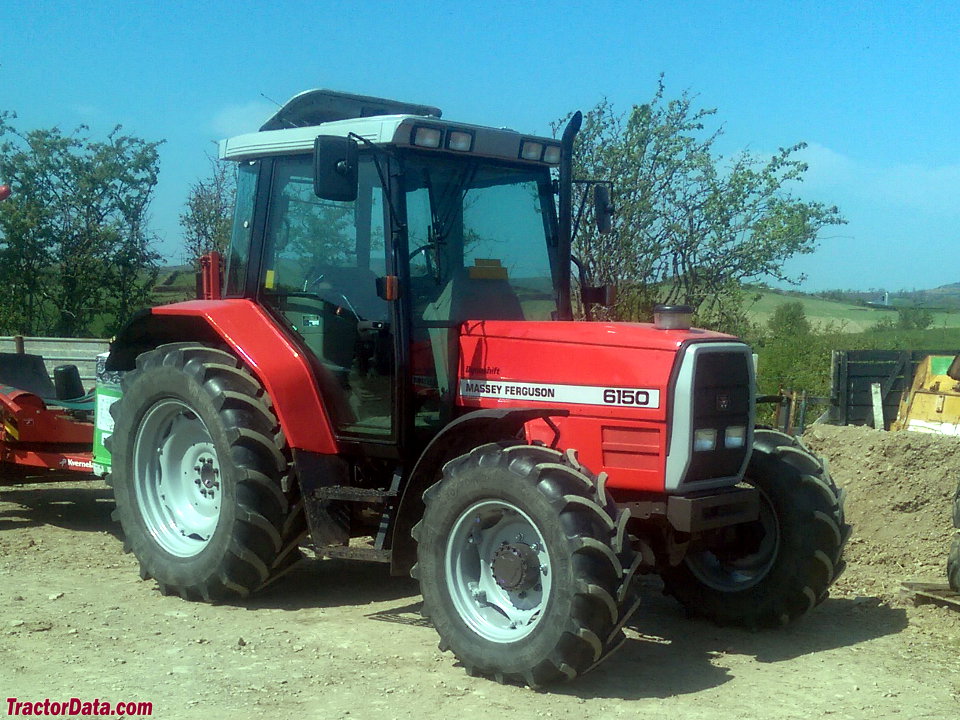

Massey Ferguson 6150
Massey Ferguson 6150 — Row-Crop tractor · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
9606 to 10224 pounds
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Row-Crop tractorReference
Original price was $47,800 in 1998Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
QuietView cab standard with air-conditioning.Reference
Engine
Perkins 4.0L 4-cyl dieselReference
Perkins 1004-4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity17.0 LReference
Transmission
16-speed synchronizedReference
32-speed four-speed power shiftReference
TransmissionSpeedshiftReference
TypesynchronizedReference
Gears16 forward and reverseReference
Clutch230mm wet discReference
Four gears in two ranges with two-speed power shift. Speedshift available with optional creeper range providing 24 total speeds forward and reverse.Reference
TransmissionDynashiftReference
Typefour-speed power shiftReference
Gears32 forward and reverseReference
Two ranges, each with four power shift gears in four synchronized ranges plus shuttle.Reference
PTO & Hydraulics
PTO (claimed)64.1 kWReference
Hydraulic system68.1 LReference
Typeopen centerReference
Capacity68.1 LReference
Pressure202.1 barReference
Valves2 to 4Reference
Pump flow56.4 lpmReference
Rear TypeIIReference
Controlelectronic draft controlReference
Rear lift (at ends)5425 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Engine RPM540@1980Reference
Engine RPM540E@1550Reference
Engine RPM1000@2000Reference
Engine RPM1000E@1550Reference
Capacities
Fuel160.1 LReference
Dimensions
Wheelbase254 cmReference
Weight9606 to 10224 poundsReference
Front tire10.00-16Reference
Rear tire18.4R-34Reference
Ag front10.00-16Reference
Ag rear18.4R-34Reference
Length411 cmReference
Width187 cmReference
Height (cab)269 cmReference
2WD Weight4357 kgReference
4WD Weight4637 kgReference
2WD Front tread145 to 247 cmReference
4WD Front tread156 to 205 cmReference
Rear tread153 to 218 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Batteries2Reference
Battery volts12Reference
Speeds
With 16.9-38 rear tires. Also available in 40 KPH version.Reference
With 16.9R38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
