Tractor · 1995Unverified

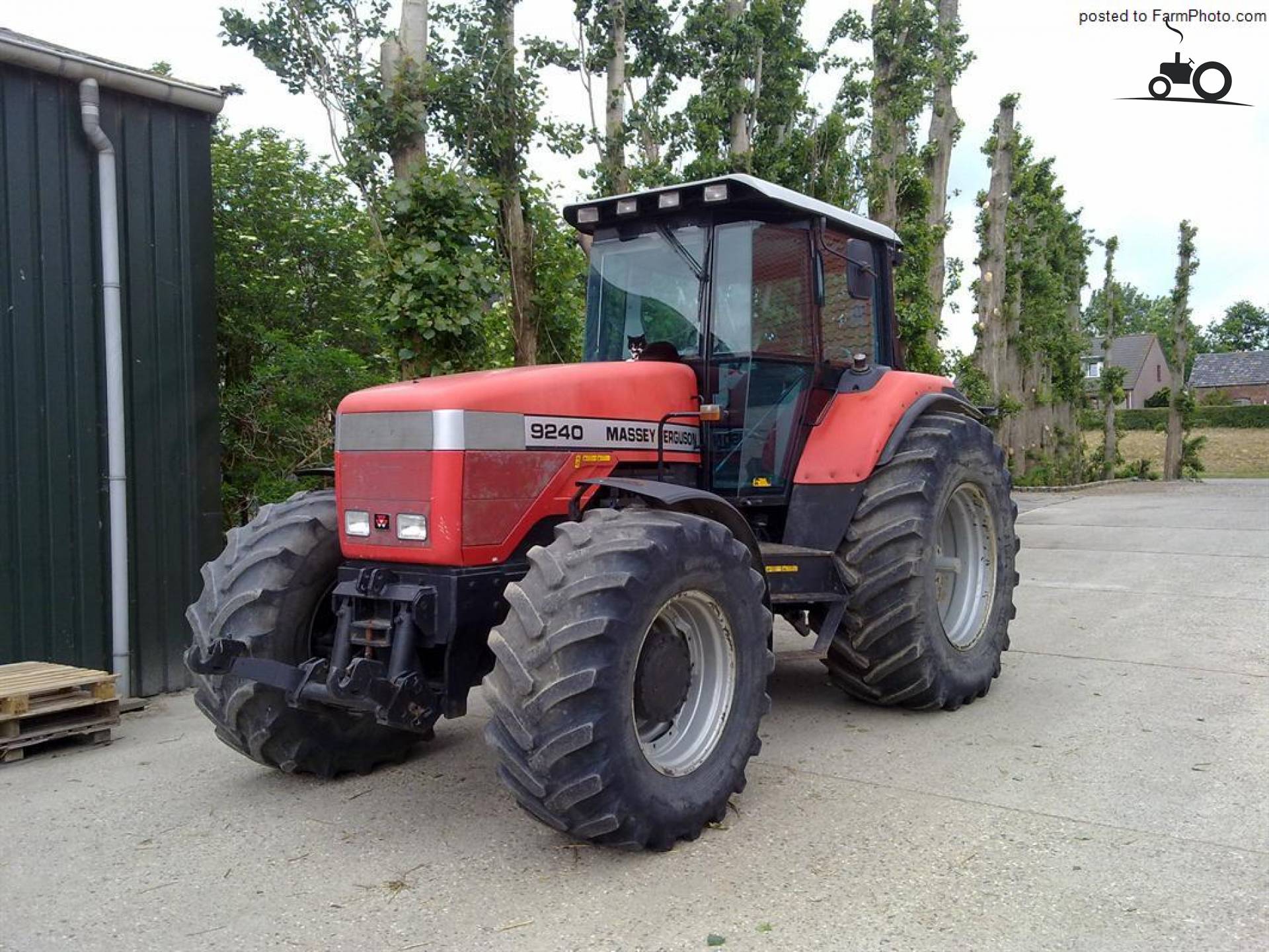

Massey Ferguson 9240
Massey Ferguson 9240 — Farm/Agricultural tractor · 210 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
210 hp
Max power
168.8 kW
Weight
9013 kg
Hover a source tag to verify
Overview
ManufacturerMassey FergusonReference
Farm/Agricultural tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Engine
CDC-Cummins 8.3L 6-cyl dieselReference
Drawbar (tested)130.9 kWReference
CDC-CumminsReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Air cleanerdual paper elementsReference
Compression16.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power168.8 kWReference
Power at rated engine speed156.3 kWReference
Max power130.9 kWReference
Transmission
18-speed full powershiftReference
Typefull powershiftReference
Gears18 forward and 9 reverseReference
PTO & Hydraulics
PTO (tested)168.8 kWReference
Rear TypeIIIReference
Rear PTO Type1000Reference
Power at rated PTO speed163.4 kWReference
Dimensions
Wheelbase292 cmReference
Weight9013 kgReference
Operating weight9013 kgReference
Ballasted weight10242 kgReference
Test results
Diesel 18-speed 4WDJune 8 - 16, 1995Link: OCED Tractor Test 1696 fileReference
PTO performanceReference
Fuel use47.3 l/hourReference
Fuel use46.2 l/hourReference
Fuel use46.6 l/hourReference
Drawbar performanceReference
Fuel use49.2 l/hourReference
Gear 8 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
