Tractor · 2001Unverified

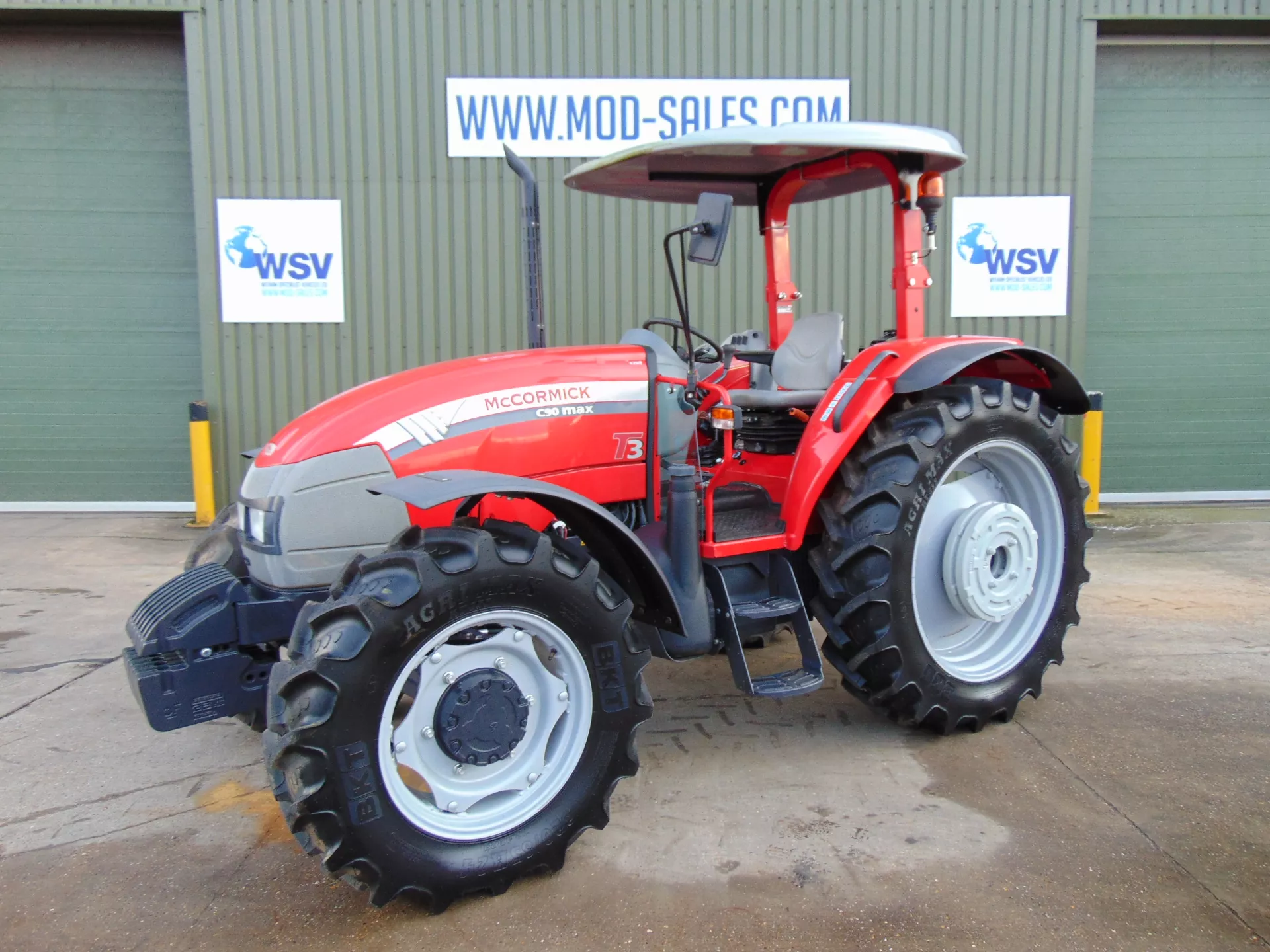

McCormick Intl C90
McCormick Intl C90 — C Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Max power
51.6 kW
Weight
5964 to 6692 pounds
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
Perkins 4.0L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine67.1 kWReference
Drawbar (tested)51.6 kWReference
PerkinsReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 127 mmReference
Power67.1 kWReference
Rated RPM2200Reference
Torque355.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Power at rated engine speed59.4 kWReference
Max power51.6 kWReference
Transmission
8-speed synchromeshReference
8-speed shuttleReference
16-speed two-speed power shiftReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
TypeshuttleReference
Gears8 forward and reverseReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)55.2 kWReference
PTO (tested)59.4 kWReference
Typeopen centerReference
Pressure172.4 barReference
Pump flow58.7 lpmReference
Rear TypeIIReference
Rear lift1661 kgReference
Rear lift2311 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1994Reference
Engine RPM1000@2000Reference
Power at rated PTO speed60.5 kWReference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase223 cmReference
Weight5964 to 6692 poundsReference
Front tire11.00-16Reference
2WD Rear tire18.4-30Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 18.4-30Reference
2WD Shipping weight2705 kgReference
4WD Shipping weight3035 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 16-speed 4WDOctober 1998 - November 1998, Link: OCED Tractor Test 1898 fileReference
PTO performanceReference
Fuel use18.9 l/hourReference
Fuel use18.2 l/hourReference
Drawbar performanceReference
Gear 1H-TA used for power test.Reference
Max pull4182 kgReference
Gear 2L-TA used for pull test.Reference
Speeds
With 18.4-30 rear tires.Reference
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
