Tractor · 2008Unverified

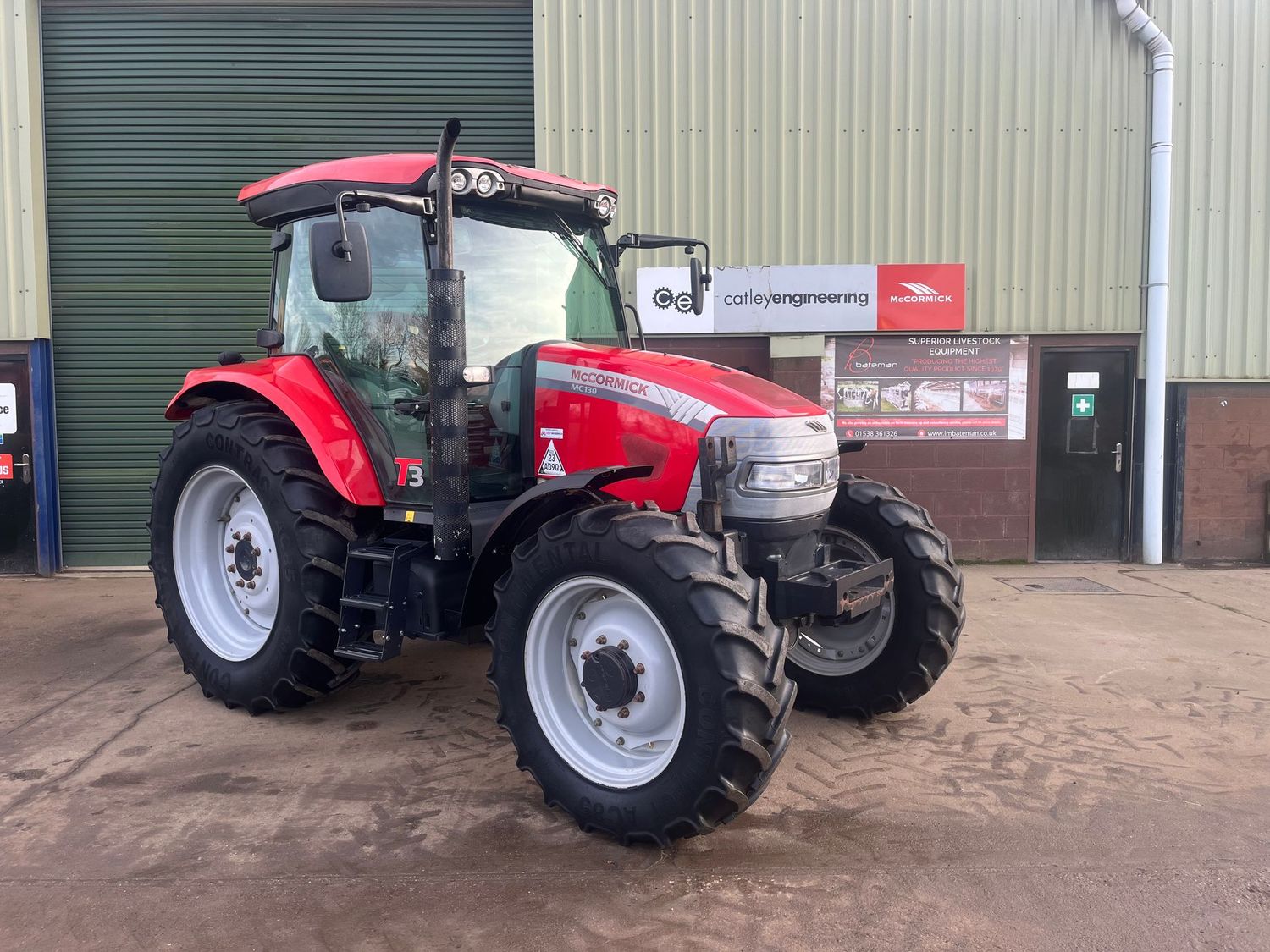

McCormick Intl MC130
McCormick Intl MC130 — MC Series · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Weight
4844 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick Intl (a part of Argo)Reference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Final driveselectro-hydraulic rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank196.1 LReference
Engine92.5 kWReference
Perkins 1104D-44TAReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
EmissionsTier 3Reference
Power92.5 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed four-speed power shiftReference
Typefour-speed power shiftReference
Gears16 forward and 12 reverseReference
Four power shift gears in four ranges with power shuttle. Optional AutoSpeed offers push-button shifting and programmable gear selection.Reference
PTO & Hydraulics
PTO (claimed)75.5 kWReference
Typeclosed centerReference
Valves2 or 3Reference
Pump flow109.0 lpmReference
Rear TypeIIINReference
Rear lift5870 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase251 cmReference
Weight4844 kgReference
Front tire380/85R28Reference
Rear tire460/85R38Reference
Standard tires (ag)Front: 380/85R28. Rear: 460/85R38Reference
Length442 cmReference
Width230 cmReference
Height (cab)278 cmReference
Height (cab)259 cmReference
Shipping weight4844 kgReference
Clearance (drawbar)38 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
