Tractor · 2004Unverified

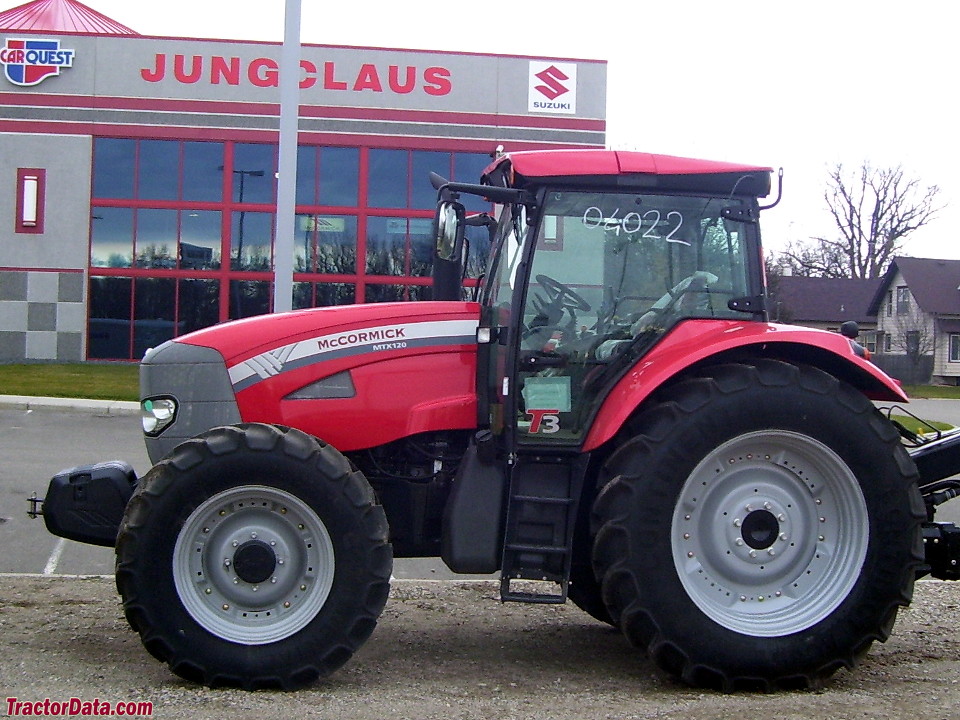

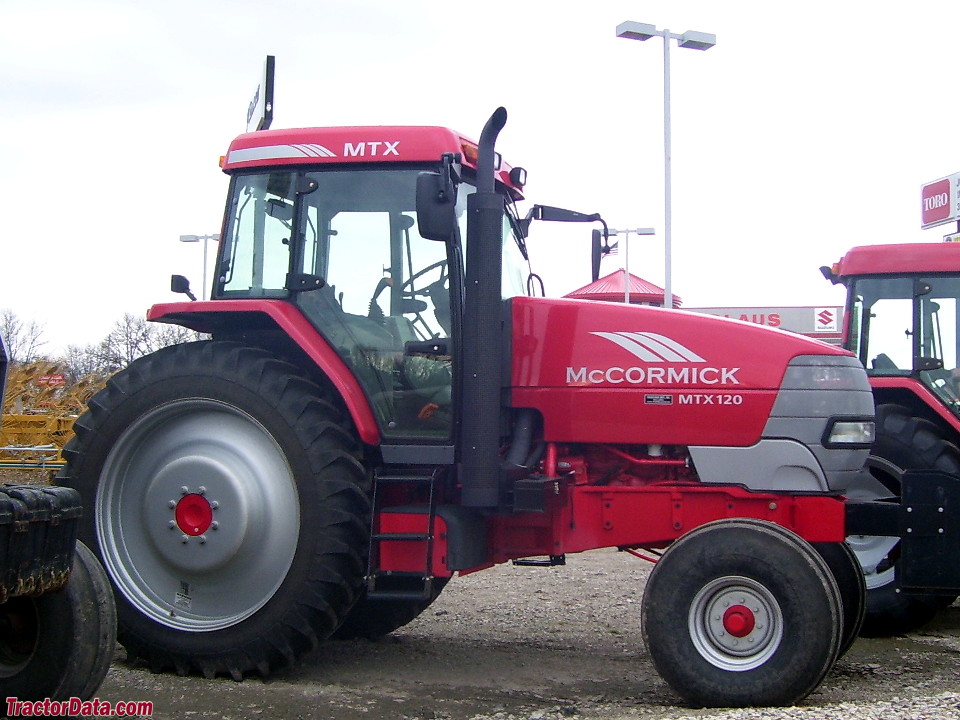

McCormick Intl MTX120
McCormick Intl MTX120 — MTX Series · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Max power
79.2 kW
Weight
5900 kg
Hover a source tag to verify
Overview
ManufacturerMcCormick IntlReference
Row-Crop tractorReference
Built in Doncaster, EnglandReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Iveco 6.8L 6-cyl dieselReference
Engine88.0 kWReference
Drawbar (tested)64.7 kWReference
IvecoReference
turbocharged dieselReference
6-cylinder 12-valveReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke104 x 132 mmReference
Power88.0 kWReference
Fuel systemmechanical injectionReference
Air cleanerdual dry elementReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque520.2 NmReference
Torque RPM1400Reference
Starter volts12Reference
Coolant capacity28.5 LReference
Oil capacity16.0 LReference
Max power79.2 kWReference
Power at rated engine speed75.2 kWReference
Max power64.7 kWReference
Transmission
16-speed power shiftReference
32-speedReference
Typepower shiftReference
Gears16 forward and 12 reverseReference
Oil capacity75.0 LReference
Gears32 forward and 24 reverseReference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
PTO (tested)79.2 kWReference
Hydraulic system74.9 LReference
Typepressure flow compensatingReference
Capacity74.9 LReference
Pump flow109.0 lpmReference
Rear TypeIIINReference
Controlelectronic lower link draft sensingReference
Rear lift5871 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Capacities
Fuel264.9 LReference
Front hubs0.6 LReference
Front hubs1.4 LReference
Front hubs1.9 LReference
Front diff.6.0 LReference
Front diff.2.1 LReference
Dimensions
Wheelbase272 cmReference
Weight5900 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length516 cmReference
Operating weight5900 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging amps120Reference
Battery volts12Reference
Test results
Diesel 16-speed 4WDSeptember 8 - 16, 2005Link: OCED Tractor Test 1856 fileReference
PTO performanceReference
Fuel use22.7 l/hourReference
Fuel use23.5 l/hourReference
Drawbar performanceReference
Max pull5847 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
