Tractor · 1981Unverified

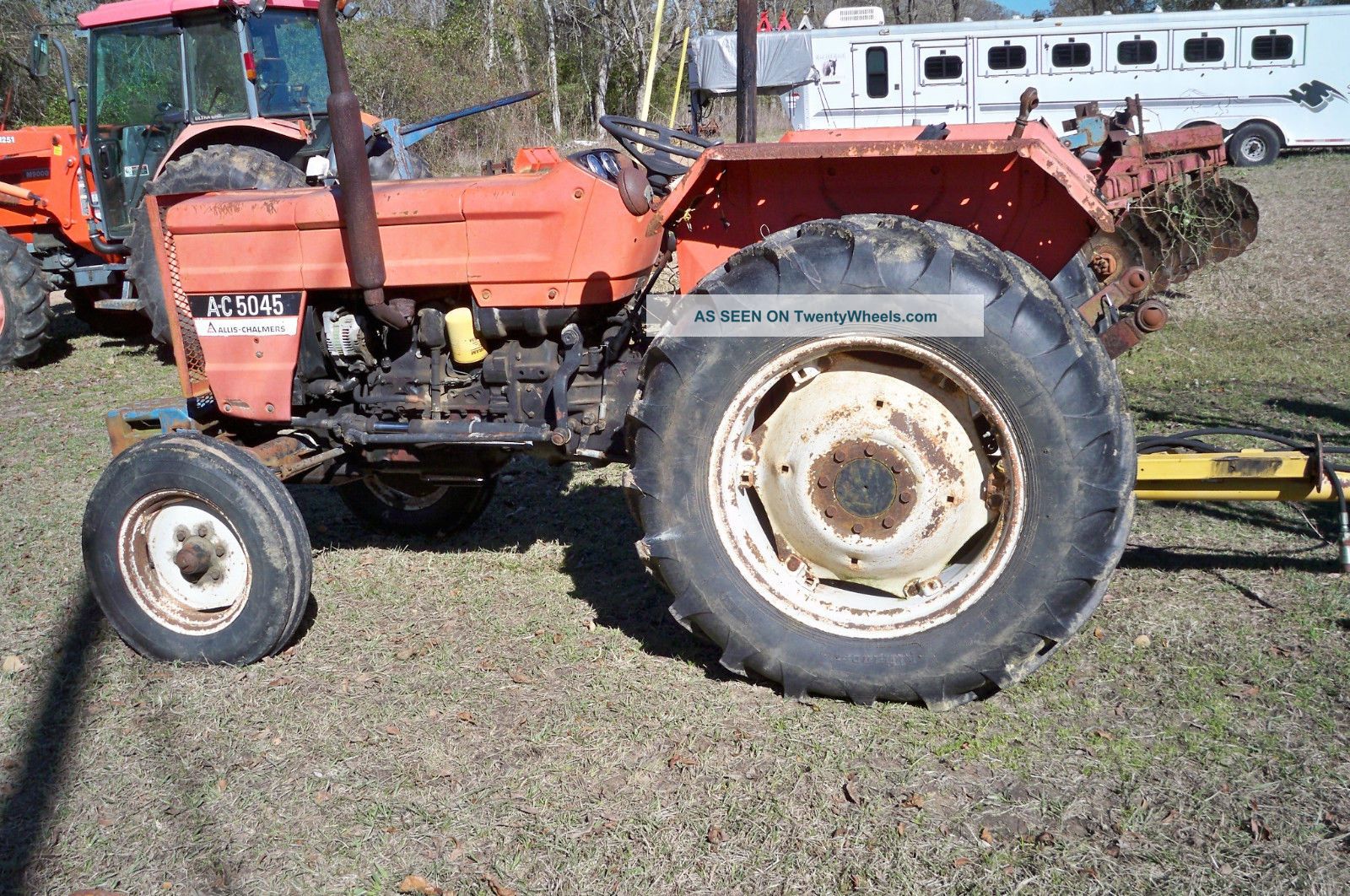

Allis Chalmers 5045
Allis Chalmers 5045 — Utility tractor · 44 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Weight
1746 kg
Hover a source tag to verify
Overview
DistributorAllis ChalmersReference
ManufacturerFiatReference
Utility tractorReference
Built in ItalyReference
Original price$12,558Reference
Two-wheel driveReference
Power steeringReference
Open operator station. ROPS optional.Reference
Engine
Fiat 2.6L 3-cyl dieselReference
FiatReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Starter volts12Reference
Coolant capacity13.5 LReference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Clutchmechanical dry discReference
Four gears, plus reverse, in two ranges. Top two gears (3/4 and 7/8) are synchronized.Reference
PTO & Hydraulics
PTO (claimed)32.8 kWReference
Hydraulic system23.6 LReference
Capacity23.6 LReference
Valves14Reference
Pump flow3.8 lpmReference
Rear TypeII/IReference
Controlposition control and top-link draft sensingReference
Rear lift0 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase191 cmReference
Weight1746 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
5045 Serial Numbers
Location:Serial number plate below the steering wheel.Reference
1981988501Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
