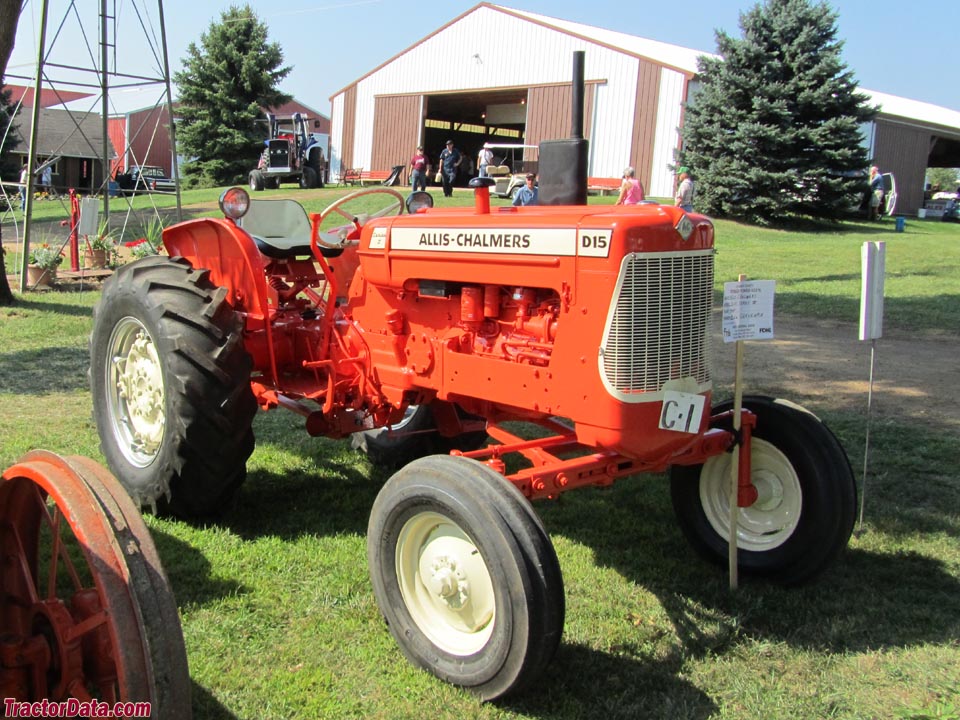

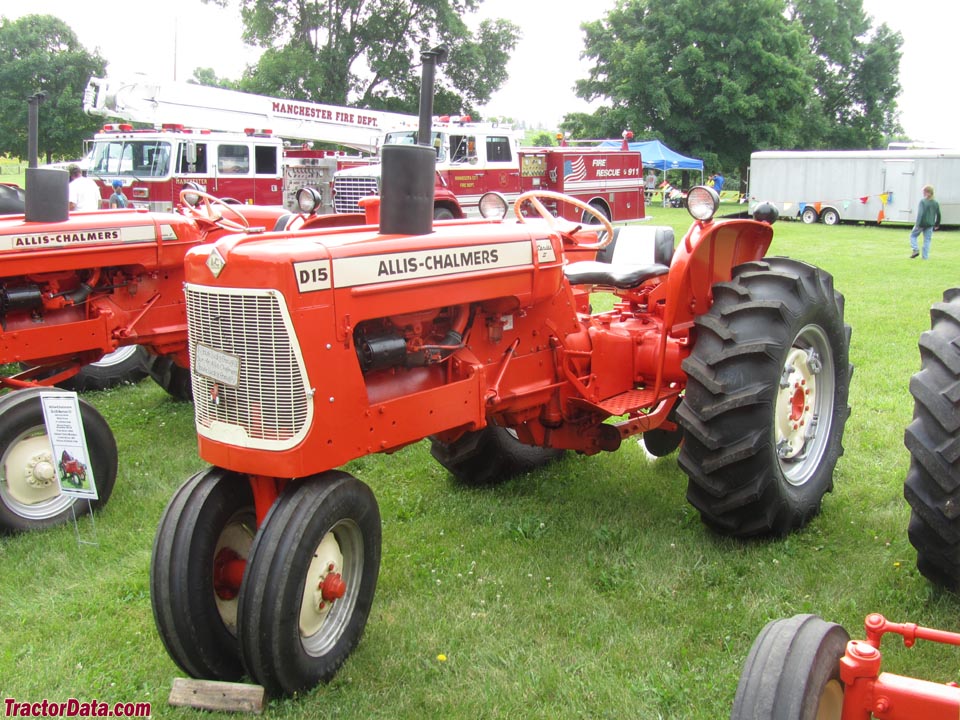

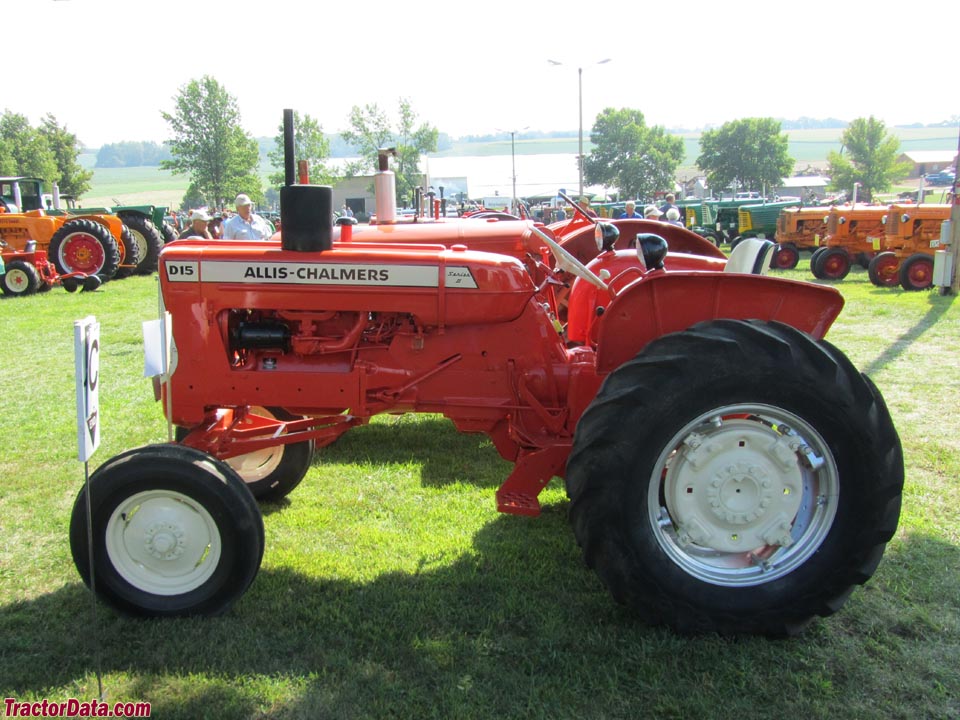

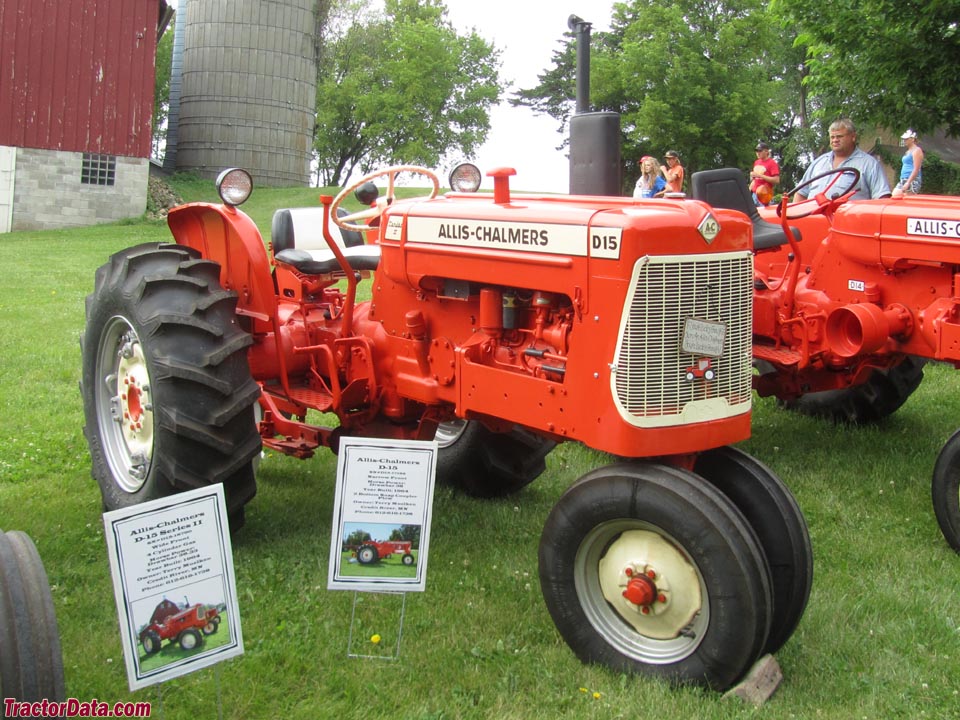

Allis Chalmers D15 Series II
Allis Chalmers D15 Series II — Model year 1960-19631963-1968 · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Max power
28.6 kW
Weight
4025 to 4525 pounds
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built12,356Reference
Original price was $4,400 in 1967Reference
The Allis-Chalmers D15 Series II replaced the D15 for 1963. The D15 Series II featured gas and LPG engines that were bored 0.125 inch larger, while the diesel engine remained the same. Headlights were moved from the hood to the larger rear fenders, an oval muffler was added, and the air filters were changed from oil bath to a dry type. The D15 Series II is identifiable by the full-length white hood decals with the model number at the front.Reference
Two-wheel driveReference
Steeringpower optionalReference
Expanding shoe brakesReference
Open operator station.Reference
Engine
Allis Chalmers 2.6L 4-cyl gasolineReference
Allis Chalmers 2.6L 4-cyl LP gasReference
Allis Chalmers 2.9L 4-cyl dieselReference
Drawbar (tested)28.6 kWReference
Allis Chalmers Power CraterReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke92 x 98 mmReference
Fuel use14.3 l/hourReference
Air cleanerpaper element with pre-cleanerReference
Compression8.0:1Reference
Rated RPM2000Reference
Firing order1-2-4-3Reference
Starter volts12Reference
Coolant capacity9.5 LReference
SparkplugAC C-45Reference
SparkplugChampion J-7Reference
SparkplugAuto-Lite A-5Reference
Sparkplug gap0.635 mmReference
Point gap0.559 mmReference
Intake valve clearance0.203 mmReference
Exhaust valve clearance0.356 mmReference
Oil capacity3.8 LReference
LP gasReference
Fuel use15.8 l/hourReference
Compression9:1Reference
Allis Chalmers D-175Reference
dieselReference
The diesel engine in the D15 Series II was largely unchanged from the original D15 diesel.Reference
Displacement2.9 LReference
Bore/Stroke90 x 111 mmReference
Fuel use10.9 l/hourReference
Compression15.5:1Reference
Firing order1-3-4-2Reference
Coolant capacity11.4 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.483 mmReference
Oil capacity4.7 LReference
Power at rated engine speed34.4 kWReference
Max power28.6 kWReference
Power at rated engine speed32.5 kWReference
Max power26.9 kWReference
Transmission
8-speed partial power shiftReference
4-speedReference
TransmissionPower DirectorReference
Typepartial power shiftReference
Gears8 forward and 2 reverseReference
Oil capacity14.0 LReference
Oil typeSAE80EPReference
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.Reference
TransmissionshuttleReference
Gears4 forward and reverseReference
The shuttle transmission is controlled using the gear shift lever and the shuttle control lever. The tractor must be stopped, and clutch used, to select one of four speeds with the gear shift. The shuttle control lever enables a shift between forward, reverse, or neutral without clutching. A PTO could be ordered on the industrial D15 with the shuttle, but it ran at 875 RPMs.Reference
PTO & Hydraulics
PTO (tested)34.4 kWReference
Hydraulic system9.5 LReference
Capacity9.5 LReference
Pressure158.6 barReference
Valves0 to 3Reference
Rear TypeII/IReference
TypeSnap-CouplerReference
Power at rated PTO speed31.6 kWReference
Power at rated PTO speed29.6 kWReference
Capacities
Fuel60.6 LReference
Fuel59.6 LReference
Diameter22 cmReference
Width16 cmReference
RPM1678Reference
Speed1205.79 meters/minReference
Dimensions
Weight4025 to 4525 poundsReference
Front tire5.50x16Reference
Rear tire12.4x26Reference
Ag front5.50x16Reference
Ag front6.50x16Reference
Ag rear12.4x26Reference
Ag rear13.6x26Reference
Ag rear14.9x26Reference
Length330 cmReference
Width170 cmReference
Height (hood)145 cmReference
Height (exhaust)203 cmReference
Clearance (front axle)53 cmReference
Clearance (rear axle)62 cmReference
Front tread129 to 198 cmReference
Rear tread137 to 203 cmReference
Rear tread137 to 223 cmReference
Shipping1916 kgReference
Shipping2023 kgReference
Shipping2052 kgReference
Operating1825 kgReference
Operating1855 kgReference
Ballasted3676 kgReference
D15 Series II Serial Number Location
Serial number on the left side of the Allis-Chalmers D15, stamped into the flange where the engine and transmission meet.Reference
D15 Series II Serial Numbers
196313001Reference
196416928Reference
196519681Reference
196621375Reference
196723734Reference
196825127Reference
Final25419Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Batteries1 (gas/LP)Reference
Batteries2 (diesel)Reference
Battery volts12Reference
Battery AH70Reference
Test results
NTTL 837: gasoline 8-speed 2WDReference
NTTL 838: LP gas 8-speed 2WDReference
Gasoline 8-speed 2WDApril 30 - May 13, 1963Link: Nebraska Tractor Test 837 fileReference
PTO performanceReference
Fuel use14.4 l/hourReference
Fuel use13.2 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull2792 kgReference
Gear 1 used for pull test.Reference
LP gas 8-speed 2WDApril 30 - May 14, 1963Link: Nebraska Tractor Test 838 fileReference
Fuel use17.4 l/hourReference
Fuel use15.9 l/hourReference
Fuel use16.7 l/hourReference
Max pull2924 kgReference
Speeds
With 12.4-26 rear tires.Reference
