Tractor · 2018Unverified

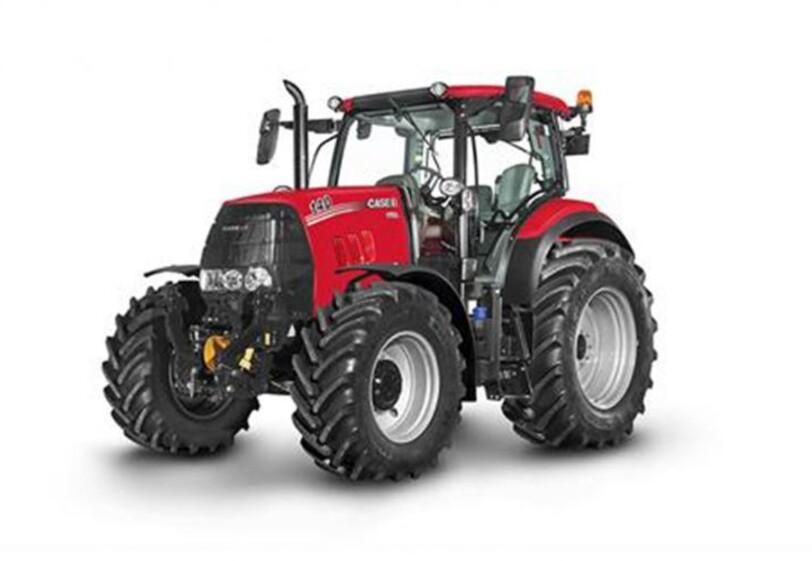

CaseIH Puma 165 X
CaseIH Puma 165 X — Puma Series · 165 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Hover a source tag to verify
Overview
ManufacturerCaseIHReference
Row-Crop tractorReference
Built in St. Valentin, AustriaReference
Four-wheel driveReference
Differential lockrear standardReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Engine
FPT 6.7L 6-cyl dieselReference
Fuel tank330.1 LReference
Exhaust fluid (DEF)48.1 LReference
Engine (gross)123.0 kWReference
Engine (max)134.2 kWReference
FPTReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsStage IVReference
Rated Power (gross)123.0 kWReference
Maximum Power (gross)134.2 kWReference
Rated RPM2200Reference
Torque770.2 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
19-speed partial power shiftReference
Typepartial power shiftReference
Gears19 forward and 6 reverseReference
PTO & Hydraulics
Typepressure flow compensatedReference
Pressure210.0 barReference
Rear valves4Reference
Mid valves3Reference
Pump flow110.1 lpmReference
Rear TypeIII/IIReference
Controlelectronic draft controlReference
Rear lift (at 24"/610mm)6616 kgReference
Front lift3571 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000 (1.375)Reference
Rear PTO Type540/1000/1000E (1.375)Reference
Engine RPM540@1969Reference
Engine RPM540E@1546Reference
Engine RPM1000@1893Reference
Engine RPM1000E@1621Reference
Front PTO Type1000Reference
Engine RPM1000@1895Reference
Dimensions
Front tire420/85R28Reference
Rear tire520/85R28Reference
Standard tires (ag)Front: 420/85R28. Rear: 520/85R28Reference
Flange rear axleReference
Bar rear axle2489 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps200Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
