Tractor · 2005Unverified

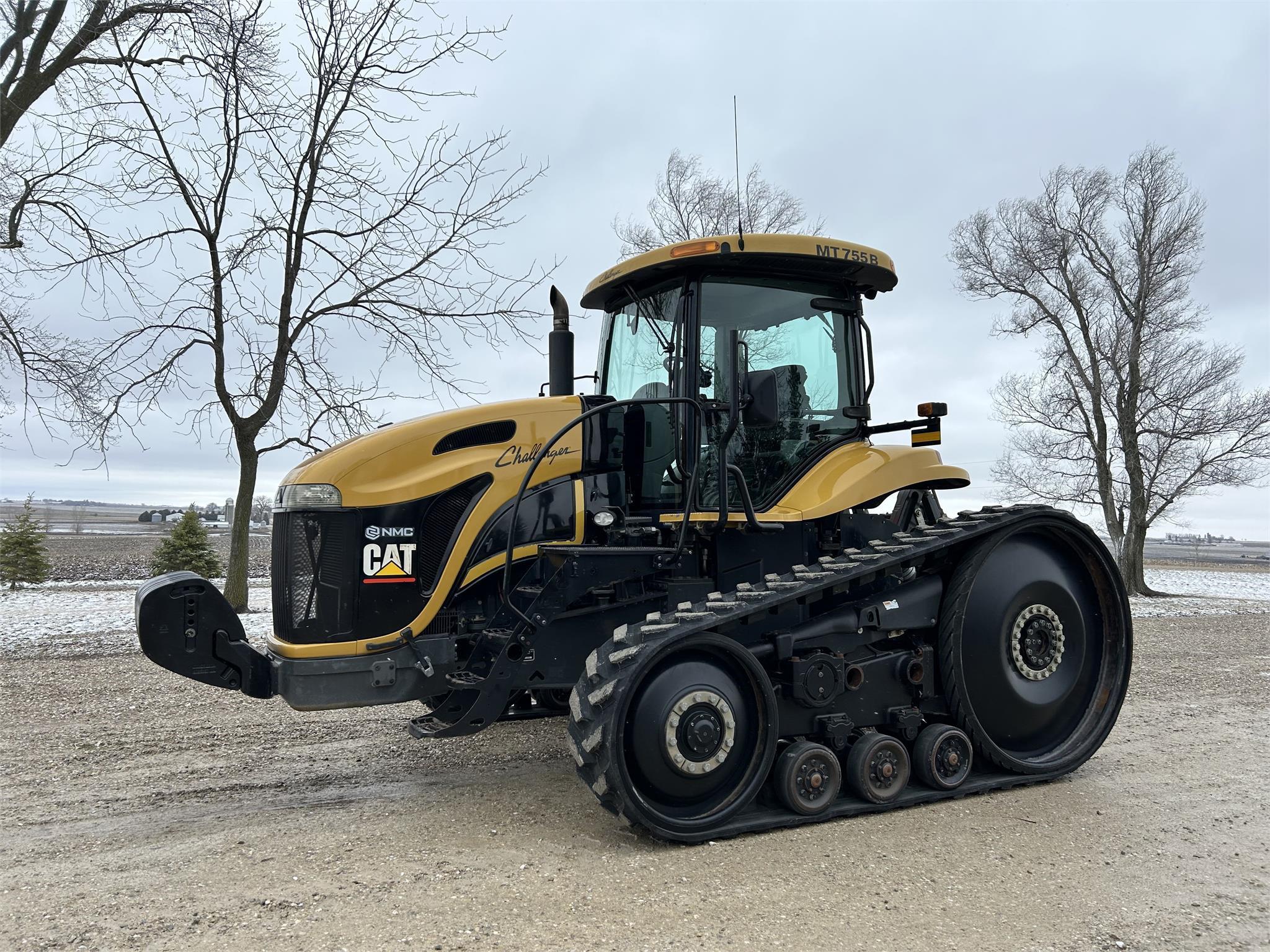

Challenger MT755B
Challenger MT755B — MT700B Series · 301 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
301 hp
Max power
235.6 kW
Weight
14095 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Agricultural Crawler tractorReference
Built in Jackson, Minnesota, USAReference
DrivecrawlerReference
Steeringelectro-hydraulic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 8.8L 6-cyl dieselReference
Fuel tank446.6 LReference
Fuel tank673.7 LReference
Fuel tank787.3 LReference
Engine (gross)224.5 kWReference
Drawbar (tested)159.3 kWReference
CaterpillarReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement8.8 LReference
Bore/Stroke112 x 149 mmReference
Power (gross)224.5 kWReference
Air cleanerdual paper elementsReference
Compression17.1:1Reference
Rated RPM2100Reference
Torque1406.2 NmReference
Torque RPM1201Reference
Starter volts12Reference
Max power235.6 kWReference
Power at rated engine speed183.2 kWReference
Max power159.3 kWReference
Transmission
16-speed full power shiftReference
TransmissionCat PowerShiftReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)182.7 kWReference
PTO (tested)235.6 kWReference
Typeclosed-center PFCReference
Pressure200.0 barReference
Rear valves4 to 6Reference
Pump flow164.6 lpmReference
Rear TypeIIIN/IIIReference
Rear lift7257 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed207.0 kWReference
Dimensions
Wheelbase243 cmReference
Weight14095 kgReference
16-inch tracksReference
Length591 cmReference
Width337 cmReference
Height (cab)344 cmReference
Shipping weight14095 kgReference
Ground clearance36 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps185Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Challenger MT755B Tracks
Width40 cmReference
Width45 cmReference
Width50 cmReference
Width63 cmReference
Width76 cmReference
Test results
Diesel 16-speed crawlerOctober 25 - November 2, 2005Link: OCED Tractor Test 1859 fileReference
PTO performanceReference
Fuel use65.5 l/hourReference
Fuel use54.9 l/hourReference
Fuel use60.2 l/hourReference
Drawbar performanceReference
Fuel use54.5 l/hourReference
Gear 6 used for power test.Reference
Max pull13729 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
