Tractor · 1963Unverified

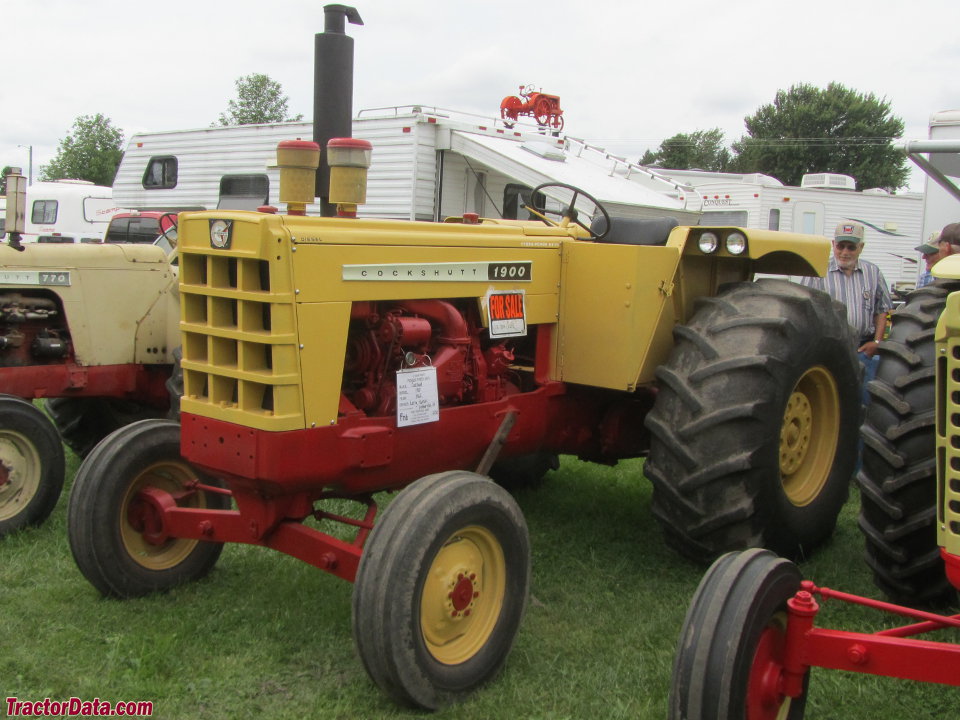

Cockshutt 1900
Cockshutt 1900 — Row-Crop tractor · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Max power
66.6 kW
Weight
5443 kg
Hover a source tag to verify
Overview
ManufacturerCockshuttReference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Original price was $9,000 in 1964Reference
Two- or four-wheel driveReference
SteeringmanualReference
Steeringpower (late)Reference
Differential dry disc brakesReference
Open operator station.Reference
Engine
General Motors 3.5L 4-cyl dieselReference
Drawbar (tested)65.8 kWReference
General Motors 4-53Reference
blower dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke98 x 114 mmReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2000Reference
Starter volts12Reference
Oil capacity13.7 LReference
Coolant capacity19.9 LReference
Series B engine, used from 1962 to 1964.Reference
Displacement3.5 LReference
Compression21:1Reference
Rated RPM2200Reference
Max power66.6 kWReference
Max power61.8 kWReference
Power at rated engine speed73.5 kWReference
Max power63.0 kWReference
Power at rated engine speed75.0 kWReference
Max power65.8 kWReference
Transmission
6-speed unsynchronized gearReference
12-speed partial power shiftReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
TransmissionHydra-PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (tested)75.0 kWReference
Hydraulic system18.9 LReference
Capacity18.9 LReference
Pump flow49.2 lpmReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Engine RPM1000@2000Reference
Capacities
Fuel119.2 LReference
Dimensions
Wheelbase247 cmReference
Weight5443 kgReference
Front tire7.50-18Reference
Rear tire18-26Reference
Ag front7.50-18Reference
Ag rear18-26Reference
Ag rear15-34Reference
Length397 cmReference
Width246 cmReference
Height (steering wheel)193 cmReference
Operating weight5443 kgReference
Ballasted weight8325 kgReference
Ground clearance60 cmReference
Front tread176 cmReference
Rear tread187/208 cmReference
1900 Serial Numbers
Location:Serial plate on instrument panel.Reference
196090-532 (A)Reference
1961111-028 (A)Reference
1962118-356 (A)Reference
1962124-396 (B)Reference
1963128-422 (B)Reference
1963138-440 (C)Reference
1964141-168 (C)Reference
Final148-651 (C)Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 768: diesel 6-speed 2WDReference
NTTL 824: Series B diesel 12-speed 2WDReference
NTTL 847: Series B diesel 12-speed 4WDReference
Diesel 6-speed 2WDOctober 3 - 8, 1960Link: Nebraska Tractor Test 768 fileReference
PTO performanceReference
Fuel use23.5 l/hourReference
Drawbar performanceReference
Fuel use24.2 l/hourReference
Gear 4 used for power test.Reference
Max pull5658 kgReference
Gear 1 used for pull test.Reference
Series B diesel 12-speed 2WDSeptember 17 - 23, 1962Link: Nebraska Tractor Test 824 fileReference
Fuel use25.0 l/hourReference
Fuel use24.6 l/hourReference
Gear 4-Direct used for power test.Reference
Max pull6110 kgReference
Gear 2-Hydra-Power used for pull test.Reference
Series B diesel 12-speed 4WDSeptember 13 - 20, 1963Link: Nebraska Tractor Test 847 fileReference
Fuel use28.4 l/hourReference
Fuel use27.3 l/hourReference
Max pull7707 kgReference
Gear 1-Direct used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
