Tractor · 2014Unverified

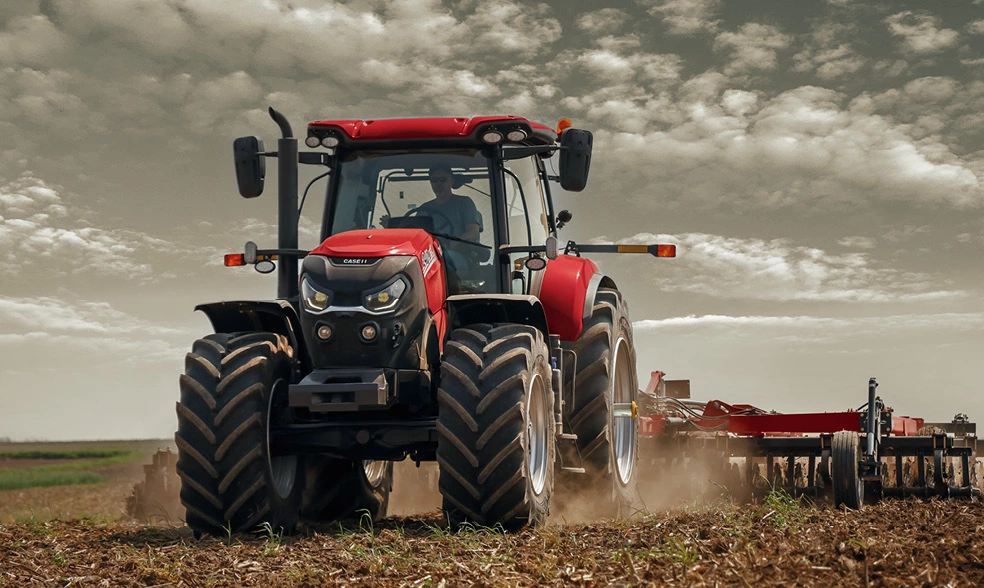

CaseIH Puma 240

Name: CaseIH Puma 240
Brand: CaseIH

CaseIH Puma 240 — Model year 2014-20202021-2025 · 212 hp. Reference specifications; pending source verification.

The CaseIH Puma 240 is a tractor model rated at 212 hp, classifying it among the higher-powered machines in its class. Manufactured from 2014 to 2025, it features a 6-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a continuously variable transmission. The listed weight of the Puma 240 is 7620 kg, with an indicated application range of approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

212 hp

Max power

170.5 kW

Weight

7620 kg

Catalogue coverage

Variants represented

Richest spec table

74 rows

Recorded power

212 hp

Recorded weight

7620 kg

Transmissions

18-speed full power shift

Production years

2014-2025

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCaseIHReference

Row-Crop tractorReference

Built in Basildon, EnglandReference

Original price was $216,959 in 2015Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard with air-conditioning.Reference

Engine

FPT 6.7L 6-cyl dieselReference

Fuel tank389.9 LReference

Exhaust fluid (DEF)48.1 LReference

Engine179.0 kWReference

Drawbar (tested)129.2 kWReference

FPTReference

turbocharged with air-to-air aftercooling dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier 4Reference

Emission controlselective catalytic reduction (SCR)Reference

Power179.0 kWReference

Maximum Power201.3 kWReference

Fuel systemelectronic common railReference

Cooling systemviscous fanReference

Cooling systemreversibleReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Max power170.5 kWReference

Power at rated engine speed157.7 kWReference

Max power129.2 kWReference

Transmission

18-speed full power shiftReference

continuously variable transmission (CVT)Reference

Typefull power shiftReference

Gears18 forward and 6 reverseReference

Typecontinuously variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)152.9 kWReference

PTO (tested)170.5 kWReference

Typeclosed center pressure flow compensatingReference

Valves3 to 5Reference

Pump flow113.6 lpmReference

Pump flow149.9 lpmReference

Total flow177.9 lpmReference

Total flow214.2 lpmReference

Steering flow64.3 lpmReference

Rear TypeII/IIINReference

Rear lift5800 kgReference

Rear lift6804 kgReference

Rear PTOindependentReference

Rear PTO Type1000/1000E (1.75)Reference

Power at rated PTO speed169.8 kWReference

Dimensions

Wheelbase288 cmReference

Weight7620 kgReference

Front tire420/85R30Reference

Rear tire520/85R42Reference

Standard tires (ag)Front: 420/85R30. Rear: 520/85R42Reference

Max weight13000 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps150Reference

Battery volts12Reference

Test results

Diesel CVT 4WDJuly 2015 - October 2016, Link: OCED Tractor Test 2954 fileReference

PTO performanceReference

Fuel use47.3 l/hourReference

Fuel use45.8 l/hourReference

Fuel use46.9 l/hourReference

Drawbar performanceReference

Pull at 10.0 KPHReference

Max pull8201 kgReference

Pull at 7.5 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
